Reiner ChronoDater 920 User Manual

Hide thumbs Also See for ChronoDater 920:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
ChronoDater 920/922/925
B
C
9

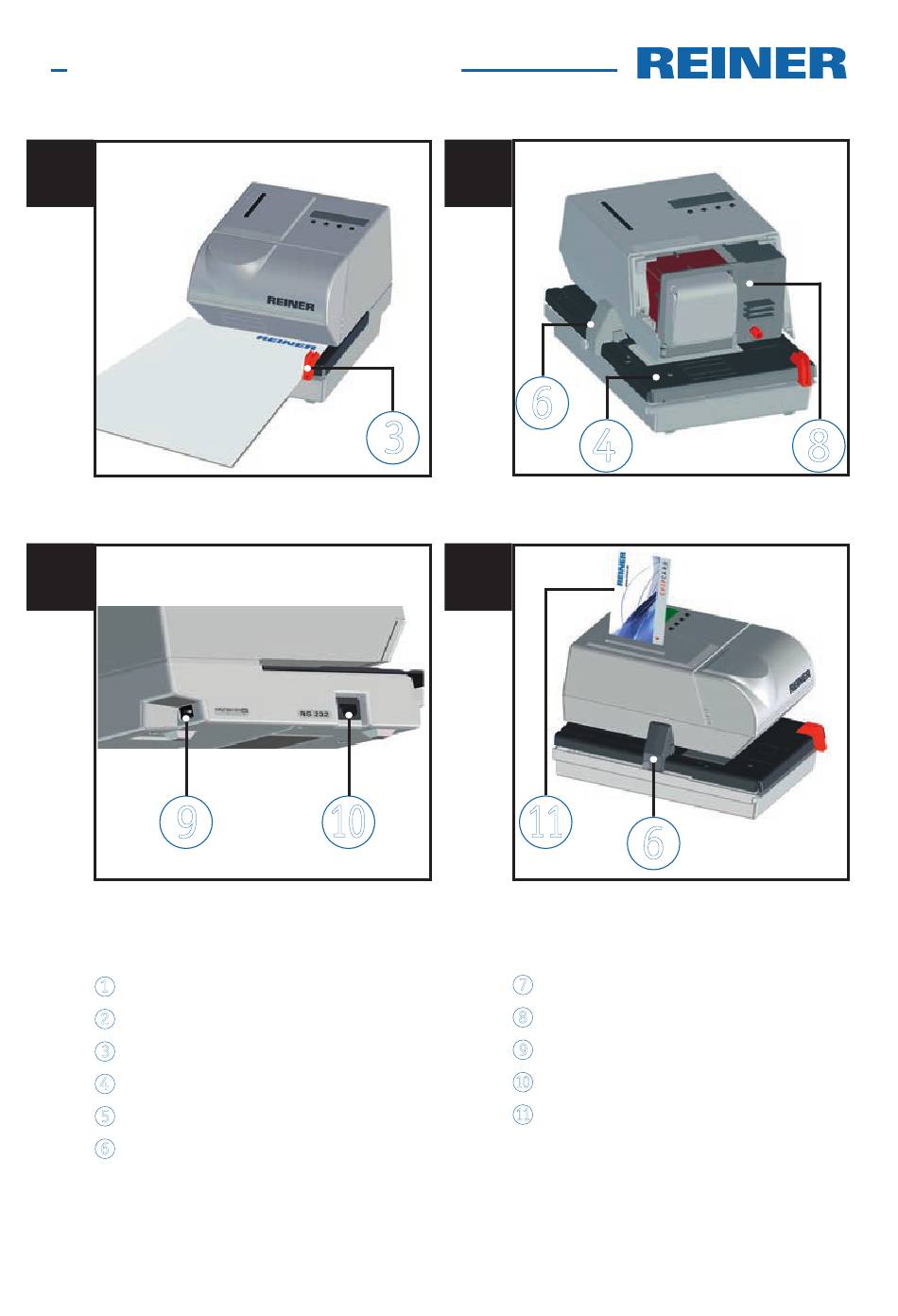

Operating elements
1
Display
2
Housing flap
3
Paper stop
4
Trigger table
5
Position marks
6
Trip switch
26
D
3
E
10
6
4
11
6
7
Chipcard reader
8
Ribbon cassette
9
Connection socket for mains adapter
10
RS-232 interface
11
ChipCard
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ChronoDater 920 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reiner ChronoDater 920

Summary of Contents for Reiner ChronoDater 920

  • Page 1 ChronoDater 920/922/925 Operating elements Chipcard reader Display Ribbon cassette Housing flap Connection socket for mains adapter Paper stop RS-232 interface Trigger table ChipCard Position marks Trip switch...

  • Page 2: Display And Button Functions

    ChronoDater 920/922/925 Display and Button functions Depending on model, your ChronoDater will have different setting options. The display is structured according to the following zones. - Model indication. - Texts, date, time and/or numbering set. - Menu bar with menu items and commands.

  • Page 3: Table Of Contents

    Display and Button functions .................27 Important Notes ....................30 Model Versions .....................30 Your Safety Safety, Description ....................31 Safety Notes for the ChronoDater 920/922/925............32 1. Prepare and Commission 1.1. Commissioning, Ribbon Cassette ..............33 1.2. Attaching the Paper Stop ................33 1.3. Adjusting Trip Switch ................33 1.4.
  • Page 4 ChronoDater 920/922/925 3. Recognising and Removing Interferences ............43 4. Technical Data and Accessories 4.1. Type Plate ....................44 4.2. Technical Data ..................45 4.3. Accessories ....................46 4.4. Transport and Disposal ................46 5. Contact ......................47 6. Index ......................48...

  • Page 5: Important Notes

    ChronoDater 920/922/925 Important Notes Before commissioning of the ChronoDater, always read the operating instructions and in particular the safety notes with care. This prevents mistakes in handling of the electric stamps and connected safety risks to keep you safe and avoid damage to the device.

  • Page 6: Your Safety Safety, Description

    Warnings of dangers that may lead to injury if not observed. NOTICE Warnings of dangers that may lead to property damage if not observed. You are asked to perform actions here. Notes and advice to make handling your ChronoDater 920/922/925 even easier.

  • Page 7: Safety Notes For The Chronodater 920/922/925

    ChronoDater 920/922/925 Safety Notes for the ChronoDater 920/922/925 WARNING Danger of fire from incorrect mains voltage. Check that the local mains voltage matches the voltage indicated on the mains adapter. CAUTION Danger of electric shock when objects like paperclips or liquids fall into the device inside.

  • Page 8: Prepare And Commission

    ChronoDater 920/922/925 1. Prepare and Commission 1.1. Commissioning, Ribbon Cassette Inserting ribbon cassette  Fig. Avoid skin contact with ribbon. Swivel housing flap upwards and remove it. Remove ribbon cassette from the packaging. Push ribbon cassette over the metal cover until it is flush.

  • Page 9: Connecting Power Supply

    ChronoDater 920/922/925 1.4. Connecting Power Supply Connecting power supply Fig.  Use only genuine REINER accessories. WARNING Danger of fire from incorrect mains voltage. Check that the local mains voltage matches the voltage indicated on the mains adapter. NOTICE Incorrect order when connection to the mains may cause damage.

  • Page 10: Print

    ChronoDater 920/922/925 1.8. Print The trigger table and the housing flap have marks attached that indicate correct positioning of the print media. The print action is activated by tripping the trip switch with the print medium or light pressure on the trigger table NOTICE Damage of the print plate or print wheels.

  • Page 11: Menu

    ChronoDater 920/922/925 2. Menu 2.1. Selecting Language Setting the language of the display. Push [MENU]. "Date / Clock time" appears. Push [u]. "Language Menu" appears. Push [SELECT]. The language that is set flashes. Adjust the desired language via the buttons [t] or [u] and confirm the input with [OK].

  • Page 12: Setting Summer Time

    ChronoDater 920/922/925 Select the menu "Date" with the button [u]. "Date" appears. Push [SELECT]. The day display flashes. Adjust the correct day via the buttons [t] or [u] and confirm the input with [OK]. Continue setting the month and year.

  • Page 13: Trigger

    ChronoDater 920/922/925 Setting "On" is only possible with the Chipcard inserted correctly. Confirm the desired setting with [OK]. To save the setting and return to the main menu, push [RETURN] twice. The main menu appears. When using the Chipcard function, we recommend activating the password function.

  • Page 14: Stand By Mode

    ChronoDater 920/922/925 2.3.3. Stand By Mode Period after which the device is to switch to standby mode if no activity takes place. Push [MENU]. "Date / Clock time" appears. Push [u] twice. "Settings" appears. Push [SELECT]. "Chipcard" appears. Push [u] twice.
  • Page 15 After confirmation of the fourth digit, the password is displayed. To get to the password menu, push [OK]. To save the setting and return to the main menu, push [RETURN] three times. The main menu appears. If you have forgotten the password you set, contact the REINER Service.

  • Page 16: Display Contrast

    ChronoDater 920/922/925 2.3.5. Display Contrast Push [MENU]. "Date / Clock time" appears. Push [u] twice. "Settings" appears. Push [SELECT]. "Chipcard" appears. Push [u] four times. "Display contrast" appears. Push [SELECT]. Use the buttons [t] or [u] to adjust the contrast of the display.

  • Page 17: Model/Version

    Use the buttons [t] or [u] to switch between "Model", "Serial number" and "Software version". To have the respective data displayed, push [SELECT]. Push [OK]. To return to the main menu, push [RETURN] twice. The main menu appears. 2.5. SF Module Settings for maintenance by REINER Support.

  • Page 18: Recognising And Removing Interferences

    ChronoDater 920/922/925 3. Recognising and Removing Interferences Display Error cause Remedy No display The device is not connected Connect the included to the mains. mains adapter to the ChronoDater and plug the mains adapter into a socket with the matching mains voltage.

  • Page 19: Technical Data And Accessories

    4. Technical Data and Accessories 4.1. Type Plate Check the type plate before the device is connected. The type plate is on the bottom of your ChronoDater 920/922/925. It contains the following information: • The ChronoDater 920/922/925 meets the requirements of the EC directive 2004/108/EC.

  • Page 20: Technical Data

    ChronoDater 920/922/925 4.2. Technical Data Dimensions 210 mm × 160 mm × 138 mm Weight approx. 3.7 Kg Print capacity per ribbon up to 50,000 imprints (without printing plate) Stamping time approx. 0.5 seconds Stamping sequence max. 1 second Batch thickness max.

  • Page 21: Accessories

    ChronoDater 920/922/925 4.3. Accessories Ribbon cassette, sets of 2 Black: Order no.: 738 080 - 000 Red: Order no.: 738 080 - 001 Blue: Order no.: 738 080 - 002 Blind colour (red): Order no.: 738 080 - 011 4.4. Transport and Disposal...

  • Page 22: Contact

    Email: reiner@reiner.de www.reiner.de © 2012 Ernst Reiner GmbH & Co. KG All rights reserved. Translation, reprint and other reproduction of these operating instructions, even in parts and no matter the form, shall require our express written consent. We reserve the right to make content changes to these operating instructions without notice.

  • Page 23: Index

    ChronoDater 920/922/925 6. Index Setting date ........36 Setting time ........36 Accessories ........46 Standby Mode Automatic........39 Manual ........35 Chipcard ........34, 37 Summertime ........37 Cleaning ..........35 Commission ........33 Contact ..........47 Technical Data ........44 Counter ..........41 Dimensions and weight ....45 Geprüfte Sicherheit ......44 Power supply .........45...
