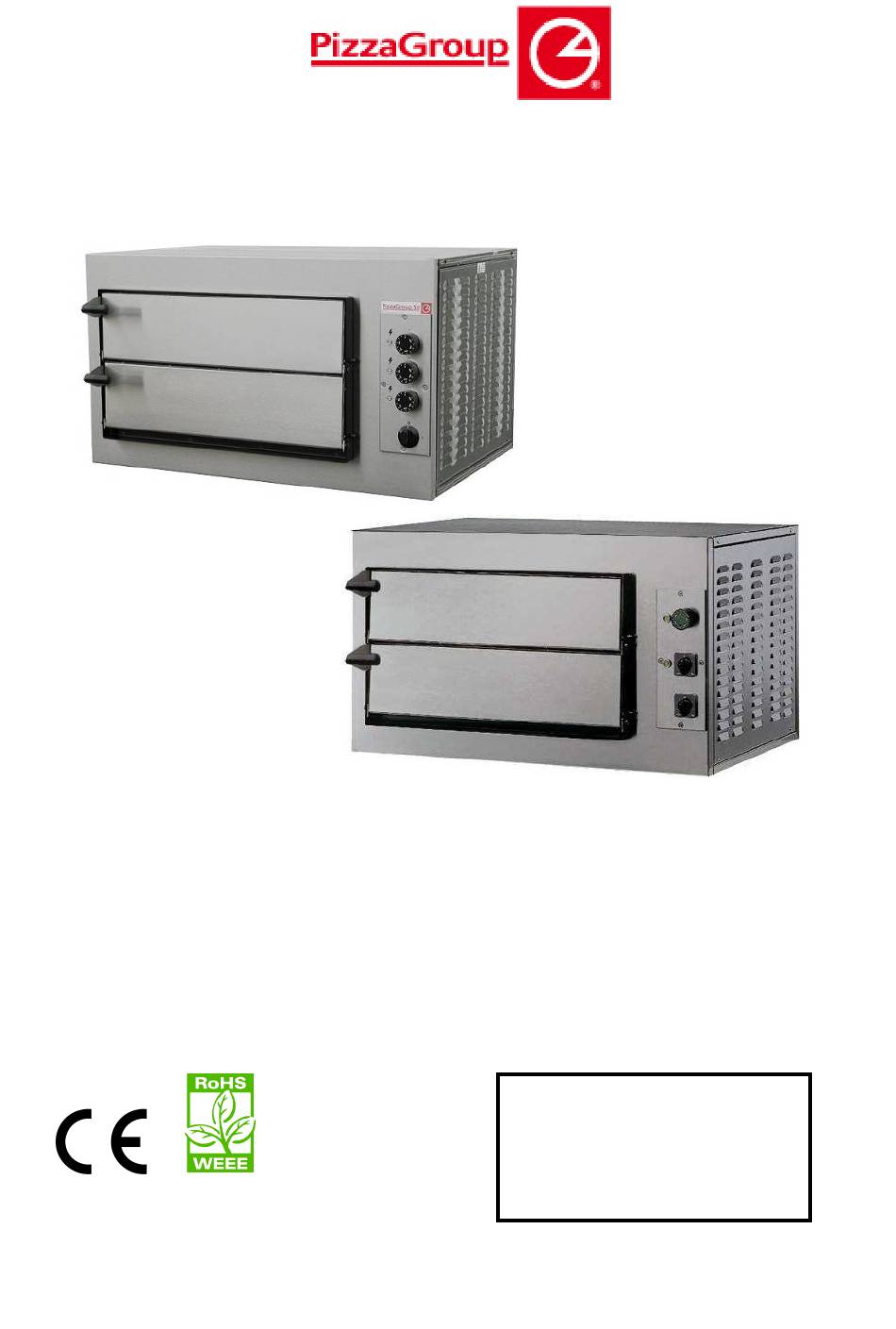

- Page 1 BABY OVENS BABY – BABY 3T Reseller Stamp for Warranty...
- Page 2 The equipment is constructed and tested in accordance with the safety regulations indicated in the reference European directives. This manual is for people who are going to install, use or service the kneading machine so they may get the very best out of it. In the case of questions about the contents or for any other clarification, contact the manufacturer or authorized technical assistance centre, providing the number of the section and topic needing clarification.
-
Page 3: Table Of Contents
INDEX INTRODUCTION SYMBOLS INTENDED USE PURPOSE AND CONTENTS OF MANUAL CONSERVATION OF THIS MANUAL MANUAL UPDATING GENERAL INFORMATION RELEVANT SAFETY AND ACCIDENT PREVENTION REGULATION TO BE ADHERED TO LEGAL WARRANTY MANUFACTURER RESPONSIBILITY 1.10 USER CHARACTERISTICS 1.11 TECHNICAL ASSISTANCE 1.12 SPARE PARTS 1.13 IDENTIFICATION LABEL 1.14... - Page 4 5.2.1 Electrical connection 5.2.1.1 Ground connection OVEN START UP AND USE COMMAND PANNEL DESCRIPTION FIRST LIGHTING OF THE OVEN START UP FASE GENERAL INDICATIONS FOR A GOOD COOKING OUR PIZZA CHEF’ S SUGGESTIONS WORKING PHASE SHUT DOWN PHASE MAINTENANCE AND CLEANING SAFETY PRECAUTIONS ORDINARY MAINTENANCE FOR THE USER 7.2.1...
- Page 5 Dear client, Above all, thank you for choosing our product and we would like to congratulate you on your selection. In order to better use your new oven, please carefully read the information contained in this manual. INTRODUCTION The manufacturer reserves the right to change technical specifications and features and/or functions of the machine at any time without notice.
- Page 6 Purpose: The purpose of this manual is to allow the user to operate the machine in adherence to all regulations and to make use of the necessary materials for correct, safe and enduring use. Contents: This manual contains all the necessary information for installation, use and maintenance of the machine.
-
Page 7: Installation
Information: In the case of exchange of information with the Manufacturer or the Dealer regarding the oven, please refer to the serial number and the identification data of the machine reported on the plate. Responsability: With delivery of this manual, the Manufacturer declines any and all responsibility, both civil and criminal, for accidents deriving from partial or total non-adherence to the specifications contained herein. - Page 8 • Directive 2006/95/CE "Regarding harmonization of legislation of the member States in relation to electrical materials destined for use within certain voltage limits”. • Directive 2004/108/CE “Regarding harmonization of legislation of the member States in relation to electromagnetic compatibility and that repealed by Directive 89/336/CEE”.
- Page 9 authorize only personnel with adequate skills, behavior and proper training to use the oven. Non-adherence to the instructions contained in this manual will cause the warranty to be considered immediately null and void. MANUFACTURER RESPONSIBILITY The manufacturer declines all civil and criminal responsibility, direct or indirect, due to: installation that does not conform to local currently enforced regulations and safety directives;...
-
Page 10: Warnings For The Installer
Do not wait until components are worn out before replacing them. Replacing a worn component before breakage helps to prevent injuries deriving from accidents caused by unexpected component breakage, which could provoke serious damage to persons or things. Execution of periodical maintenance controls as indicated in the chapter "MAINTENANCE AND CLEANING"... -
Page 11: Warnings For The User
WARNING FOR THE USER The conditions in the surrounding area where the machine will be installed must have the following characteristics: the area must be dry; the area must have water and heat sources at an adequate distance; ventilation and lighting must be suitable and comply with the hygiene and safety standards foreseen by current laws;... -
Page 12: Movement And Transport
Before starting any maintenance operations, make sure that the oven, it was used, is cooled down . If any of the safety devices is worn or faulty, the oven is also considered faulty and not to be used. Disconnect electrical power before intervening on electrical or electronic parts and connectors. -
Page 13: Safety Precautions
Responsibility for operations executed in the location where the machine is installed is, and remains, of the user. The user is also responsible for execution of controls related to the installation of the machine. The user must adhere to all local, national and European safety regulations. -
Page 14: Equipment Hook-Up
INSTALLATION Installation must be executed by qualified personnel in compliance with local, national and European regulations. 5.1 OVEN POSITIONING Ensure that the oven is put on a stand with the suitable carrying capacity and that is flat. After unpacking the oven from its packing, position it in prepared location, taking into account the minimum distances (see point 4.2). - Page 15 The oven is not provided with power supply cable. When connecting the appliance electrically, an automatic RCD must be interposed with an opening distance between contacts of at least 3 mm. To connect the appliance electrically it is essential to procede in the following way: •...
- Page 16 It is mandatory that the electrical system is equipped with a ground connection. The appliance must be part of an equipotential system. The connection is done on terminal marked with symbol which you will find near the cable clamp. The section of the equipotential wire must be at least 10mm 2 The equipotential symbol is showed in the following figure.
- Page 17 BABY BABY 3T BABY OVEN (A) Main switch (B) Thermostat for the regulation of top and middle temperatures...
- Page 18 (C) Bottom heating elements swittch (D) Top and middle heating elements function pilot light (E) Bottom heating elements function pilot light BABY 3T OVEN (A) Main switch (E) Thermostat for the regulation of top temperatures (F) Top heating elements function pilot light (G) Thermostat for the regulation of middle temperatures (H) Middle heating elements function pilot light (I) Thermostat for the regulation of bottom temperatures...
- Page 19 - set the main switch in the position “1” after checking that the oven is connected with the power supply - leave the oven working (empty) for at least 8 hours at the temperature of 300° before proceeding to the first baking START UP PHASE After connecting the oven to the electric net rotate the main switch (A) in position “1”.
- Page 20 For an optimal result, and then a good pizza, baking must be carried out at an average temperature of 310° C for 3 minutes. For an easier use and care of the oven, for the best result, we strongly advise to operate as follows: 1) The oven must be switched on (heating phase) at least one hour before the use;...
- Page 21 While working, at any time the oven can be modified in its temperature parameters. Once the oven has reached the set temperature (visible on the display), it is possible to put in the pizza/s for baking, proceeding as follows: • Open the door of the oven by the suitable handles •...
- Page 22 Before performing any maintenance operations, including cleaning, take the following precautions: ensure that the oven is not working end completely cold ensure that the electrical power is not present make certain that the electrical power cannot be accidentally reinserted. Disconnect the plug from the electrical power socket; use individual protection devices in compliance with the directive 89/391/CEE;...
- Page 23 proceed to a first removal of baking fragments from the refractory stones, then take them out by a suitable vacuum cleaner. At the end, clean the refractory stone with an humid cloth . 7.2.2 External cleaning of the oven Oven external areas cleaning, external parts in stainless steel, door glass, and switch panel, must be carried out at cold oven and at disconnected electric power supply.
- Page 24 WORKING ANOMALIES Anomalies Anomalies Anomalies The oven doesn't heat despite the temperatures are Rotate the main switch to correctly set. Instead function pilot lights of the Main switch off (positioned on "0") position "1" heating elements are off The oven doesn't heat despite the main switch is on (position 1) and the temperatures are correctly set.
- Page 25 WARNING: All disassembly operations for demolition must take place with the machine shut-down and disconnected from the electrical power supply. remove all electrical apparatus; separate the accumulators on the electronic cards; dispose of the machine structure through authorized entities; WARNING: Abandoning the machine in accessible areas constitutes grave danger for persons and animals.
- Page 26 USER INFORMATION The equipment falls under application of the European Directives 2002/95/CE, 2002/96/CE, 2003/108/CE which states to never dispose of this product together with normal domestic waste. To prevent any possible damage to the environment or to human health, please keep this product separately from other waste so it can be recycled safely from an environmental point of view.
- Page 27 EXPLODED VIEW...
- Page 30 BABY 3T BABY Model Weight (Kg) Width (mm) Depth (mm) Height (mm) 7500 7500 Total Power (W) 3 F + N + T 3 F + N + T Supply type Electrical supply tension (V) 50/60 50/60 Frequency (Hz) Highest possibile 450°...
- Page 31 20100512_1394010_6...
