Voltek CT200 Installation Instructions

Setting the Roll Time
The AUTO switching time is factory set to 4 seconds. To change the switching time:
Press and hold both the AUTO and MANUAL button for the length of time you wish to set
for the new time. i.e. if you want a switching time of 12 seconds, hold both buttons for 12
seconds.
The LED will illuminate amber while you are changing the switching time and a
bleep will be heard from the TV set once every second.
The maximum switching time that can be set is 30 seconds.
ALARM OUTPUT
In the event of a movement being detected by a Voltek PIR camera the LED on the front of
the unit will change to amber and the alarm output on the rear of the unit provides a negative
trigger.

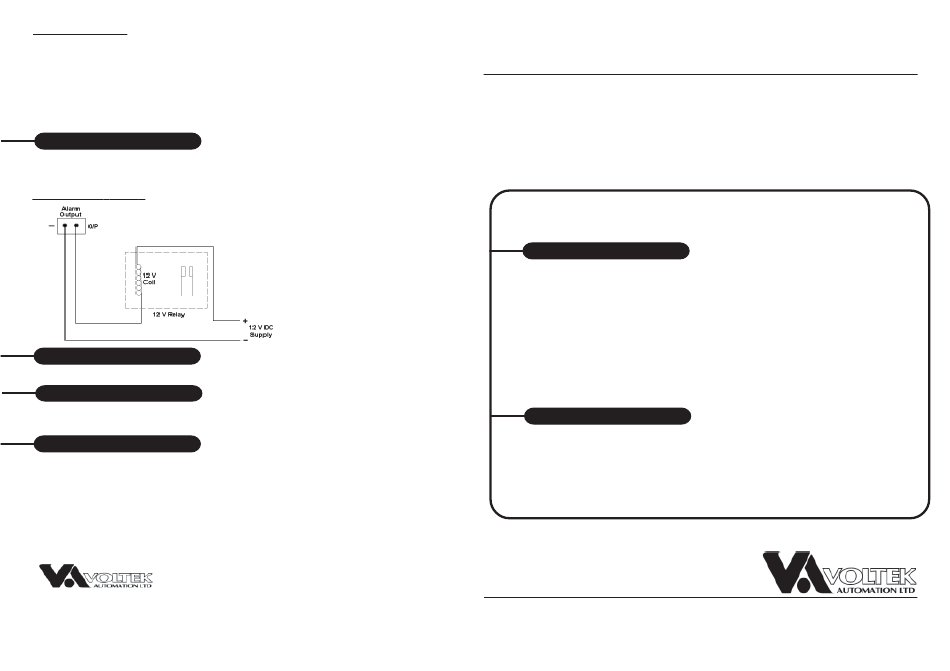

CONNECTING A RELAY
WARRANTY
This product has a 1 year parts and labour warranty.
HELPLINE
Please telephone 09066 191 133* should you have any questions regarding the
use or installation of this product.
SPECIFICATION
12V dc nominal
Operating voltage
Current consumption 20mA
-10ºC - +40ºC
Operating temperature
Alarm Output 0 V trigger max 60mA
IP30 (indoor use only)
Weatherproofing
158mm (W) x 35mm (H) x 129mm (D)
Size (excludes cables)
Total package weight 0.23Kg
180mm (w) x 50mm (H) x 150mm (D)
Carton size
Churchill Way, Lomeshaye Ind Est. Nelson. Lancashire. BB9 6RT
Tel (01282) 695 500 Fax (01282) 695 511 International (+44 1282)
Email: info@voltek.co.uk Website www.voltek.co.uk
*Helpline calls cost 60p/minute. Open 9am to 5pm, Mon to Fri.
Voltek reserves the right to change any product or
specification without notice (c) 2002
INSTALLATION
Four Way Camera Switcher
Thankyou for purchasing the Four Way Camera Switcher. Please read these
instructions thoroughly before starting the installation.
PRODUCT FEATURES
•
Connect to up to four Voltek cameras to the scart socket of your TV or VCR.
•
Compatible with the CT210 TV Modulator, CT220 VCR Activator & CT230
Time & Date Generator.
•
12V dc operating voltage for simple and safe wiring.
•
Auto facility allowing the picture to automatically switch between the cameras.
•
Adjustable switching time.
•
Manual control of camera's using simple push buttons.
•
Picture priority feature shows camera of interest when movement is
detected by a camera with a PIR sensor.
•
Alarm output trigger
CONTENTS
Please check & and familiarise yourself with all the parts before proceeding
with the installation.
•
Four way camera switcher.
•
Scart plug connecting lead.
•
Alarm output connector
INSTRUCTIONS
