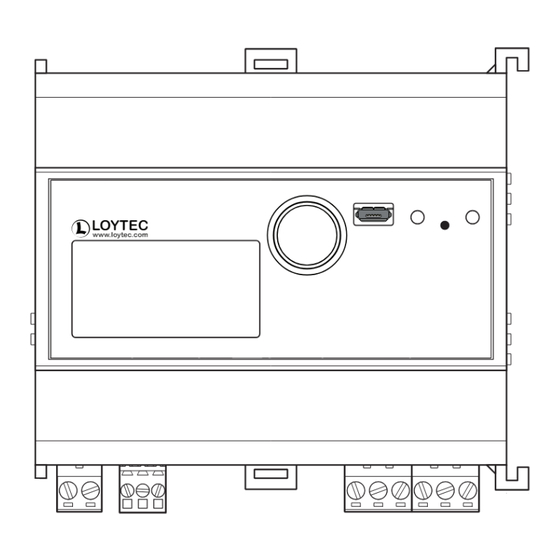

LINX2
Installation instructions
Instructions de montage
Montageanweisung
Montagevoorschrift
50º C
max
0º C
min
kg
0.260kg
Automation Server
RH
10 - 90 %
mm
[inch]
LINX‑102, LINX‑103, LINX‑112,
LINX‑113, LINX‑202, LINX‑203,
LINX‑212, LINX‑213
Instruzioni di montaggio
Instrucciones de montaje
Monteringsanvisning
Made in Austria
LOYTEC
www.loytec.com
Ethernet 2
24VAC/DC
PWR
107
112
USB
FT
RS-485
FT
RS-485
[4.213]
[4.409]
LOYTEC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LOYTEC LINX2 LINX-102
Summary of Contents for LOYTEC LINX2 LINX-102
-
Page 1: Installation Instructions

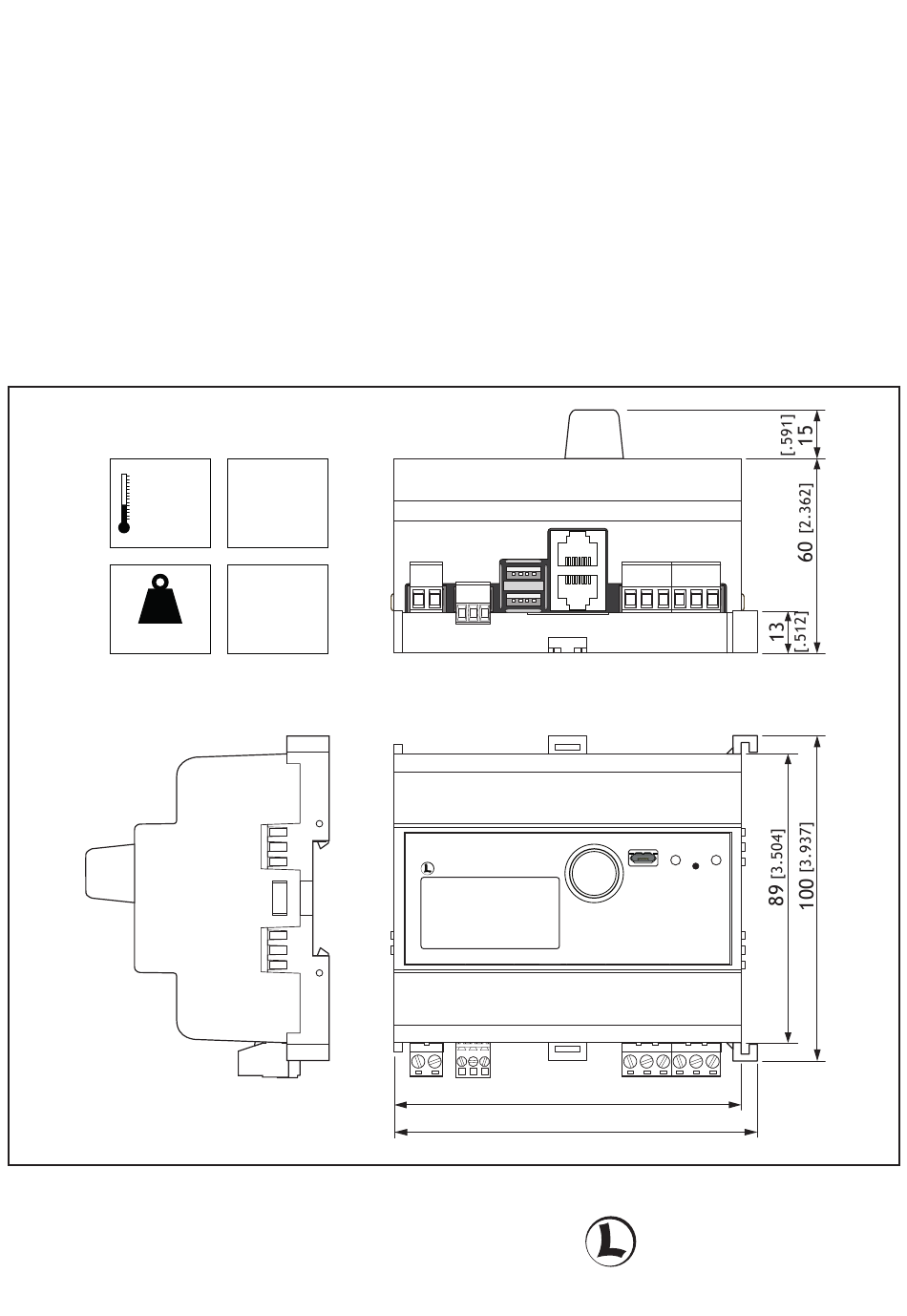

LINX‑113, LINX‑202, LINX‑203, LINX‑212, LINX‑213 Installation instructions Instructions de montage Instruzioni di montaggio Montageanweisung Instrucciones de montaje Montagevoorschrift Monteringsanvisning 50º C 0º C 10 - 90 % [inch] 0.260kg RS-485 Made in Austria LOYTEC www.loytec.com Ethernet 2 RS-485 24VAC/DC [4.213] [4.409] LOYTEC... - Page 2 RS-485 Made in Austria LOYTEC LINX2 L-INX www.loytec.com Automation Server Ethernet 2 RS-485 24VAC/DC USB 2 Ethernet 1 USB 1 Connectors POWER 1 Power supply input MINUS 2 Power supply input PLUS 3 Input GND M-Bus, 4 Input B KNX TP1 5 Input A...
- Page 3 Transmission errors MS/TP GREEN flashing fast Token ok, traffic ORANGE flicker Single master, traffic RED permanent Token lost, cable damage RED flashing fast Communication errors Please update the firmware of the device first, see www.loytec.com http://192.168.1.254 User: admin Password: loytec4u...
- Page 4 35 mm x 7.5 mm DIN rail (EN 50022, BS 5584, DIN 46277-3) LOYTEC electronics GmbH Date Code LINX2 W24/2015 Serial number of the device MADE IN AUSTRIA SER# 029501-000AB04CF95 LOYTEC Document 88082801 Web edition 06/2015 Printed in Austria http://www.loytec.com Data is subject to change support@loytec.com...
