- Page 1 Manual DLT10-RGB/TW...
-
Page 2: Table Of Contents
Page 16 Temperature units display setting Aux setting Page 17 Factory reset Page 18 Page 19 Caring for the Link Touch Troubleshooting Page 19 Resetting the Link Touch Page 20 Environment / disposal of old equipment Page 22 Service & warranty... -
Page 3: Technical Specifications
Technical specifications General specifications Input Voltage: 5 V DC 0.5A Interface: LoRa 868 MHz USB-C Ambient Air Temperature: 0°C to +40°C Humidity 10% to 90% RH - non condensing Ingress protection rate: IP20 IEC Protection Class: Class II Size (in mm): 89,5 (Height) 186,5 (Width) 17,5 (Depth) -
Page 4: Box Contents

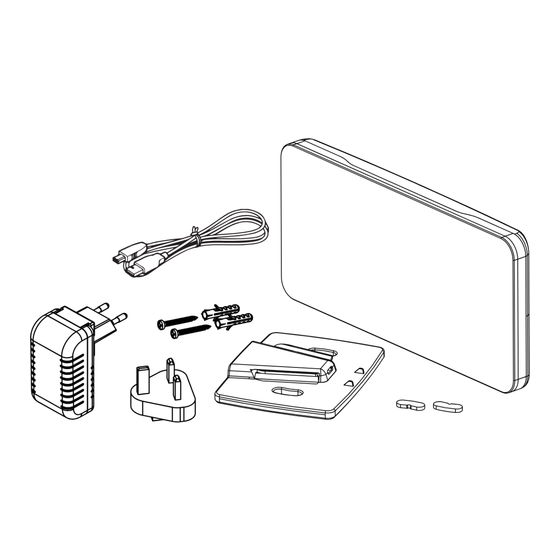

Box contents About the Link Touch The Link Touch is the remote of your pool control system. By using the Link Touch, you can control the lights, the heat pump and cover of your swim- ming pool. The Link Touch includes an integrated Li-Ion battery which can be charged automatically when mounted onto the wall mount. -
Page 5: Installation Instructions
Installation instructions The Link Touch is powered using the included AC power adapter and USB power cord Plug the USB power cord into the power adapter Plug the other end of the USB power cord into the USB connector of the wall mount. -
Page 6: Control Functions: Pool Lights
Control functions: pool lights Colour temp.: Slide to the right to adjust the pool light from “warmwhite” to “cool white” ON/OFF Lights: Press to switch all Lights ON/OFF Colour wheel: Slide to change colour of Pool Lights (only DLT10-RGB) Colour program: Press for next colour program. -
Page 7: Control Functions: Heat Pump & Pool Cover
Control functions: heat pump & pool cover Pool water Temp. DOWN: Pool water Temp. UP: Press to decrease desired Press to increase desired temperature temperature ON/OFF heat pump: Press to switch pool heat pump ON/OFF Pool cover OPEN: Press and hold to open the pool cover. When finger is removed from button the cover will stop immediately Pool cover CLOSE:... -
Page 8: Advanced Control Functions: Pool Lights
Advanced control functions: pool lights Activate the settings menu (*), then use left arrow key to select the desired setting. Activate the settings menu (*), then use right arrow key to select the desired setting (*) Touch the display for 3 seconds to go in to the settings menu. -
Page 9: Display: Status Icons
Display: Status icons Battery: Battery capacity Battery is charging No battery detected Signal: Link Touch is communicating werelessly Heat pump: Pool heat pump is on Pool Heat pump is on and heating Pool heat pump has an error Pool lights:... -
Page 10: Safety Information
Place the Power/USB cable out of walkways to prevent tripping over the cable. Use only the power adapter provided with the Link Touch. Use of an incorrect power adapter may cause overheating or fire. Do not bend or place a heavy object on the power/USB cable as it could... -
Page 11: First Use
Safety information Precautions for Cleaning, Transport and Storage Use a soft, damp cloth to clean the exterior of the Link Touch Do not use cleaning tissues or chemical substances which might damage the surface. This Link Touch contains no user serviceable parts. Do not attempt to service the Link touch yourself. -
Page 12: How To Use The Settings Menu
How to use the Settings Menu Touch the display on the Link Touch for 3 seconds to go into the settings menu. Use arrow keys to select the desired setting. Touch the display once to confirm the setting. -
Page 13: Connecting To
Connect the Link Touch with the PLP-REM-450 using the USB cable. Select “Pair start” on the Link Touch. The Link Touch will now be pairing with the PLP-REM-450 and all linked devices (lights, cover and heat pump ) to it. -
Page 14: Cover Operation Settings
Cover operation settings There are 2 modes: Deadman switch operation enabled: The cover operation will run when pressing and holding the finger on the button and will stop when releasing the finger from the button Deadman switch operation disabled: The cover operation will run with a single touch of the button and will stop when touching the button again. -
Page 15: Beep Settings
Link Touch. The beep will also sound when the Propulsion System’s cover is in operation. In case of a third party cover, the beeping sound will not be active Go to “BUZZER”... -
Page 16: Temperature Units Display Setting
Temperature units display setting The temperature units on the display can be set to Celsius or Fahrenheit Go to “TEMPERATURE °C/°F” in the settings menu. Touch the screen to select the re- quired units. (note that default setting is set to “°C”. -
Page 17: Aux Setting
ON/OFF function for a different device. The “AuxSetting” can be set to enable or disable. If disabled, then the Link Touch is considered to control a cover system. If “AuxSetting” is enabled, then the Link Touch will control a different device with the cover buttons and the buttons will act as an “ON”... -
Page 18: Factory Reset
Factory reset You can reset the Link Touch to the factory default settings. Resetting the Link Touch reverts all settings to the factory default set- tings. Any settings, including wireless connections, that have been changed are lost. The factory reset can be found in the setting menu. -
Page 19: Caring For The Link Touch
The Link Touch requires very little maintenance You may occasionally need to clean the exterior of the housing. To clean the exterior of the Link Touch, wipe the exterior with a soft, damp cloth. NOTE: Do not use cleaning tissues or chemical substances which might damage the surface Don’t place the Link Touch in direct sunlight... -
Page 20: Resetting The Link Touch
Resetting the Link Touch You can reset (=reboot) the Link Touch without loosing the preffered set- tings. To reset the Link touch: Press the “Reset” button on the back of the Link Touch, using a paperclip. RESET... -
Page 22: Environment / Disposal Of Old Equipment
This warranty does not cover failures or malfunctions resulting from the following: 1. Failure to properly install, operate or maintain the Link Touch in accordance with the installation guidelines provided in this manual. - Page 24 Propulsion Systems bvba Dooren 72 1785 Merchtem, Belgium Tel +32 2 461 02 53 Fax +32 2 706 59 60 www.duratech.be info@propulsionsystems.be We reserve the rights to change all or part of the contents of this document without prior notice...
