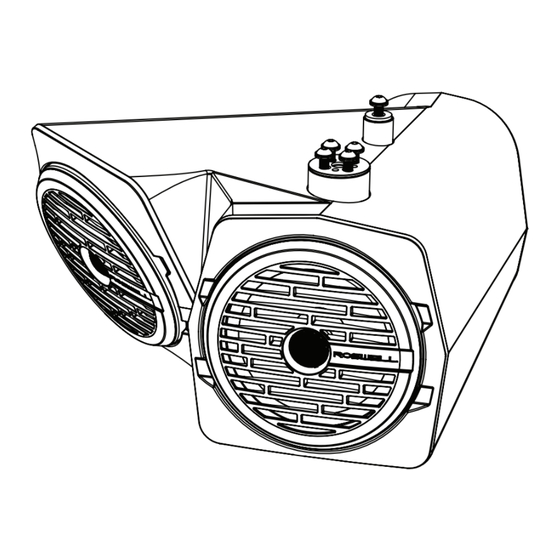

- Page 1 ww w.roswe l l marine.com Centurion Coverf Speaker Installation & Usage Instructions Part # C913-1906 Part # C913-1906W Information: info@roswellmarine.com If you have any questions please call : 1-321-638-1331 Rev. 17-May-18...
-
Page 2: Package Contents
STRIPPERS CRIMPS Roswell strongly recommends that a routine inspection of hardware and components be done to ensure proper function and safety and to maximize product life. If bolts are found to be loose, discontinue use until thread lock is re-applied and bolts are re-tightened. - Page 3 Coverfire Speaker Installation Instructions ww w.roswellmarine.com Remove the trim ring that cover the speaker mounting screws by twisting counter clock-wise and lifting away from the speaker housing. Perform this for both sides. Remove and disconnect the main 8 inch rear facing speaker. Access the inside of the speaker housing by removing the 4 screws.
- Page 4 Coverfire Speaker Installation Instructions www.roswellmarine.com Pull the wires out out of the tower. Feed the wires from the tower into the center hole of each speaker mount spacers and mounts. Repeat for both sides. Mount both speaker housings using the plastic spacers and hardware provided. We recommended performing this installation with two people.
- Page 5 Coverfire Speaker Installation Instructions www.roswellmarine.com Using the provided wire connectors, connect the wires on the inside of the speaker housings. Connect the wires from the tower to the speaker wires according to the chart below. Crimp and heat shrink the connectors. Stu the extra wire back into the speaker housings.
