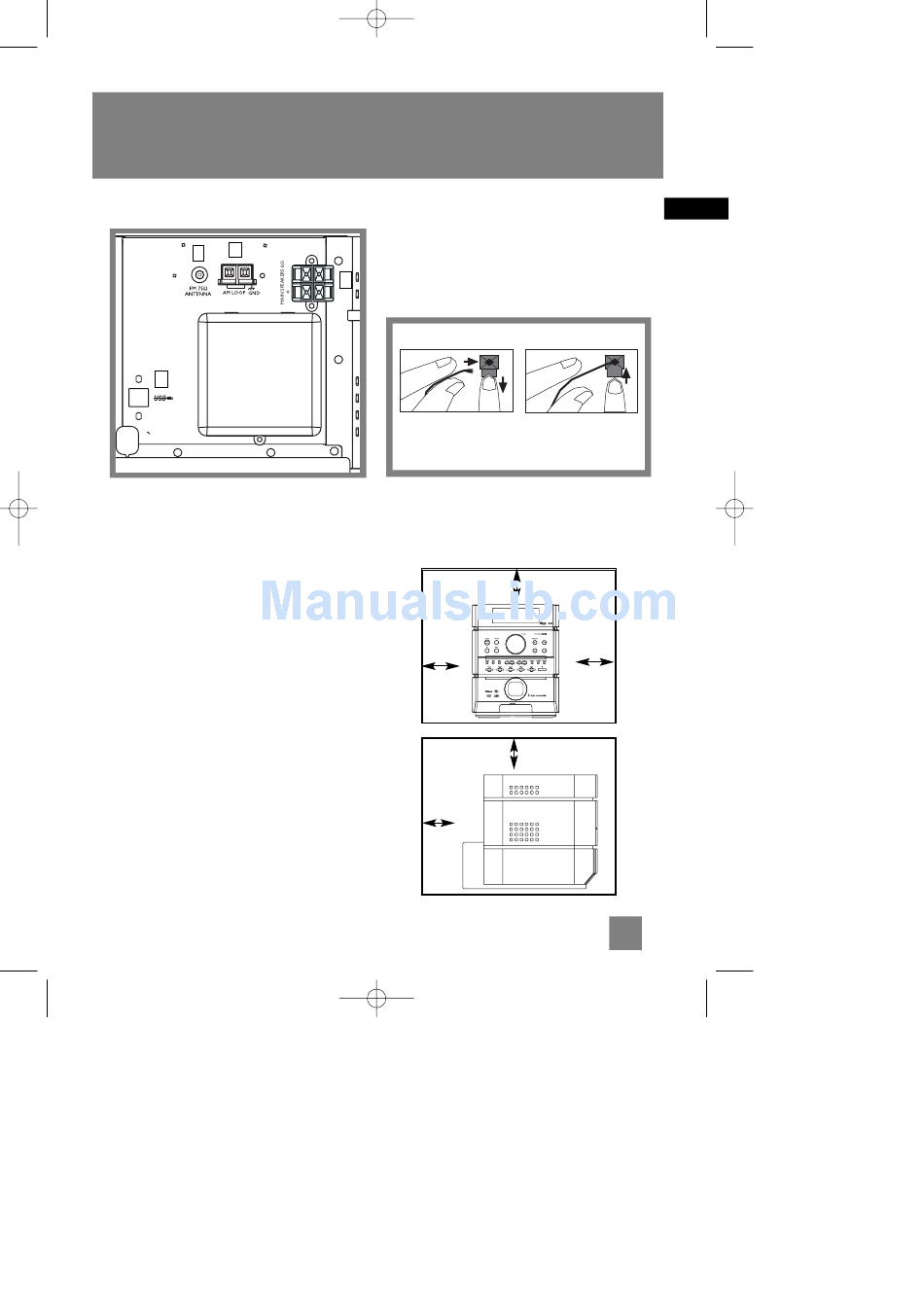

Back View

1
4
AC
1. FM Antenna Connector.
2. AM Loop antenna Jacks.
3. Main Speaker Jacks.
4. USB port.

Using the FM and AM Antennas

Before you use your audio system, you'll want to
make sure both the FM and AM antennas are
positioned properly. Connect the FM antenna to
the FM connector on the back of the unit. Uncoil
it, making sure it is fully extended. (you may even
want to tape it to the wall behind the unit if
possible. The higher the better.)
You'll also need to connect the AM antenna loop
to the back of the unit if you listen to AM
stations. Rotate the AM loop antenna for better
reception.
Page 9

Connecting the Speakers

Match the red wire (on the left speaker) to red
terminal for the left speaker (L) on the back of
2
the unit and the black wire (on the left speaker )
R L
to the black terminal for left speaker (L). Follow
_
3
the same procedure to connect the right (R)
speaker.
Speaker Wire Connection
NOTE: Make sure the insulation is completely removed from the

Installation

To ensure sufficient ventilation, keep the spacings
shown below free from other surfaces:
Push Speaker terminal tab Release tab to lock wire in
down to insert wire.
the terminal.
ends of the speaker wires at all connection points.
Front View
10 cm
10 cm
Side View
10 cm
5 cm
EN
10 cm
