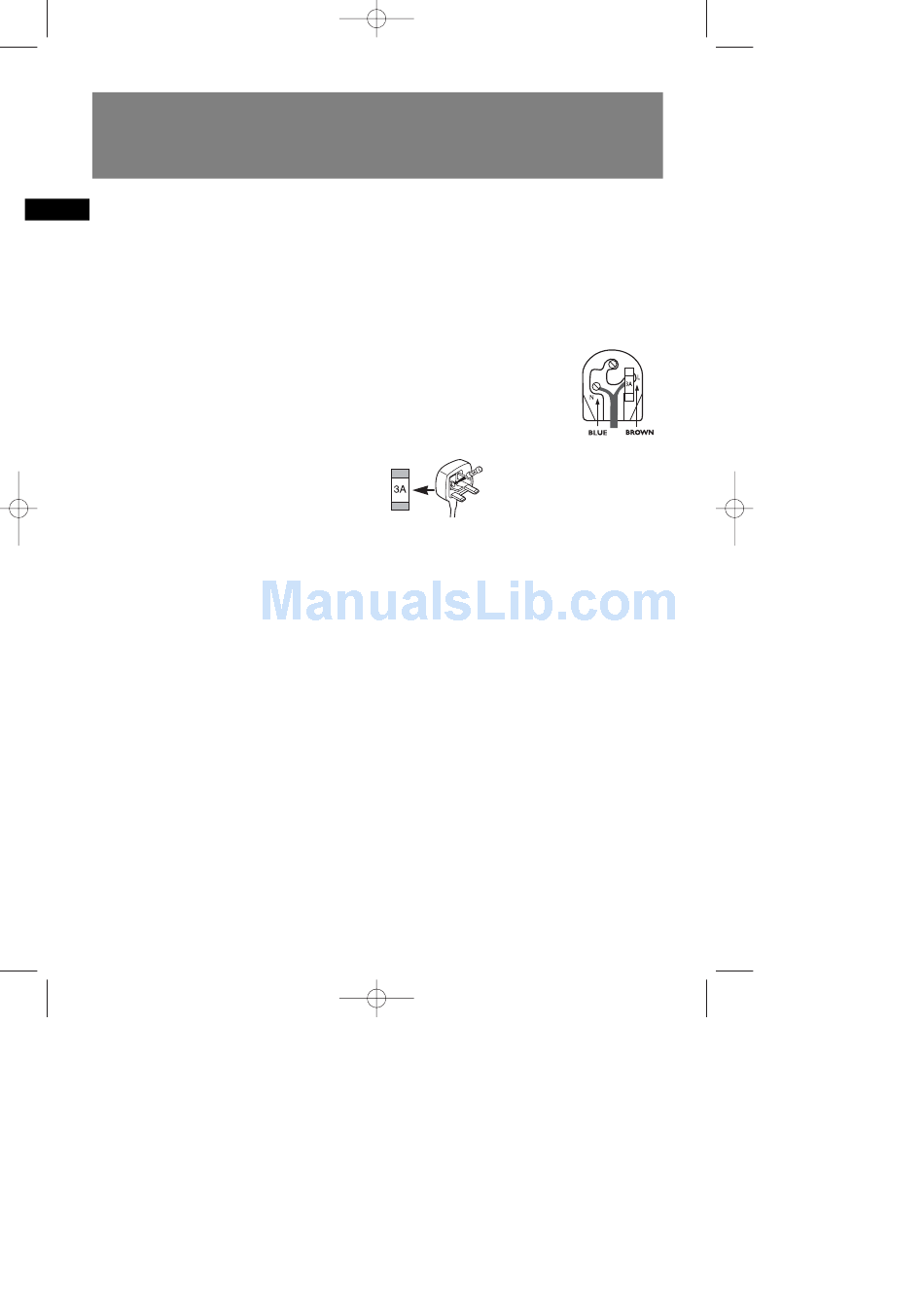

Safety Information
For UK Only
EN
CONNECT THE MAIN LEAD INTO A MAINS
POWER SOCKET
POWER SUPPLY 230V. It must not be
connected to D.C. mains.
Note: The mains lead of the set is fitted with a
molded plug. If the mains socket are not
compatible or if for any reason the plug is
removed please follow the directions below. The
molded plug cannot be rewired and if removed
must be disposed of safely.
DO NOT under any circumstances plug the
severed plug into any mains socket as this could
result in electric shock.
Important: If the plug is removed, rewire the
new plug as follow:
The wires in the mains plug are colored in
accordance to the following code:
The descriptions and characteristics given in this document are given as a general indication and not as a guarantee.
In order to provide the highest quality product possible, we reserve the right to make any improvement or
modification without prior notice. The English version serves as the final reference on all products and operational
details should any discrepancies arise in other languages.
Page 4
BLUE = NEUTRAL / BROWN = LIVE
If the colors of the wires in the mains lead of this
apparatus may not correspond with the colored
markings identifying the terminals in your plug,
proceed as follows:
BLUE wire to the terminal coded N (Neutral) or
colored black.
BROWN wire to the terminal coded L (Live) or
colored red.
DO NOT make any connection to
the terminal in the plug which is
marked by the letter E or by the
earth symbol or colored green or
green and yellow.
A fused plug must be fitted
with a 3A fuse approved by
ASTA or BS1362 and fuse
covers must be always be
securely replaced. If you set
does not work, the fuse may
be blown.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS580 and is the answer not in the manual?

Questions and answers

Related Manuals for THOMSON CS580

Summary of Contents for THOMSON CS580

  • Page 1 CS580 EN 6/10/04 2:25 PM Page 4 Safety Information For UK Only CONNECT THE MAIN LEAD INTO A MAINS POWER SOCKET POWER SUPPLY 230V. It must not be connected to D.C. mains. Note: The mains lead of the set is fitted with a molded plug.

  • Page 2: Safety Information

    CS580 EN 6/10/04 2:25 PM Page 5 Safety Information CAUTION! Invisible laser radiation when open. Avoid exposure to beam. Class 1 laser product. This system must be opened only by qualified technicians to prevent accidents caused by the laser beam.

  • Page 3: Table Of Contents

    CS580 EN 6/10/04 2:25 PM Page 6 Table of Contents Safety Information Table of Contents ....1 Getting Started ....3 Unpacking the system .
  • Page 4 CS580 EN 6/10/04 2:25 PM Page 7 Table of Contents File Navigation ......19 mp3 Format ......20 SmartTrax .

  • Page 5: Getting Started

    CS580 EN 6/10/04 2:25 PM Page 8 Getting Started Unpacking the system You should have the following: • one main unit (with 2 main speakers); • one remote control; • one FM antenna; • one AM loop antenna; • one MusicMatch Jukebox software CD;...

  • Page 6: Back View

    CS580 EN 6/10/04 2:25 PM Page 9 Getting Started Back View 1. FM Antenna Connector. 2. AM Loop antenna Jacks. 3. Main Speaker Jacks. 4. USB port. Using the FM and AM Antennas Before you use your audio system, you’ll want to make sure both the FM and AM antennas are positioned properly.

  • Page 7: Music Management Software

    CS580 EN 6/10/04 2:25 PM Page 10 Music Management Software Insert the Included CD-ROM into CD-ROM Drive 1. Turn on your computer and place the Music Management CD that came with your audio system into your computer. Note: Don’t connect the USB cable to the PC or the audio system before or during the driver installation.

  • Page 8: Cs580 En 6/10/04 2:25 Pm

    CS580 EN 6/10/04 2:25 PM Page 11 Music Management Software Install MusicMatch Jukebox MusicMatch Jukebox is a music management software used to organize and manage digital audio files and can be used to transfer the music to your audio system.

  • Page 9: Cs580 En 6/10/04 2:25 Pm

    CS580 EN 6/10/04 2:25 PM Page 12 Music Management Software Connecting the Audio System to the Computer Connect the audio system to your computer with the USB cable provided. Connect the smaller end of the USB cable to the USB port ( the back of the audio system and the larger end to the USB port on the computer.

  • Page 10: General Controls

    CS580 EN 6/10/04 2:25 PM Page 13 General Controls Main Unit Front View ON / ECO - Press and hold in standby mode to enter ECO (power saving, without clock display) mode. Press briefly to turn the unit on and off.

  • Page 11: Top View

    CS580 EN 6/10/04 2:25 PM Page 14 General Controls SKIP BACKWARD - In CD mode - Goes to the previous CD track; selects the previous program location. In USB mode - Skips to the previous file; In Tuner mode - Tunes down radio frequency;...

  • Page 12: Remote Control

    CS580 EN 6/10/04 2:25 PM Page 15 General Controls Remote Control ON/ECO - Press and hold in STANDBY mode to enter ECO (power saving, without clock display) mode. Press briefly to turn the unit on and off. USB - Selects USB source.

  • Page 13: Installing Batteries

    CS580 EN 6/10/04 2:25 PM Page 16 General Controls SKIP BACKWARD - In CD mode - Goes to the previous CD track and setting options; searches backward through CD; In USB mode - Skips to the previous file; In Tape mode - Rewinds tape;...

  • Page 14: Display

    CS580 EN 6/10/04 2:25 PM Page 17 Display DISC 1, 2, 3, 4, 5 - The corresponding disc number is displayed to Indicates which disc tray is loaded. The number will flash during playback to show which CD is currently playing.

  • Page 15: Settings

    CS580 EN 6/10/04 2:25 PM Page 18 Settings Showing Demonstration Press DEMO/DIMMER to turn on/off demonstration mode. The demonstration scrolls through all display operations. Setting the Clock 1. Press and hold CLOCK until the hour flashes on the display. 0:00 CLOCK SET 2.

  • Page 16: Adjusting The Display Brightness

    CS580 EN 6/10/04 2:25 PM Page 19 Settings Adjusting the Display Brightness 1. Press and hold DEMO/DIMMER for more than 2 seconds. 2. The display will show the current dimmer level on the first row and DIMMER SET on the second row to indicate you are currently in dimmer setting mode.

  • Page 17: Sound Features

    CS580 EN 6/10/04 2:25 PM Page 20 Sound Features Volume Control Turn the VOLUME knob on the main unit or press VOL on the remote control to adjust the volume level. The display briefly shows the change in volume level.

  • Page 18: Cd And Mp3 Playback

    CS580 EN 6/10/04 2:25 PM Page 21 CD and mp3 Playback Important CD and mp3 Information CD-R / RW This unit is compatible with CD-RW/ CD-R discs for playback. Notes on CD-R/RW Disc: • Do not affix any type of labels to either...

  • Page 19: Loading Discs

    CS580 EN 6/10/04 2:25 PM Page 22 CD and mp3 Playback Loading Discs 1. Press SOURCE repeatedly to select CD mode. 2. Press OPEN/CLOSE to open the disc compartment. 3. Insert up to 5 discs with label face up. 4. Press OPEN/CLOSE again to close the disc compartment.

  • Page 20: Repeat

    CS580 EN 6/10/04 2:25 PM Page 23 CD and mp3 Playback Repeat Press REPEAT/RDS to repeat the current track (REPEAT 1), current disc (REPEAT 1 DISC) , all discs (REPEAT ALL DISC), or turn repeat mode off (ALL DISC). Random Playback...

  • Page 21: Playing A Program List

    CS580 EN 6/10/04 2:25 PM Page 24 CD and mp3 Playback Playing a Program List While in PROGRAM mode , press PLAY/PAUSE If you are not currently in program mode, press PROG/SET to enter program mode before pressing PLAY/PAUSE Display Program List 1.

  • Page 22: Mp3 Format

    CS580 EN 6/10/04 2:25 PM Page 25 CD and mp3 Playback Note: The display can show up to 10 characters per line at one time. If the item has more than 10 characters, it will scroll from left to right to show the entire item.

  • Page 23: Playing A Mp3 Disc

    CS580 EN 6/10/04 2:25 PM Page 26 CD and mp3 Playback Playing a mp3 disc 1. Insert a mp3 CD into the CD tray, you will see the name of the first two folder (or root directory) displayed on the screen.
  • Page 24 CS580 EN 6/10/04 2:25 PM Page 27 CD and mp3 Playback For a SmartTrax CD, when you enter into one of the folders in the root directory, the corresponding icon lights on the left side of the title to show your location. For example, if you enter into the Artist category, the ARTIST icon will light.

  • Page 25: Mode

    CS580 EN 6/10/04 2:25 PM Page 28 CD and mp3 Playback Mode With a SmartTrax CD, press MODE to select between SmartTrax mode and normal mp3 mode. Playlist (For Smart Trax CDs only) Press PLAYLIST to access additional playlists that are available on the CD.

  • Page 26: View My Selection

    CS580 EN 6/10/04 2:25 PM Page 29 CD and mp3 Playback View My Selection Press the MY SEL button on the remote control to view items in My Selection folder. All titles in My Selection folder are listed as songs.

  • Page 27: Usb Mode

    CS580 EN 6/10/04 2:25 PM Page 30 USB Mode Selecting USB Mode Press SOURCE repeatedly on the main unit or press SOURCE or USB on the remote control to select USB mode. Note: Make sure you have connected the audio...

  • Page 28: Radio

    CS580 EN 6/10/04 2:25 PM Page 31 Radio Selecting Tuner Band 1. Press SOURCE repeatedly to enter Tuner mode. 2. Press CD INFO / BAND to select between MW, LW or FM Radio band. Tips: Your audio system has 32 preset stations.

  • Page 29: Tuning To An Rds Station

    CS580 EN 6/10/04 2:25 PM Page 32 Radio Tuning to a RDS Station Note: RDS stations broadcast on FM only. When the tuner detects an RDS signal, the RDS icons turns on. 1. Press TUNE/PRESET to access preset station or...

  • Page 30: Tape Player

    CS580 EN 6/10/04 2:25 PM Page 33 Tape Player Selecting Tape Player Press SOURCE repeatedly to select tape mode. Playing a Tape 1. In tape mode, press on the cassette door to open it. 2. Insert a tape into the door and push the door closed.

  • Page 31: Troubleshooting Tips

    CS580 EN 6/10/04 2:25 PM Page 34 Troubleshooting Tips Problem Solution System will • Check power cord for a secure not turn connection. • Unplug the unit for a moment, and then plug into power source again. • Check the outlet by plugging in another device.

  • Page 32: Maintenance

    CS580 EN 6/10/04 2:25 PM Page 35 Maintenance Disconnect the audio system from the power source before performing any maintenance. Cleaning Clean the exterior of the system using a soft dust cloth. CD Player CAUTION! This system operates with a laser. It must be opened by only a qualified technician.

  • Page 33: Important Information

    CS580 EN 6/10/04 2:25 PM Page 36 Important Information Safety Precautions • Never open the cabinet under any circumstances. Any repairs or internal adjustments should be made only by a trained technician. • Never operate this product with the cabinet removed.

  • Page 34: Headset Safety

    CS580 EN 6/10/04 2:25 PM Page 37 Important Information Important Battery Information • Remove the batteries to avoid leakage if you do not use your remote control for more than one month. • Discard leaky batteries immediately as leaking batteries may cause skin burns or other personal injuries.
