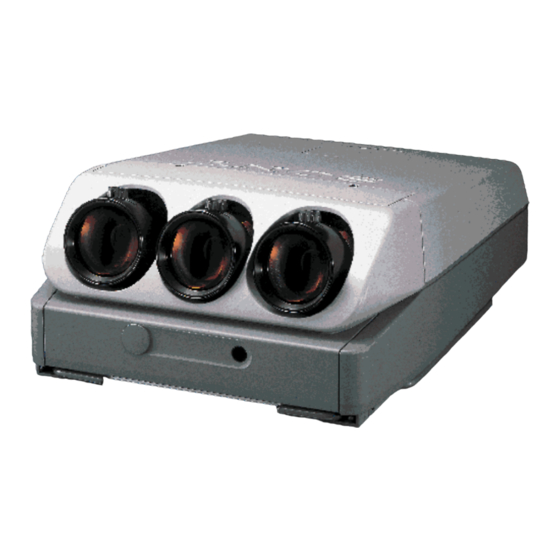

Sony VPH-G70Q Protocol Manual

Multiscan projector
Hide thumbs Also See for VPH-G70Q:

Advertisement

Quick Links

Download this manual See also: Installation Manual
PROTOCOL MANUAL
MODEL
...............
VPH-D50Q
VPH-D50QM
DEST.
..........
....................
CHASSIS NO.
US
Canadian
SCC-K78A-A
AEP
SCC-K79A-A
VPH-D50Q/D50QM
VPH-G70Q/G70QM/G70QMG
Ñ 1 Ñ
For General Release
MODEL
...............
VPH-G70Q
VPH-G70QM
VPH-G70QMG
MULTISCAN PROJECTOR
..........
....................
DEST.
CHASSIS NO.
US
SCC-K81A-A
Canadian
AEP
SCC-K82A-A
AEP
SCC-K89C-A
REVISED-1
R

Advertisement

loading
Need help?

Need help?

Do you have a question about the VPH-G70Q and is the answer not in the manual?

Questions and answers

Related Manuals for Sony VPH-G70Q

Summary of Contents for Sony VPH-G70Q

  • Page 1 PROTOCOL MANUAL For General Release MODEL MODEL ....DEST................CHASSIS NO. DEST. CHASSIS NO. VPH-D50Q VPH-G70Q SCC-K81A-A Canadian SCC-K78A-A Canadian VPH-D50QM VPH-G70QM SCC-K79A-A SCC-K82A-A VPH-G70QMG SCC-K89C-A REVISED-1 VPH-D50Q/D50QM VPH-G70Q/G70QM/G70QMG MULTISCAN PROJECTOR Ñ 1 Ñ...
  • Page 2 The material contained in this manual consists of information that is the property of Sony Corporation and is intended solely for use by the purchasers of the equipment described in this manual. Sony Corporation expressly prohibits the duplication of any portion of this manual or the use thereof for any...

  • Page 3: Protocol Specification

    1. INTRODUCTION This protocol manual describes various commands provided for projectors VPH-G70 and VPH-D50. Using these commands, an external computer is able to control VPH-G70 and VPH-D50. In the following paragraphs, CONTROLLER means an external device such as a PC which controls VPH-G70 and VPH- D50 using these commands.

  • Page 4: Command Block Format

    2-2. Command Block Format Code from B0 up to Bn+2 as described bellow shall be transmitted. < Note > n = 16 + the number of bytes of Data transmitted Start Code RECEIVER (To) Index Group Index Device Index Peripheral Index SENDER (From) Index Device Index Group Index...
  • Page 5 2-3. Data of Code 1 Start Condition NAME DATA NOTE Start Code 2 Index Header /*-- RECEIVER INDEX --*/ PERIPHERAL INDEX Projector GROUP INDEX UPPER BYTE GROUP INDEX LOWER BYTE Group Index = 0001 hex DEVICE INDEX UPPER BYTE DEVICE INDEX LOWER BYTE Device Index = 0001 hex /*-- SENDER INDEX...
  • Page 6 Place Data for a Command Block as follows for VPH-G70 / D50. CMD1 CMD2 Bn+1 Bn+2 SIZE of 6 DATA Check SUM SIZE of 4 ~6 ¥ Command Blocks from B0 up to Bn+2 shall be transmitted continuously. Transfer interval between bytes within a Command Block sent from CONTROLLER shall not exceed 4 ms.
  • Page 7 2-4. Connection Connector : 9 Pin D-subminiature female(D-9S) If CONTROLLER is wired with RS-232C and PROJECTOR is with RS-422A, the following connection is recommended. signal CONTROLLER PROJECTOR RXDA TXDA MAX202E CONTROLLER MAX489ECSD PROJECTOR MA232E 2-5. Communication Procedure Communication between CONTROLLER (such as a PC) and DEVICE (such as a PROJECTOR) shall be performed with transmission of a Command Block format.
  • Page 8 2-6. Communication Rules • INDEX NUMBER of PROJECTOR shall be set to ‘01’. • After transmission of a Command to PROJECTOR, CONTROLLER shall not send the next Command before receiving Return Data ( CMD1=10 hex ) from PROJECTOR. If not, any Data is not transmitted from PROJECTOR, neither any Error Code.
  • Page 9 Please pay special attention to the following ERROR Data, when SIRCS DIRECT COMMAND is transmitted. 04 : SIZE ERROR The value of Data is not ‘2’. 05 : SELECT ERROR The value of the first Data is not ‘0’, neither ‘1’. - ‘0’...
  • Page 10 — 10 —...
  • Page 11 — 11 —...
  • Page 12 — 12 —...
  • Page 13 — 13 —...
  • Page 14 — 14 —...
  • Page 15 — 15 —...
  • Page 16 - 16 -...
  • Page 17 — 17 —...
  • Page 18 — 18 —...
  • Page 19 — 19 —...
  • Page 20 — 20 —...
  • Page 21 — 21 —...
  • Page 22 — 22 —...
  • Page 23 — 23 —...
  • Page 24 Ñ 24 Ñ...
  • Page 25 SONY Corporation Image & Sound Communication Company — 25 — 1997.8...
