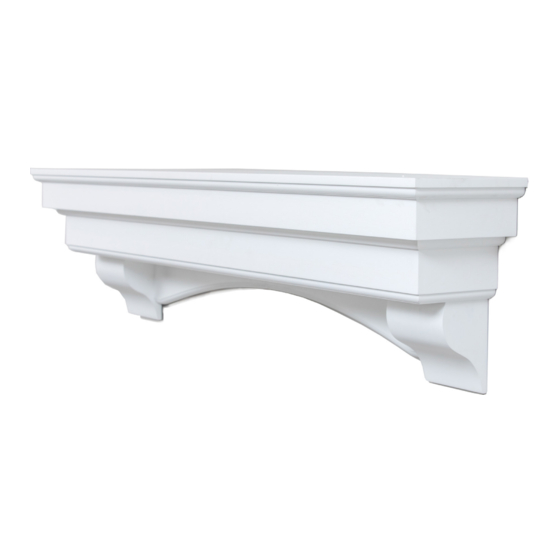

Mantel Kit Assembly And Installation
CALIFORNIA PROPOSITION 65 WARNING:
This product can expose you to chemicals including formaldehyde, which is
known to the State of California to cause cancer, birth defects and/or other
reproductive harm. For more information, go to www.P65warnings.ca.gov
MODEL: ASHTRMK-W
United States Stove Company
PO Box 151, 227 Industrial Park Rd.,
South Pittsburg, TN 37380
PH: (800) 750-2723
www.usstove.com
Caution! The appliance is very heavy. The
assistance from a second person is strongly
suggested. Please use proper lifting technique
when positioning the appliance for assembly
and installation.
853603
Advertisement
Table of Contents
Related Manuals for Ashley ASHTRMK-W
Summary of Contents for Ashley ASHTRMK-W
- Page 1 Mantel Kit Assembly And Installation MODEL: ASHTRMK-W Caution! The appliance is very heavy. The CALIFORNIA PROPOSITION 65 WARNING: assistance from a second person is strongly This product can expose you to chemicals including formaldehyde, which is suggested. Please use proper lifting technique...
- Page 2 Parts List And Hardware PARTS LIST HARDWARE LIST NAME FIGURE NAME FIGURE CAM LOCKS FLOATING SHELVING CAM BOLTS (Φ6x40mm) SCREWS CURVED BOARD WOOD SCREWS WALL PLUGS (Φ8x60mm) LEFT CORBELS Please check that you have all contents shown before starting assembly. Assemble on a soft surface to avoid damaging the product on your floor.
- Page 3 Assembly Instructions Mini Flat Mini Phillips head Screwdriver head Screwdriver Small hammer 1. Attach the two (#3),(#4) corbels to the (#2) curved board using two Cam locks (A) and two Cam bolts (B). 2. Attach the (#2) curved board to the (#1) float shelving using two Cam locks (A), and two Cam bolts (B). Attach the two (#3),(#4) corbels to the (#1) float shelving using four Screws (C).
- Page 4 3. Mark on the wall where you want the mantel mounted. Then measure 2-7/8” below that mark and draw a level straight line (Line 2). This is where you will mount your (#5) Wood Strip. Mark the 5 hole positions on the wall using the (#5) Wood Strip.
-
Page 5: Limited Warranty
Limited Warranty The use of this mantel in a manner inconsistent with the owner’s manual will void the warranty. United States Stove Company warrants this product to be free from defects in material and workmanship, to the original retail purchaser only, for the time period identified below, measured from the date of the initial purchase as evidenced on an invoice, canceled check, sales receipt, etc., to receipt of a claim by United States Stove Company (“USSC”) or an authorized dealer, as follows: TIME PERIOD... - Page 6 DISCLAIMED UNDER APPLICABLE LAW. ALL OTHER WARRANTIES OF ANY KIND, INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED AND EXCLUDED TO THE FULLEST EXTENT NOT PROHIBITED BY APPLICABLE LAW. This Limited Warranty gives the purchaser specific legal rights;...
