Installation and Owner's Manual
! Read these instructions. ! Failure to follow maintenance guidelines may result in a cancellation of warranty

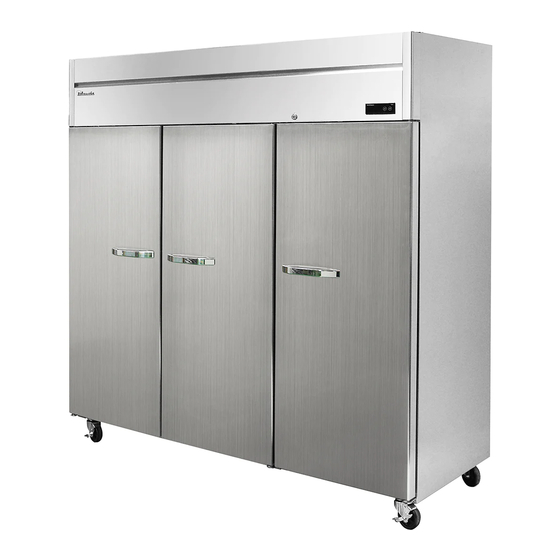

Reach Ins
Stainless Steel
Food Prep Tables
Undercounters
www.blueairfse.com
Blue Air FSE, LLC
223 W, Rosecrans Ave. Gardena, CA 90248 .
T. (310) 808-0102 • (866) 677-8500 • F. (310) 808-0242
BSR**-HC
BSF**-HC
BSR**T-HC
BSF**T-HC
**/23,49,72/
**/23T,49T,72T/
BLUR **-HC
BLUF ** -HC
BLPT** -HC
BLMT** -HC
**/28,36,48,60,72/
and optional
Drawer models
Work top models
Advertisement
Related Manuals for Blueair BSR Series
Summary of Contents for Blueair BSR Series
- Page 1 Installation and Owner’s Manual ! Read these instructions. ! Failure to follow maintenance guidelines may result in a cancellation of warranty Reach Ins BSR**-HC Stainless Steel BSF**-HC BSR**T-HC BSF**T-HC **/23,49,72/ **/23T,49T,72T/ BLUR **-HC BLUF ** -HC BLPT** -HC Food Prep Tables BLMT** -HC Undercounters **/28,36,48,60,72/...
-
Page 2: Table Of Contents
Installation and Operation Guide 1. Warnings & Contents Safety Precautions 1. Warnings & Safety Precautions --------------- 1 2. Installation -------------------------------------------- 3 3. Operation Guide ------------------------------------ 6 Refrigeration units that contain Hydrocarbon (R-290) 4. Maintenance, Cleaning --------------------------- 7 See Below: 5. Troubleshooting ------------------------------------ 9 •... - Page 3 Installation and Operation Guide • Unplug the appliance before cleaning and making Use of extension cords is NEVER allowed repairs. • Use caution, the unit does remain powered when Blue Air will not warranty any refrigerator that has been connected to an extension cord. system controls are used to turn off unit.
-
Page 4: Installation
Installation and Operation Guide Installation 1) Remove the wooden pallet : Before you start to install your Blue Air unit, carefully Unscrew the bolts shown in Figure 1 (Reach-in 4- inspect it for freight damage. If damage is discovered, immediately file a claim with the delivery freight carrier. M13 Bolts and Undercounter 2-M6 Bolts) Blue Air is not responsible for damage incurred during shipment. - Page 5 Installation and Operation Guide 3) Assembling casters: 4) Leveling: Proper leveling of your Blue Air unit is critical to (1). Reach-ins (Figure3): Install casters in the bottom rails operating success. Effective condensate removal assembly on the bottom of the unit. It is important in and door operation will be effected by leveling.
- Page 6 Installation and Operation Guide 5) Ventilation: 7) To connect electricity : Set unit in its final location. Be sure there is adequate ventilation in your room. you may need to The power cord of this appliance is equipped with a install an exhaust fan under the extreme heat grounding plug which mates with a standard grounding conditions, (100°F+, 38°C+),...
-
Page 7: Operation Guide
Installation and Operation Guide 3) How to set the temperature 8) Electrical requirements ▶ Touch the lock button for 3 seconds to “There are several factors that will affect the proper adjust the temperature. operation of your refrigerator. Among these factors, the ▶... -
Page 8: Maintenance, Cleaning
Installation and Operation Guide 4. Maintenance, Clean For keeping the best efficiency, it is very important to clean the condenser coil in period. Blue Air recommend to clean the condenser coil by a month. Dirty condensers result in compressor failure, product loss, and lost sales, which are not covered by warranty. - Page 9 Installation and Operation Guide 3) Reach ins (top mounted compressor unit): 4) Cleaning the cabinet. To reduce the risk of electric shock, unplug before • Take off top grille at the bottom by removing screws (only reach-in top mounted compressor model) cleaning or service”...
-
Page 10: Troubleshooting
Installation and Operation Guide 5. Troubleshooting Problem Possible Cause Action Power connection failure Check Power Cord and plug it in Compressor will not start Ensure switch is in the “on” Power switch is in off position position Temperature set point is too high Correct temperature set point The door is opened too frequently Minimize door opening... - Page 11 Installation and Operation Guide Blue Air has a Nationwide Service Network to provide timely services to our customer's needs. Please call or fax us at the following numbers. Blue Air Refrigeration Nationwide Service Network Toll Free, 1-866-677-8500 TEL, (310) 808-0102 Fax, (310) 808-0242/0262 www.blueairfse.com...
