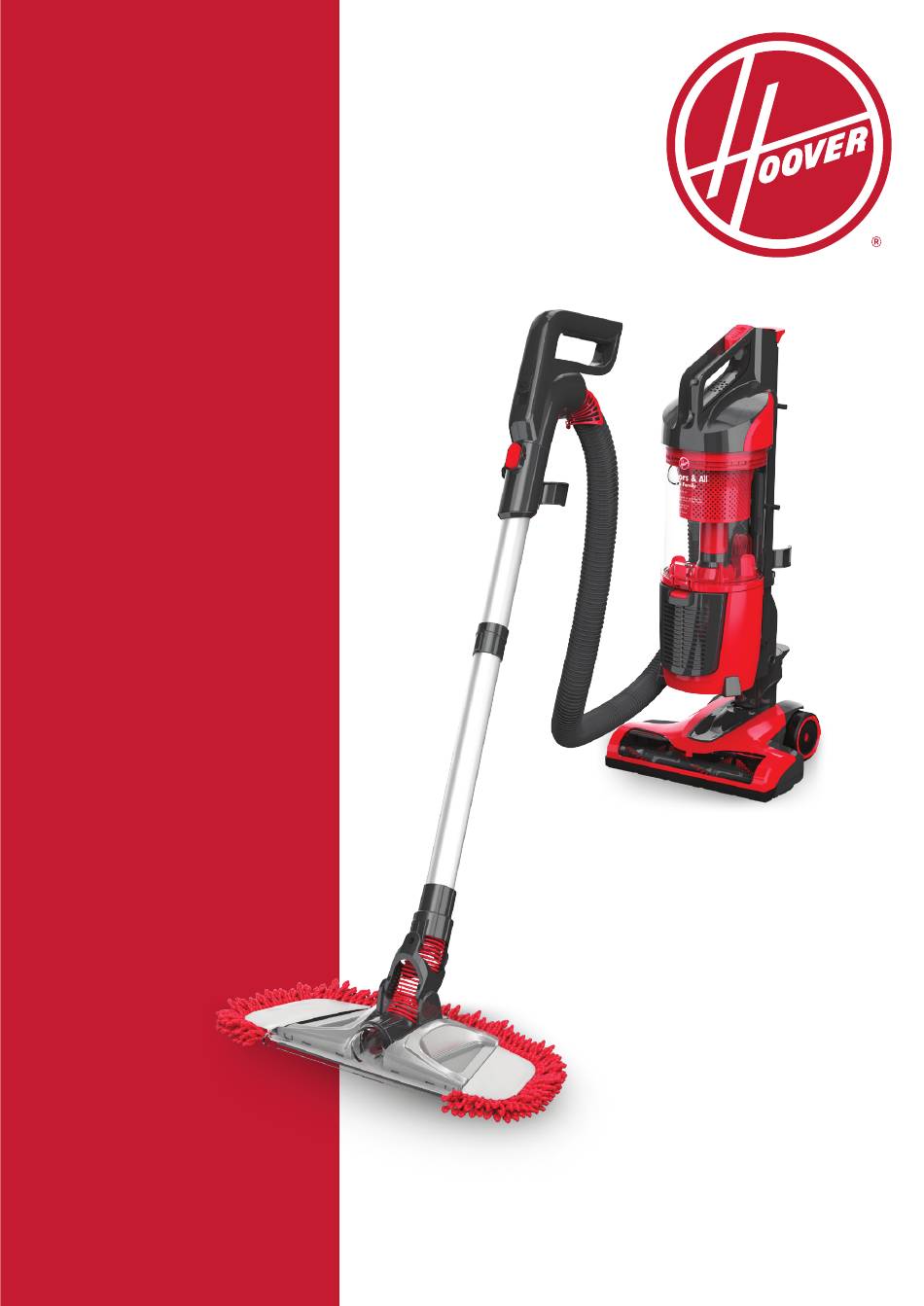

- Page 1 Performance Floors & All User Guide HU86-FAL-S Version 1.0...
-
Page 2: Table Of Contents
CONTENTS Contents Machine Overview General Safety Information Operation Maintenance FAQs Other Information... -
Page 3: Machine Overview
MACHINE OVERVIEW Unit Handle Air Bleed Hole Extension Tube Main Body Release Button Dirt Container Release Button Power ON/OFF Switch Separator Dirt Container Post Motor Filter Hose to Machine Connector Hose to Handle Connector Hose Extension Tube Release Button Quick Release Cord Hook Power Cord TurboTool... -
Page 4: General Safety Information
4. Only Hoover recommended tools should be used with this vacuum cleaner 5. Don’t use this vacuum cleaner if it has been dropped, damaged or left outdoors 6. -
Page 5: Operation 4 5
OPERATION Please read General Safety Information at the beginning before use. Assembling your upright Place the dirt Align the main body Insert the extension Push the hose into container onto the with the floor head tube into the top of the hose to handle main body and click and push into place. - Page 6 OPERATION Before you begin cleaning • Always switch off and unplug the vacuum cleaner before connecting or disconnecting the hose/ attachments, or removing and emptying the dirt container • The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does overheat the thermostat will automatically turn the vacuum cleaner off.
- Page 7 OPERATION Attaching accessories to telescopic tube or handle Press extension tube Choose an accessory. Attach accessories to Always hold the release button and a) 2 in 1 tool/crevice the end of extension vacuum cleaner when lift handle to remove & dusting brush tube using the hose or extension tube.
- Page 8 MAINTENANCE Emptying and cleaning the dirt container When re-attaching the dirt Press the dirt container Hold dirt container release button and container, align the base first over a bin and press then push until you hear an pull to remove the dirt the dirt container audible click.
-
Page 9: Maintenance 7 8
MAINTENANCE Cleaning the shroud Turn the dirt container Grasp tab on filter Grasp the centre lid anti-clockwise and and pull to remove. of the shroud and lift to remove. pull to remove. TIP: Always make sure the shroud C max is fully dry and 24hr correctly fitted... - Page 10 MAINTENANCE Removing blockages from the TurboTool Tabs Remove the Push both buttons to Using a pair of scissors, rubber ring. open the turbo tool. cut any hair or debris free from around the brushes. Changing the belt Switch off and unplug Remove the brushbar Lift the brushbar out Remove the drive belt...
-
Page 11: Faqs
FAQs Warning: Always unplug the Vacuum cleaner before performing maintenance/troubleshooting checks Is there an accessory missing? • Check the ‘Machine Overview’ panel to make sure the part is included with your machine. Why does my vacuum cleaner have no power? •... -
Page 12: Other Information
OTHER INFORMATION Service & Help If you have queries or concerns about using your Hoover, please visit www.hoover.ae Technical Specification Voltage: 220-240V ~50/60Hz Wattage: 1200W Cord length: 9m Weight: 7.5 kg (approx) Subject to technical change without notice. Consumables Hoover Filter Kit (Type 71) 1-1-134017-00... - Page 13 NOTES...
