WARNING!
!
READ ALL INSTRUCTIONS BEFORE USE OF THE CHANGING TABLE, ADD-ON
CHANGING UNIT, OR CONTOURED CHANGING PAD.
!!PLEASE READ!!
Assembly of this furniture is easier with two
people. Assemble furniture on debris free
carpets or on the enclosed foam sheets to
prevent scratching of finish. Using any
power tools to assemble this furniture may
potentially strip the wood. DO NOT
OVERTIGHTEN SCREWS. DO NOT USE
THE CHANGING TABLE IF IT IS
DAMAGED OR BROKEN.
Keep instructions
for future reference.
(H1) 2.5" Machine Bolt - Quantity: 4
(H6) Nylon
(H5) Barrel Nut
Dowel
Quantity: 4
Quantity: 16
(H11) Right Panel Glide - Quantity: 3
(H12) Left Panel Glide - Quantity: 3
revised 09-2009

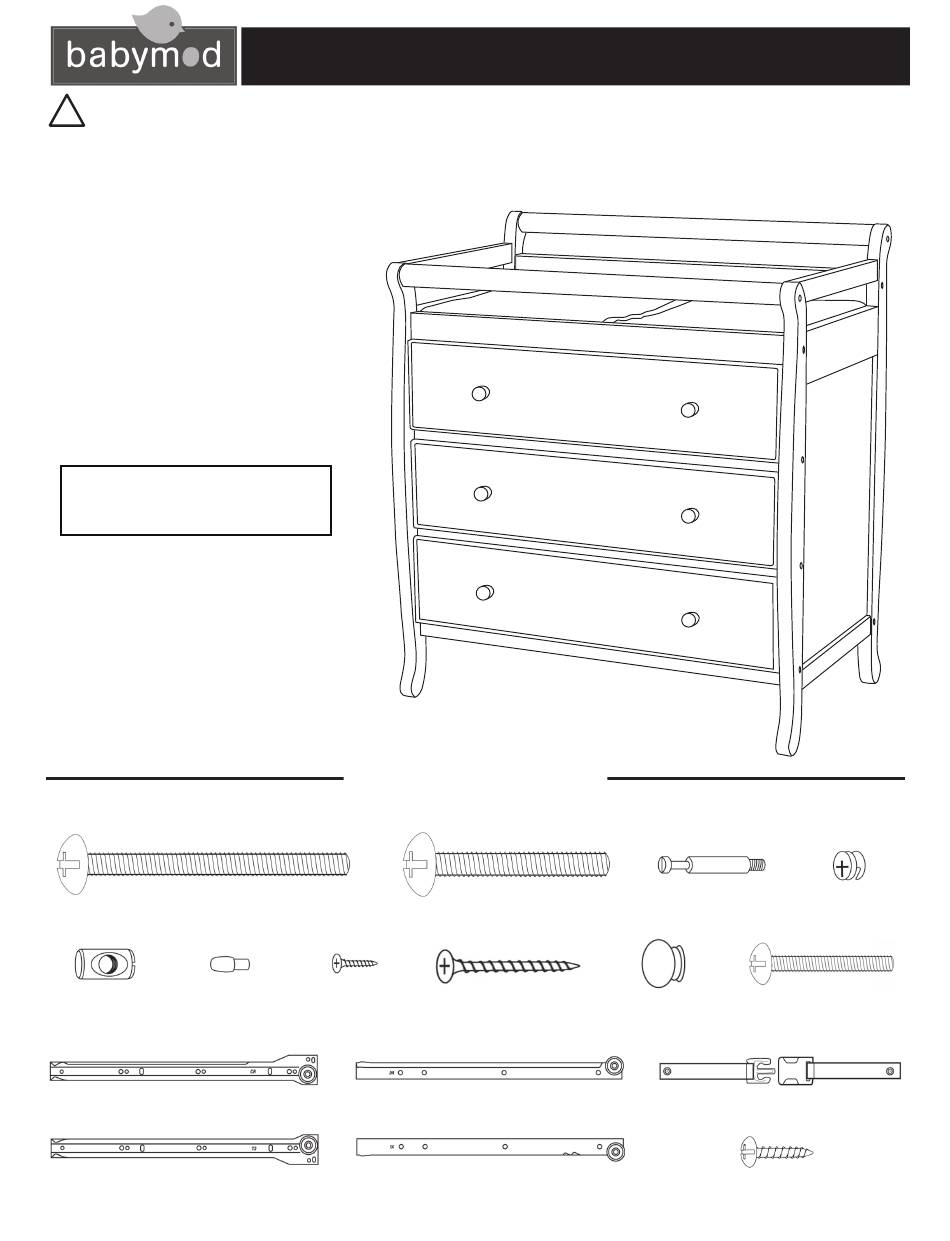

W4755 Lily 3 Drawer Changer Package Contents
HARDWARE
Tools required: Phillips screwdriver, Flat-head screwdriver.
(H2) 1.75" Machine Bolt - Quantity: 12
(H7) Wood
Screw
Quantity: 36
(H13) Right Drawer Glide - Quantity: 3
(H14) Left Drawer Glide - Quantity: 3
(H8) Wood Screw
Quantity: 12
(H4) Cam Lock
(H3) Cam Bolts
Quantity: 6
(H10) Knob Screw
(H9) Knob
Quantity: 6
Quantity: 6
(SS) Safety Strap Assembly
Quantity: 1
(SS2) Safety Strap Screw
Quantity: 2
Quantity: 6
