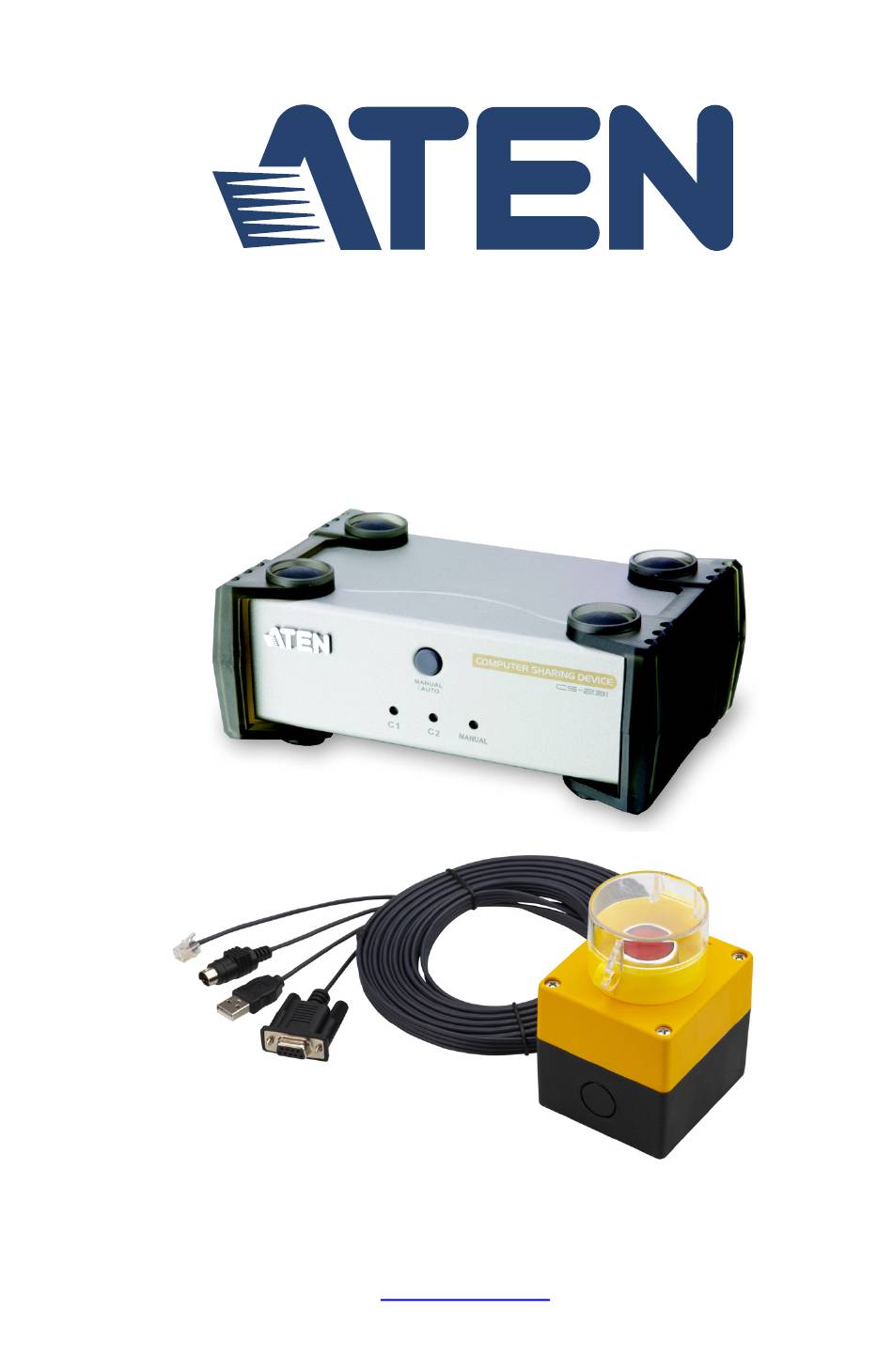

Computer Sharing Device
CS231 / CS231TK User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS231 and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN CS231

Summary of Contents for ATEN CS231

  • Page 1 Computer Sharing Device CS231 / CS231TK User Manual www.aten.com...

  • Page 2: Emc Information

    CS231 / CS231TK User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Rohs

    CS231 / CS231TK User Manual RoHS This product is RoHS compliant.

  • Page 4: User Information

    CS231 / CS231TK User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America...

  • Page 5: Package Contents

    Copyright © 2019 ATEN® International Co., Ltd. Manual Date: 2019-12-11 Altusen and the Altusen logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 6: Table Of Contents

    CS231 / CS231TK Front View....... . 4 CS231 / CS231TK Rear View ....... . 5 2XRT-0015G KVM over IP Access Control Box Front View .
  • Page 7 CS231 / CS231TK User Manual Keyboard Emulation Mapping........15 Apple Keyboard.

  • Page 8: About This Manual

    CS231 / CS231TK User Manual About this Manual This user manual is provided to help you get the most from the CS231 / CS231TK unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.

  • Page 9: Conventions

    Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 CS231 / CS231TK User Manual This Page Intentionally Left Blank...

  • Page 11: Introduction

    IP control privilege by simply pressing a control button. It’s fast and easy to set up the 2XRT-0015G. Simply plug the 2XRT-0015G’s cables to the CS231 / CS231TK. There is no need to install software or configure devices - just plug and play,.

  • Page 12: Features

    Chapter 1. Introduction Features CS231 / CS231TK  Single computer shared by two USB consoles  Supports USB and PS/2 computers  Multiplatform support (Windows, Mac, Unix, and Linux)  Manual or Auto console selection  Control the system with Hotkeys ...

  • Page 13: System Requirements

     Netware 5.0 (PS/2 computers only)  Mac OS 8.6, 9.0, 9.1, X, 10.1, 10.2, 10.3, 10.4 or later Cables Use ATEN's high-quality, custom cables to ensure reliable switching among consoles. To purchase ATEN’s custom cables contact your dealer. Description...

  • Page 14: Components

    Console 1 accesses the computer. MANUAL LED Lights to indicate that the CS231 / CS231TK is set to Manual Mode. In Auto Mode the LED does not illuminate. * In Auto Mode, when neither console is accessing the computer, both Console...

  • Page 15: Cs231 / Cs231Tk Rear View

    CS231 / CS231TK User Manual CS231 / CS231TK Rear View No. Component Description Firmware Upgrade Port The firmware upgrade cable connects here and to the administrator's computer to upgrade the firmware see The Firmware Upgrade Utility , page 17). DIP Switch This is a 4-pin DIP switch.

  • Page 16: 2Xrt-0015G Kvm Over Ip Access Control Box Front View

    Chapter 1. Introduction 2XRT-0015G KVM over IP Access Control Box Front View Component Description Indication Control Button / LED Press the button to enable or disable Lights red remote over IP control access. USB Connector Connects to a USB port to power on the device.

  • Page 17: Hardware Setup

    You must unplug the power cords of any computers that have the Keyboard Power On function. Installing your new CS231 / CS231TK involves the following seven steps (refer to the diagram on the following page): 1.

  • Page 18: Installation Diagram

    Chapter 2. Hardware Setup Installation Diagram...

  • Page 19: Basic Operation

    Chapter 3 Basic Operation Overview For CS231TK that comes with the CS231 package including the 2XRT-0015G KVM over IP Access Control Box. The 2XRT-0015G KVM over IP Access Control Box allows users to enable or disable remote over IP control privilege by simply pressing a control button.
  • Page 20 CS231 / CS231TK User Manual This Page Intentionally Left Blank...

  • Page 21: Operation

    Auto Mode Auto Mode operates according to the following rules: 1. When the CS231 / CS231TK is turned on it starts in Auto Mode, and operates on a first-come-first-served basis. Both Console LEDs are On; the Manual LED is Off.

  • Page 22: Timeout

    MANUAL/AUTO Button. Screen Saver To protect the screen phosphors, when the CS231 / CS231TK is in Auto Mode and no one is accessing the computer, a stripe image can scroll down the screen. To enable this function, set DIP switch pin 4 to the On position.

  • Page 23: Dip Switch Settings Table

    Auto Mode > Console 1 > Console 2 > Auto Mode  When Manual Mode is invoked, the CS231 / CS231TK switches to the selected console and prohibits the other console from controlling the computer.

  • Page 24: Hotkey Setting Mode

    Ctrl key can be used instead. See HSM Summary Table, page 14, for details. Hotkey Setting Mode Hotkey Setting Mode is used to configure your CS231 / CS231TK switch. All operations begin with invoking Hotkey Setting Mode (HSM). Invoking HSM To invoke HSM do the following: 1.

  • Page 25: Keyboard Emulation Mapping

    CS231 / CS231TK User Manual Turn the other console's monitor off or on. (This setting applies until changed or until the device is powered off.) Toggles between the default and alternate HSM invocation keys. The alternate HSM invocation keys are [Ctrl] + [F12].
  • Page 26 Chapter 4. Operation [Enter] Return [Backspace] Delete [Insert] Help [Ctrl],...

  • Page 27: The Firmware Upgrade Utility

    3. Shut down the computer(s) on your CS231 / CS231TK installation. 4. Connect the provided firmware upgrade cable to the firmware upgrade port on the CS231 / CS231TK and to a COM port on the computer you used to download the Firmware Upgrade Package.
  • Page 28 CS231 / CS231TK User Manual 2. Read and Agree to the License Agreement (enable the I Agree radio button). 3. Click Next to continue. The Firmware Upgrade Utility main screen appears: The Utility inspects your installation. All the devices capable of being upgraded by the package are listed in the Device List panel.

  • Page 29: Upgrade Succeeded

    Chapter 5. The Firmware Upgrade Utility If you enabled Check Firmware Version, the Utility compares the device's firmware level with that of the upgrade files. If it finds that the device's version is higher than the upgrade version, it brings up a dialog box informing you of the situation and gives you the option to Continue or Cancel.

  • Page 30: Upgrade Failed

    CS231 / CS231TK User Manual Upgrade Failed If the Upgrade Succeeded screen does not appear, then the upgrade failed to complete successfully. You should repeat the upgrade procedure from the beginning.

  • Page 31: Appendix

    Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 32 Appendix  If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.

  • Page 33: Technical Support

    CS231 / CS231TK User Manual Technical Support International  For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com  For telephone support, see Telephone Support, page iv: North America Email Support support@aten-usa.com Online Technical Troubleshooting http://www.aten-usa.com/support Support...

  • Page 34: Specifications

    Appendix Specifications Function CS231 Computer Connections Console Connections Console Selection Hotkey, Pushbutton Connectors Console Keyboard 2 x USB Type A Female (White) Port Video 2 x HDB-15 Female (Blue) Mouse 2 x USB Type A Female (White) Computer Port 1 x SPHD-15 Female (Green)

  • Page 35: Troubleshooting

    Nothing happens when I 1. Ensure that the KVM cable connectors are firmly move the mouse or secured to the computer port on the CS231 / CS231TK press keys on the and to the keyboard and mouse ports on the computer keyboard.

  • Page 36: Limited Warranty

    What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
