Mounts by
A division of David Engineering & Mfg. Inc.
M odel
PDM750F-11 PANEL DISPLAY MOUNT
Thank you for purchasing the PDR panel display wall mount.
To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe place for future reference.
All PDR mounts and adapters carry a lifetime warranty against defects in material and workmanship.
Check the PDR website for details @ www.PDRmounts.com. We are not liable for improper installation that results in damage
to mounts, adapters or presentation equipment.
Special techniques are necessary for installation of the panel display mount.
Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
Please remember that if you remove the panel display from the wall later, you will find the screw holes and anchor bolts for the
mounting unit left on the wall. A lso note that long use of the panel display may discolor the wall around it due to its heat and
airflow.
To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the panel
display and the wall mount.
Always use at least two persons for all installations.
Fully tighten all of the mounting screws as specified in the installation instructions.

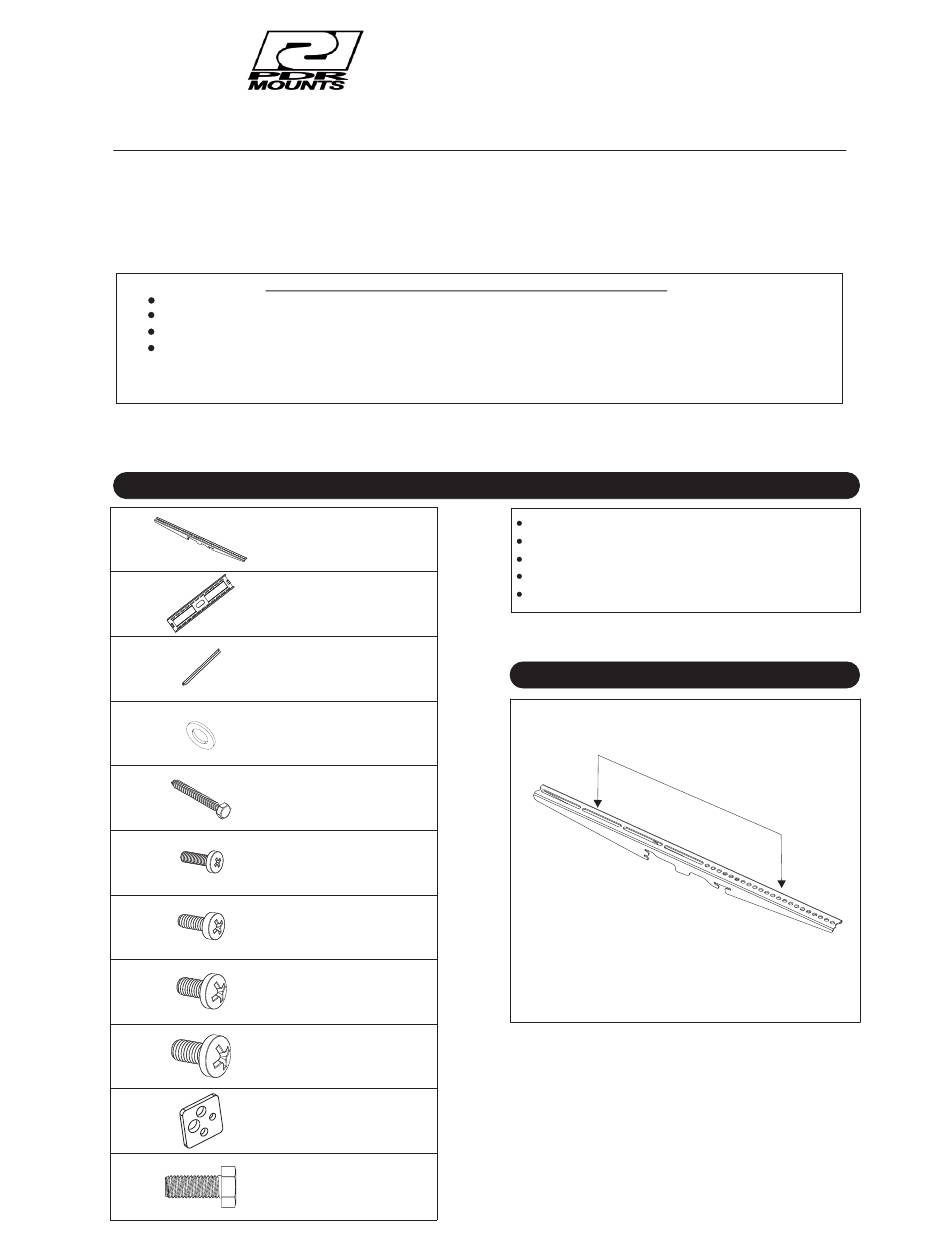

Parts Configuration Chart
A
Display bracket .... 2 pcs
B
Wall mount bracket...1 pc
C
Locking bar... 2 pc
D
5/16" Flat washers...6 pcs
E
5/16" x 2 1/2" Lag bolts ...6 pcs
F
5 mm x 16 mm Phillip screws...4 pcs
G
6 mm x 16 mm Phillip screws...4 pcs
H
8 mm x 16 mm Phillip screws...4 pcs
I
10-1.5 mm x 25 mm Phillip screws...4 pcs
J
Square multi-mount washers...4 pcs
K
10-1.25mm x 25mm hex head bolt...4 pcs
Features
Low profile 1 5/8"
Easy installation
16"/24"/36" wall stud mounting points
Flat or 5° tilt (no tools required)
Lateral movement from center for better viewing position
Mounting points for panel display models
Fig 1
Panel Display mounting slots
Top
1
Bottom
Advertisement
Table of Contents
Related Manuals for PDR PDM750F-11
Summary of Contents for PDR PDM750F-11
- Page 1 All PDR mounts and adapters carry a lifetime warranty against defects in material and workmanship. Check the PDR website for details @ www.PDRmounts.com. We are not liable for improper installation that results in damage to mounts, adapters or presentation equipment.
- Page 2 INSTALLATION LOCATION WARNING The wall where the wall mount is to be installed must be capable of long-term support of the total load of the panel display and wall mount. Measures should al so be taken to ensure sufficient strength to withstand the force of earthquakes, vi bration and other external forces.
- Page 3 1. FASTEN MOUNTING PLATE TO WALL The bracket must be secured to the wall studs capable of holding at least (4) times the weight of the unit. The wall bracket should be mounted at the same horizontal center line as the display center line ( viewing horizontal center line). Using the six lag bolts (E) and washers supplied (D) Level and secure the mounting plate to the center of the wall studs.
- Page 4 3. MOUNT THE DISPLAY TO THE WALL MOUNT BRACKET Lift the display with the brackets attached onto the wall plate. See Fig4 Position the top in either slot 1 for 5 deg tilt or slot 2 for flat mounting See Fig 5 and Fig 6 Insert the locking bar, (C) as shown in Fig 5 with the locking holes facing up to match the holes in the wall mount bracket (B) .
