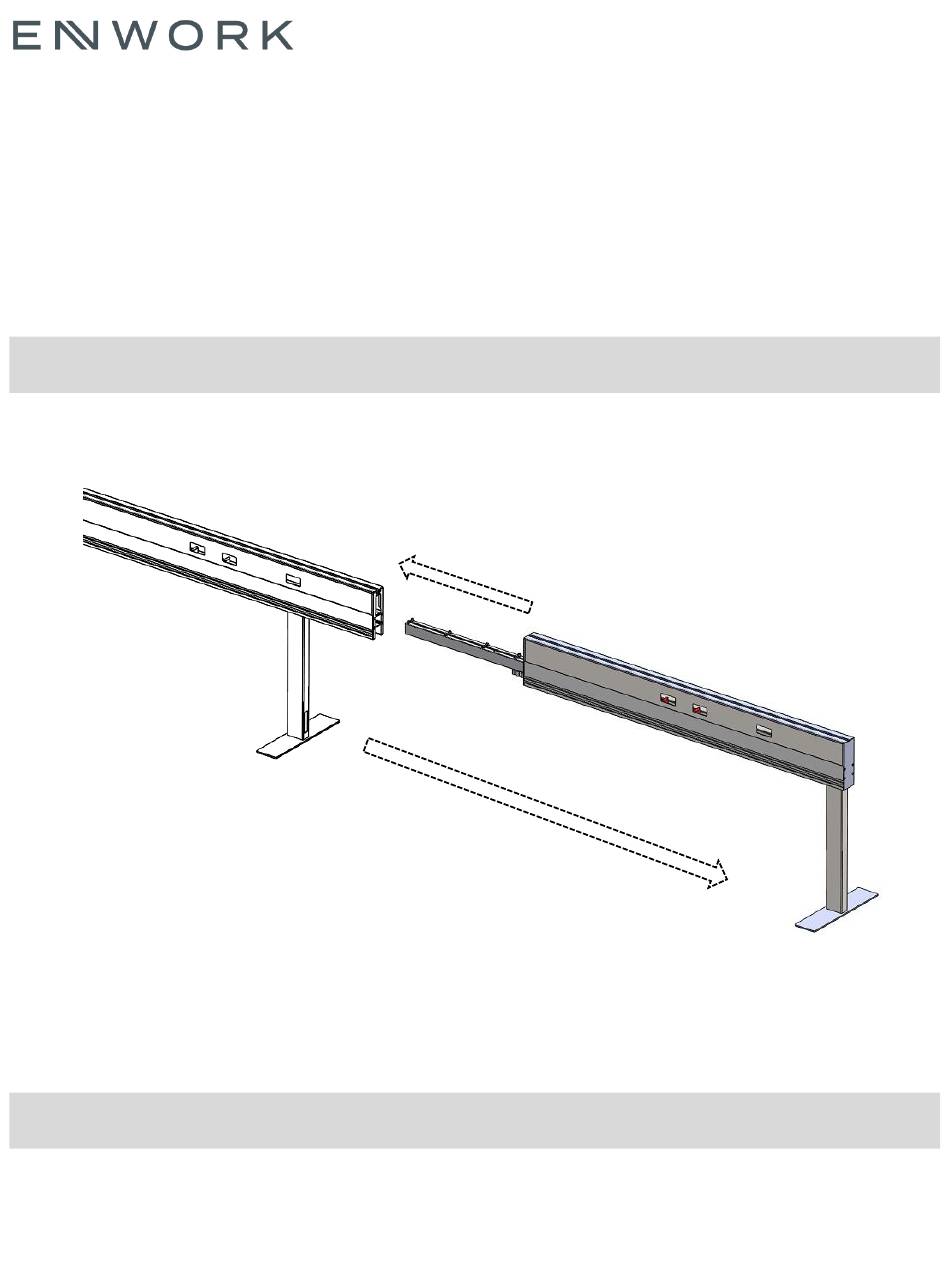

  • Page 1 Ambition Beams Add-on Kit Installation Guide Ambition Beam Add-On Kit // Rev A...
  • Page 2: Tools And Supplies Required

    INSTALLATION GUIDE 2) Tools and Supplies Required Drill/Driver 1/4” Hex Drive Bit or #2 Square Drive Bit Allen Wrench #2 Phillips Drive Bit 3/8” Nut Driver Bit Socket Wrench/Ratchet 5/16” Drill Bit Socket Wrench Extension 1/4” & 3/8” Socket Set...
  • Page 3 INSTALLATION GUIDE 2) Tools and Supplies Required Marker/Pen Level Hammer Punch...
  • Page 4 INSTALLATION GUIDE 1) Parts and Fasteners Included Aluminum Support Bar (1x) 5/16”-18 x 2 3/4” Socket 5/16” Square Nut (1x) Head Screw (1x) 10-24 x 3/8” Phillips Machine 1/4”-20 x 1/2” Hex Bolt (16x) 10-24 Hex Nut (2x) Screw (2x) Connection Block (2x) Jig for Support Bar Holes Jig for Connection Block Holes...
  • Page 5 INSTALLATION GUIDE 1) Parts and Fasteners Included 1-1/4” Socket Head Screw 1/4” Split Lock Washer (6x) #8-32 x .75, Flat Head (6x) Machine Screw Connection Block Plate (2x)
  • Page 6: Assembly Overview

    INSTALLATION GUIDE 3) Assembly Overview 1. Decide which end of the existing beam is receiving the add-on and remove the leg bolts to move the end leg temporarily, so that the beam is still supported. Step 1 2. Remove top cap, end cap, and beltways of existing beam, and keep for later.
  • Page 7 INSTALLATION GUIDE 3) Assembly Overview Power Block Removal 3b.) 1) Disconnect jumper(s). 2) Remove power block from brackets. 3) Remove the brackets from the beam by removing 4 screws. Jumper Power block Brackets...
  • Page 8 INSTALLATION GUIDE 3) Assembly Overview 4. Using the connection block jig provided, slide it onto the bottom of the beam as shown in red for clarity. Mark hole locations with a hammer punch or marker. Mark as many holes as available. Drill thru 1 wall using the 5/16”...
  • Page 9 INSTALLATION GUIDE 3) Assembly Overview 7. Slide the support bar into the opening. Line up the newly drilled holes from step 3. Finger tighten the 1/2” hex bolts in (8x). Step 7 8. With a mid-run end cap on the new received beam, slide it onto the support bar lining up the holes.
  • Page 10 Depending on your application, an additional mid- leg may be required – refer to your Enwork quotation or Enwork Price List for Ambition Planning – Configuration. Step 13...
