- Page 1 PAR64 10MM UV LED PAR user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 18.11.2015, ID: 276113 (V2)
-
Page 3: Table Of Contents
Features............................... 15 Installation..............................16 Starting up..............................20 Connections and controls........................23 Operation..............................26 7.1 Starting up the device........................26 7.2 Main menu............................26 7.3 Menu overview..........................31 7.4 Functions in 2-channel DMX mode................... 32 Technical specifications........................33 PAR64 10MM UV... - Page 4 Table of contents Plug and connection assignments....................34 Troubleshooting............................35 Cleaning............................... 37 Protecting the environment......................38 LED PAR...
-
Page 5: General Notes
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. PAR64 10MM UV... -
Page 6: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
References to other locations in this manual are identified by an arrow and the specified page number. In the electronic version of the manual, you can click the cross-reference to jump to the specified location. Example: See Ä ‘Cross-references’ on page 7. PAR64 10MM UV... -
Page 8: Symbols And Signal Words
General notes 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. - Page 9 General notes Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. PAR64 10MM UV...
-
Page 10: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used as an electronic illumination effect using LED technics. The device is designed for professional use and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage. - Page 11 Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged. PAR64 10MM UV...
- Page 12 Safety instructions DANGER! Electric shock caused by short-circuit Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician. WARNING! Eye damage caused by high light intensity Never look directly into the light source.
- Page 13 Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. PAR64 10MM UV...
- Page 14 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 15: Features

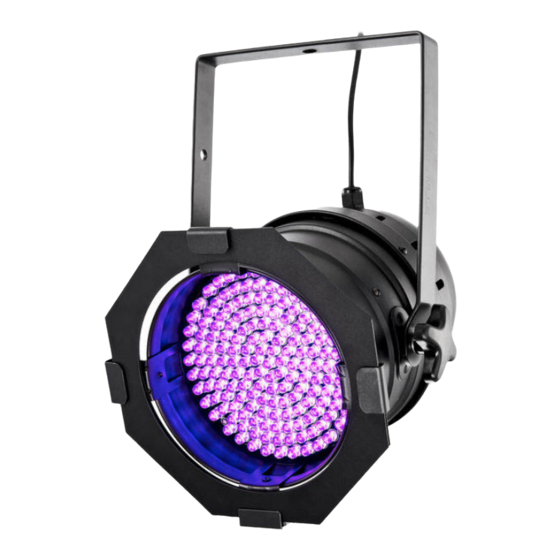

168 × UV LEDs Operation in stand-alone, master / slave or DMX mode Very simple operation via buttons and display on the unit Robust metal housing with detachable grille Ideal for clubs, bars, stages, exhibitions and many more applications PAR64 10MM UV... -
Page 16: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 17 Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. PAR64 10MM UV...
- Page 18 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the device standing or hanging upside down.
- Page 19 Installation Please note that this device must not be connected to a dimmer. PAR64 10MM UV...
-
Page 20: Starting Up
Starting up Starting up Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. LED PAR... - Page 21 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). PAR64 10MM UV...
- Page 22 Starting up Connections in master/slave When you configure a group of devices in master/slave mode, the first unit will control the mode other units for an automatic, sound-activated, synchronized show. This function is ideal when you want to start a show immediately. Connect the DMX output of the master device to the DMX input of the first slave device.
-
Page 23: Connections And Controls
Connections and controls Connections and controls Rear panel PAR64 10MM UV... - Page 24 Connections and controls 1 Locking screws for the mounting bracket. 2 Display. 3 [OK] button Confirms a selected value. 4, 5 Buttons , Increases / decreases the displayed value by one. 6 Power cord. 7 [M] button Calls the main menu or a submenu. 8 Bracket for floor placement or hanging.
- Page 25 Connections and controls 9 [DMX IN] DMX input. 10 [DMX OUT] DMX output. PAR64 10MM UV...
-
Page 26: Operation
Operation Operation 7.1 Starting up the device Connect the unit to the power grid to start operation. The device is immediately ready to use and operates in the last active mode with the last selected settings. 7.2 Main menu Menu operation Press [M] to open the main menu. - Page 27 Press [M]. Press one of the arrow keys repeatedly until the display shows ‘TEST’ . Press [OK]. This operating mode can be used to test the strobe effect speed ( ‘STRO’ ) and the dimmer set‐ ting ( ‘DIMM’ ), to change both settings and to operate the device in stand-alone mode. PAR64 10MM UV...
- Page 28 Operation Operating mode ‘Show/Master’ Press the [M] button. Press one of the arrow keys repeatedly until the display shows ‘LINE’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘MA’ . Press [OK]. Now you can select one of the 4 preprogrammed automatic shows. Use the arrow keys to select a value between 1 and 4 (the display shows ‘P-01’...
- Page 29 This setting is only relevant if the device is not controlled via DMX. When the display shows the desired value, press [OK] to confirm the selection. Then press [M] to return to the higher menu level. To return to the higher menu level without changes, press [M]. PAR64 10MM UV...
- Page 30 Operation Dimmer setting Press [M]. Press one of the arrow keys repeatedly until the display shows ‘SET’ . Press [OK]. Press one of the arrow keys repeatedly until the display shows ‘DIMM’ . Press [OK]. Now you can adjust the dimmer. Use the arrow keys to select a value between 0 and 255 the display shows ‘D000’...
-
Page 31: Menu Overview
Operation 7.3 Menu overview PAR64 10MM UV... -
Page 32: Functions In 2-Channel Dmx Mode
Operation 7.4 Functions in 2-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Strobe effect (0 % to 100 %) LED PAR... -
Page 33: Technical Specifications
168 × 10 mm LEDs (UV: 400 … 410 nm) Number of DMX channels Mains power supply 100 - 240 V , 50/60 Hz Power consumption 10 W Dimensions 225 mm × 390 mm × 280 mm Weight 2,1 kg PAR64 10MM UV... -
Page 34: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 35: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: PAR64 10MM UV... - Page 36 4. Check to see if the DMX cables run near or alongside to high voltage cables that may cause damage or interfer‐ ence to DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. LED PAR...
-
Page 37: Cleaning
The fan grids of the device must be cleaned on a regular basis to remove dust and dirt. Before cleaning, switch off the device and disconnect AC-powered devices from the mains. Use a lint- free damp cloth for cleaning. Never use solvents or alcohol for cleaning. PAR64 10MM UV... -
Page 38: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
