mismaTCh adaPTer 2 insTruCTions
Thanks for buying a Problem solvers mismaTCh2!
Clean up your handlebars with the MisMatch Adapter. Version 2 allows you to
connect your Shimano I-Spec™ compatible shifters to your Avid hydraullic
brake levers via SRAM's MatchMaker™ clamp (to perform the opposite
connection, see MisMatch Adapter Verson 1). Enjoy.
WARNING: CYCLING CAN BE DANGEROUS. BICYCLE PRODUCTS SHOULD
BE INSTALLED AND SERVICED BY A PROFESSIONAL MECHANIC. NEVER
MODIFY YOUR BICYCLE OR ACCESSORIES. READ AND FOLLOW ALL PRODUCT
INSTRUCTIONS AND WARNINGS INCLUDING INFORMATION ON THE
MANUFACTURER'S WEBSITE. INSPECT YOUR BICYCLE BEFORE EVERY RIDE.
ALWAYS WEAR A HELMET.
For additional technical and safety information, visit:
www.problemsolversbike.com/safety
ComPaTibiliTy/inTended use
The MisMatch2 is designed for use with Avid Matchmaker compatible brake
levers and Shimano I-Spec compatible shifters. These adapters will simplify and
unclutter your mountain handlebars.
Tools required
4mm Allen wrench
#2 Phillips head screwdriver
Torque wrench
1
ITEM NO.
DESCRIPTION
1
MisMatch Adapter 2 - left
2
MisMatch Adapter 2 - right
3
M5 x 10mm bolt
6400 West 105th Street / Bloomington, MN 55438 / www.problemsolversbike.com
2
3
QTY.
1
1
2
insTallaTion:
Remove the Right Shifter's I-Spec Integration Unit
NOTE: Let's be honest with ourselves—we're going to be messing with the
innards of a shifter. Make sure to be working in a clean, open space so you can
keep track of everything. If you've ever tried to find small replacement parts for
these types of components, you know: DON'T LOSE ANYTHING!
NOTE: We demonstrate this installation using a Shimano Saint Shifter
(SL-M820-I). While most of the steps are the same, we STRONGLY
RECOMMEND you visit Shimano's website to view the installation instructions
and diagram of your shifter: techdocs.shimano.com

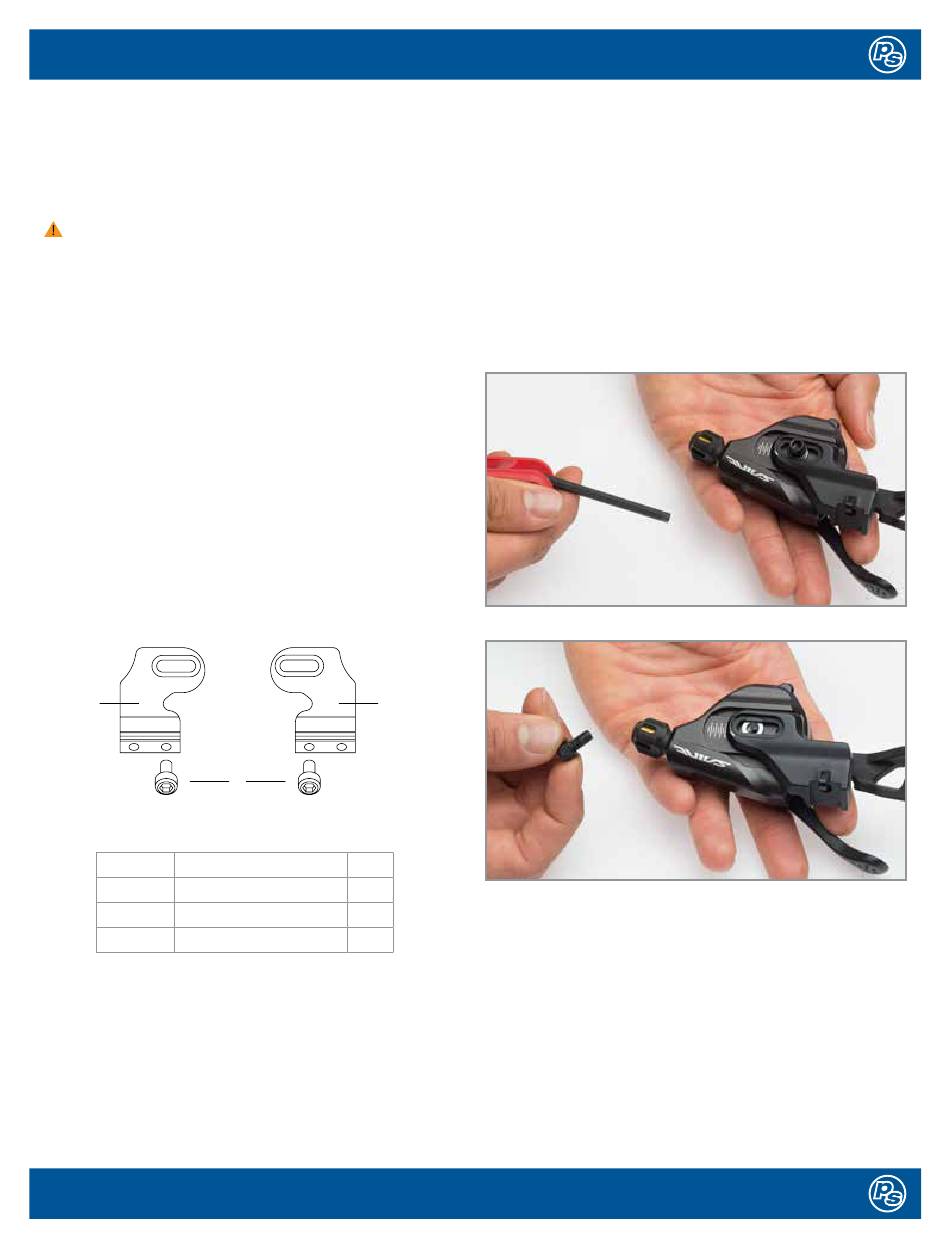

1. Start by removing the top bolt of the unit using a 4mm Allen wrench
(figures 1–2). Save this bolt; you're going to need it.
Figure 1
Figure 2
4743 10/13
Advertisement
Table of Contents
Related Manuals for SRAM MisMatch2
Summary of Contents for SRAM MisMatch2
-
Page 1: Tools Required
(figures 1–2). Save this bolt; you’re going to need it. For additional technical and safety information, visit: www.problemsolversbike.com/safety ComPaTibiliTy/inTended use The MisMatch2 is designed for use with Avid Matchmaker compatible brake levers and Shimano I-Spec compatible shifters. These adapters will simplify and unclutter your mountain handlebars. Tools required... - Page 2 mismaTCh adaPTer 2 insTruCTions Attach MisMatch Adapter to the Shifter 2. Flip over the shifter, identify and remove the four screws holding the bottom plate (figure 3). 5. Using the bolt you removed in Step 1, attach the Problem Solvers MisMatch adapter to the shifter (figures 6–7).
- Page 3 PROBLEM SOLVERS product against ™ instructions (www.sram.com/avid), attach the MisMatch Adapter to the brake defects in materials and workmanship for two (2) years from the original date lever using the M5 x 10mm bolt (figures 8–10). Torque: 5Nm (44 in-lb).
