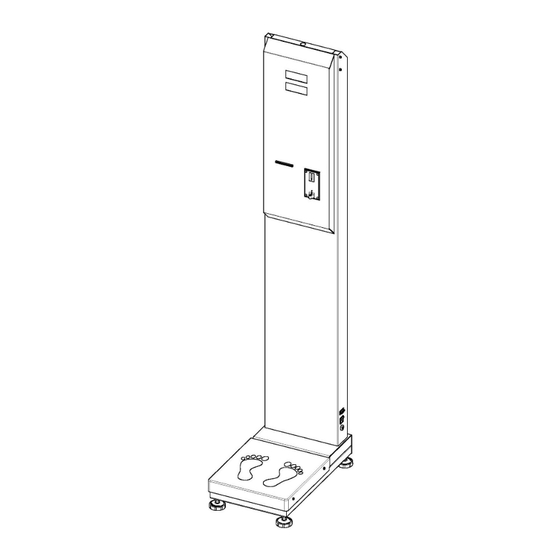

- Page 1 DHM-15B HEIGHT AND WEIGHT MACHINE Model: DHM-15B Ultrasonic Electronic Height and Weight Body Scale USER MANUAL Installation and Adjustment THANKS FOR USING OUR HEALTHCARE PRODUCTS...
- Page 2 DHM-15B HEIGHT AND WEIGHT MACHINE Mainframe- Saddle- Picture 1 Picture 2 Height sensor Blood Pressure Picture 3 picture 4 picture 5 picture 6 Installment instruction: First: Open the packaging bag and check all the components. Second: Connect mainframe and saddle with M8 screw (picture1), insert the sensor to...
-
Page 3: Operation
DHM-15B HEIGHT AND WEIGHT MACHINE the bottom of the saddle. (picture2) Third: Insert height-measuring component to the two holes on the top of the mainframe, then fix them with four M4 screws. Then connect the wire of the height-measuring component with the mainframe. (picture6) Diagram of the main board: ... - Page 4 DHM-15B HEIGHT AND WEIGHT MACHINE The results can be spoken out and printed. (Please refer to the measuring diagram as follows) First Second Third Fourth Please pay attention when measuring: First: Put the coin. After entering into the measuring state, if there is no measuring in 20 seconds (nothing on saddle), the scale will exit measuring state automatically.
- Page 5 DHM-15B HEIGHT AND WEIGHT MACHINE continuously. Please read the functional setting (function code 6) to get the method of setting volume and time interval of pronunciation “welcome”. Print: It can print the measurement results and the total calculating figures. Color lights control: Press ESC to turn on or turn off the color lights when the machine is not in the working condition (not measure or adjust).
- Page 6 DHM-15B HEIGHT AND WEIGHT MACHINE Display 500 in the height screen means the present corrected value is 500 (range: 1-999).Display 0.00 in weight screen means the present weight. Put something with confirmed weight on the saddle. After a stable weight display, press + or – to adjust the display data.
- Page 7 DHM-15B HEIGHT AND WEIGHT MACHINE Choose menu code 1-06 ，press ENT into adjustment state. Display 1 in the weight screen is the present parameter(scope 0-1).Displaying 1 means speak out the results after measurement. 0 means scale will not pronounce.1 means the scale speaks out the results after measurement.
- Page 8 DHM-15B HEIGHT AND WEIGHT MACHINE Height Ideal Normal Weihgt weight weight range Coin setting: Choose menu code 1-10 ，press ENT into adjustment state. Display 1 in the weight screen is the present coin machine parameter (scope: 0-10).0 means no need to put coin, 0 means set up the needed coin quantity.
- Page 9 DHM-15B HEIGHT AND WEIGHT MACHINE Renew set of machine: Choose menu code 1-12 ，show 8888 on the screen. Press ENT to renew the set of machine. Press ESC to exit. Volume adjustment: Direct rotation of the upper left corner of the circuit board...
- Page 10 DHM-15B HEIGHT AND WEIGHT MACHINE The Settings of Coin Acceptor 1. Setting a) Turn on the machine b) Move the switch of “MGM, NOM, MAX” at the rear part of the coin acceptor to the position of “NOM”, and then move the switch of “set, start”...
- Page 11 DHM-15B HEIGHT AND WEIGHT MACHINE loosening, or the coin is stuck in the acceptor.
