2.5. HANDLING & STORAGE

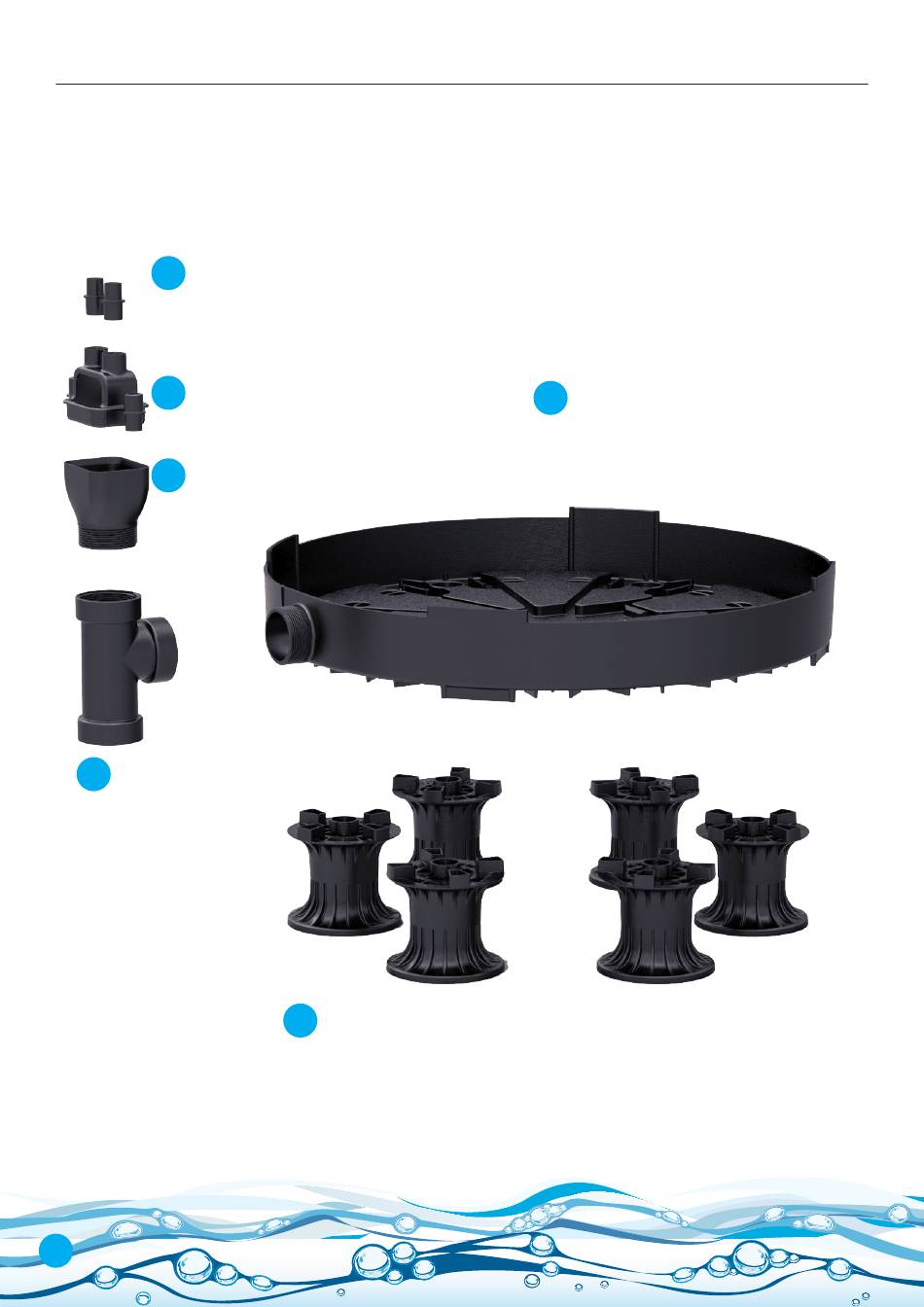

When unpacking, ensure all parts have been supplied. The
UNITRAY Safe Tray System comes with the following parts:
Adaptors - select the tapered adaptors for standard
1
15mm and 20mm NZ copper relief drain diameters.
NB the adaptors pre-attached to Tundish cap must
only be used for smaller diameter pipe such as
KemPress™ or imported copper pipe.
Tundish cap - aligns relief drains with
2
regulated "air gap" (AS/NZS 3500.4
section 5.12.3(h)).
Tundish - easy connect with 50 mm regulated
3
universal drain outlet as per AS/NZS 3500.4
section 5.4.4.1(b).
5
T-Connector - Screw-
on 50 mm BSP female
T-Connector. Also suitable
for fusion welding and
Fernco connections.
4
I October 2017
Elevating post kit* - sturdy 100 mm polymer post set.
6
*Optional - supplied separately.
UNITRAY - polymer safe tray with
4
integrated outlet and elevating ribs to
allow water and airflow as per AS/NZS
3500.4 section 5.4.5 (b).
