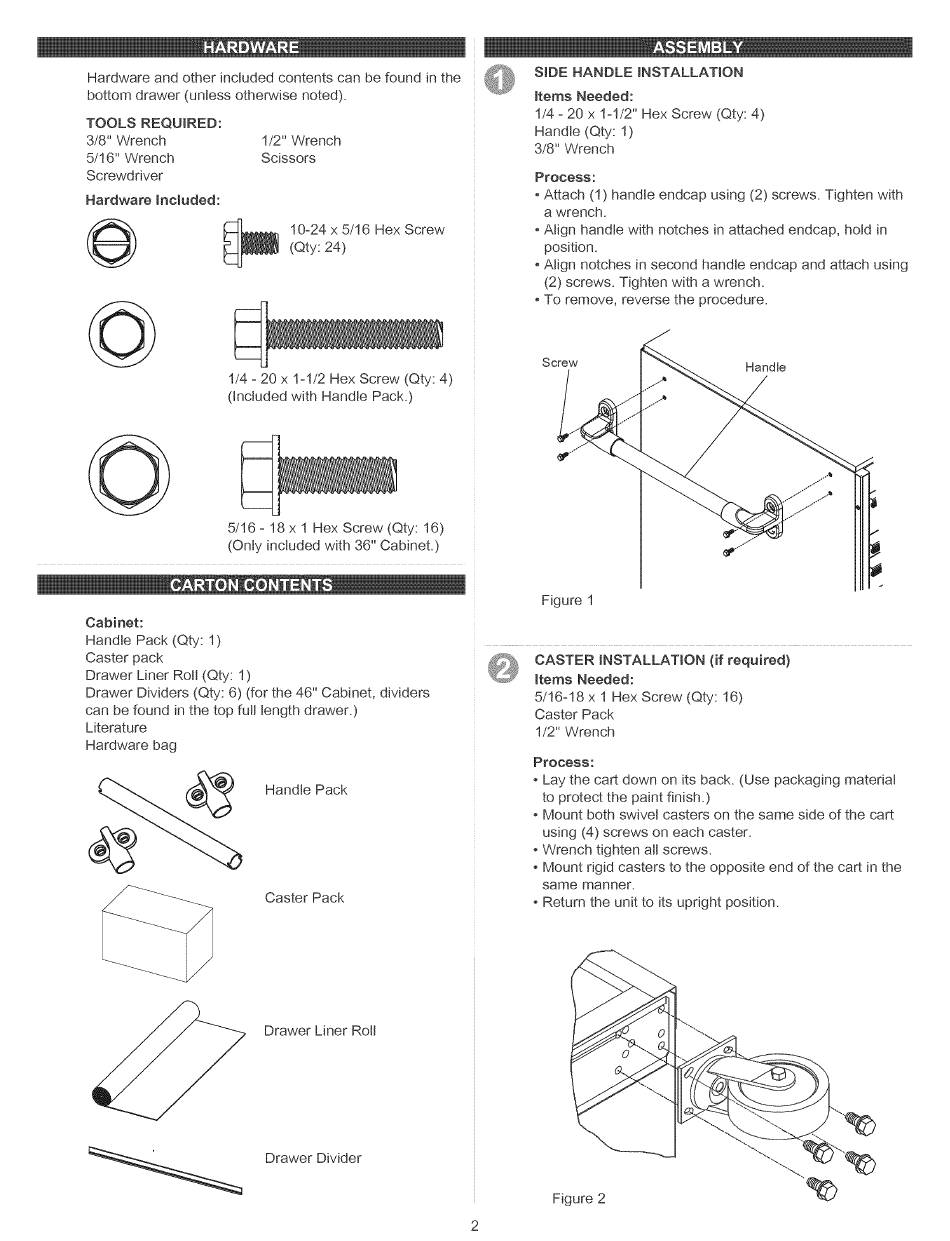

Tools Required; Side Handle; Caster Installation - Craftsman 45278 Operator's Manual

Hardware and other included contents can be found in the
bottom drawer (unless otherwise noted).
TOOLS REQUIRED:
3/8" Wrench 1/2" Wrench
5/16" Wrench Scissors
Screwdriver
Hardware included:
(_ _ 10-24 x 5/16 Hex Screw
(Qty: 24)
1/4 - 20 x 1-1/2 Hex Screw (Qty: 4)
(Included with Handle Pack.)
5/16 - 18 x 1 Hex Screw (Qty: 16)
(Only included with 36" Cabinet.)
Cabinet:
Handle Pack (Qty: 1)
Caster pack
Drawer Liner Roll (Qty: 1)
Drawer Dividers (Qty: 6) (for the 46" Cabinet, dividers
can be found in the top full length drawer.)
Literature
Hardware bag
Handle Pack
Caster Pack
± .,$ T
SIDE HANDLE INSTALLATION
Items Needed:
1/4 - 20 x 1-1/2" Hex Screw (Qty: 4)
Handle (Qty: 1)
3/8" Wrench
Process:
- Attach (1) handle endcap using (2) screws. Tighten with
a wrench.
Align handle with notches in attached endcap, hold in
position.
Align notches in second handle endcap and attach using
(2) screws. Tighten with a wrench.
To remove, reverse the procedure.
Screw
Handle
Figure 1
CASTER INSTALLATION (if required)
Items Needed:
5/16-18 x 1 Hex Screw (Qty: 16)
Caster Pack
1/2" Wrench
Process:
- Lay the cart down on its back. (Use packaging material
to protect the paint finish.)
Mount both swivel casters on the same side of the cart
using (4) screws on each caster.
Wrench tighten all screws.
Mount rigid casters to the opposite end of the cart in the
same manner.
Return the unit to its upright position.
Drawer Liner Roll
Drawer Divider
Figure 2
