VSI 1000-X Series Quick Setup Manual

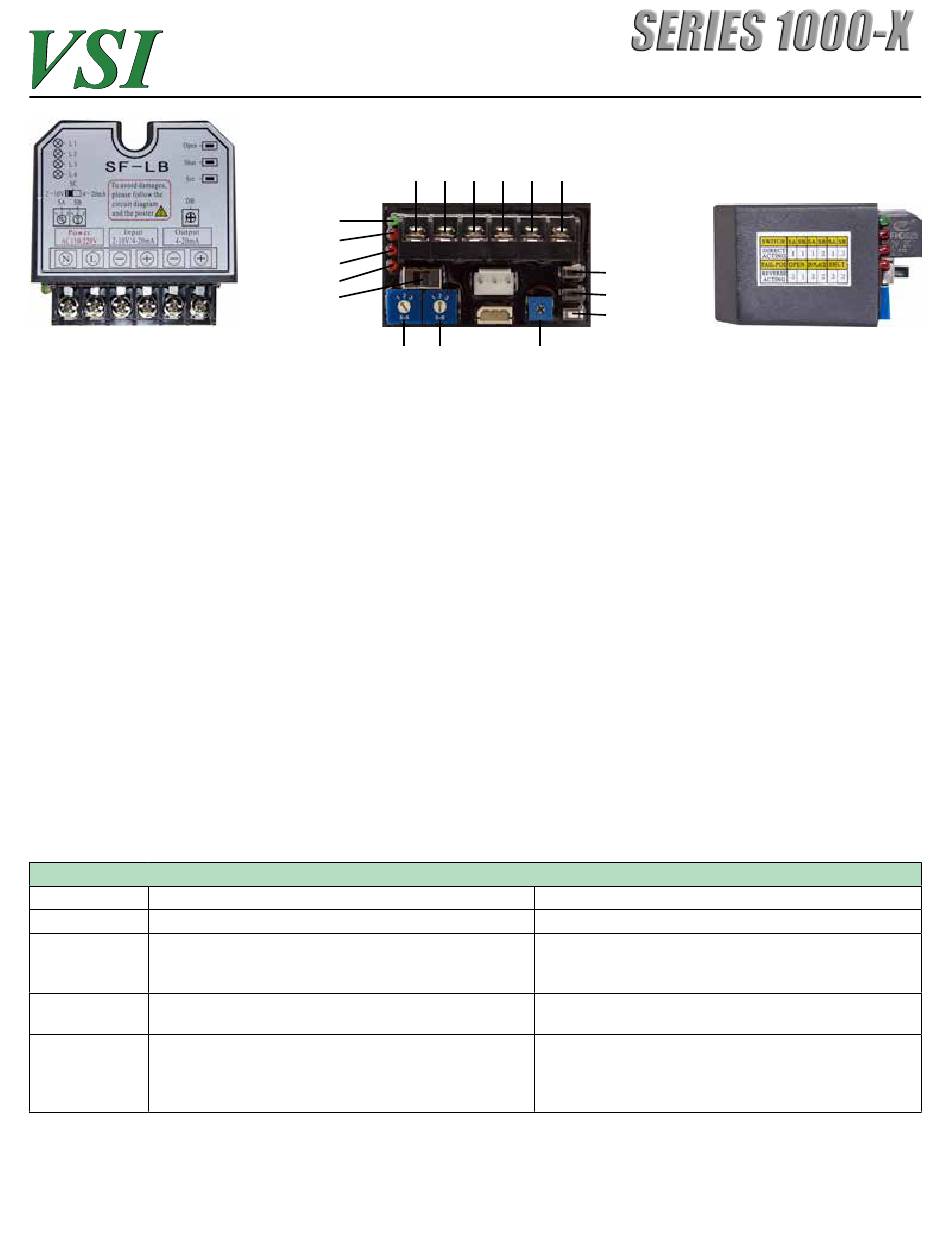

FIGURE A
The SF-LB control pack, if shipped together with a Series 1000-X actuator, is factory calibrated and
set for 90° rotation and no adjustment should be needed. However, if you are replacing the SF-LB
or the factory settings do not conform to your actuator/valve application, some adjustment may be
necessary.

INITIAL SETUP

If the SF-LB is not installed – install in the actuator by plugging in the two cables into the unit. Con-
nect the appropriate power to terminals 1&2. Connect the control signal to terminals 3&4 and note
that the polarity must be positive and negative.
If feedback is being used connect the wiring to terminals 5&6. The SF-LB provides position feedback
of 4-20mA.
At this point the Green LED "L1" should be illuminated. If red LED "L2" is illuminated then the control
signal is faulty or SC is not set correctly for your control signal. Ensure that SC is set for your applica-
tion control signal (2-10V or 4-20mA). See the chart below for failure mode conditions on the SF-LB
control pack. Your actuator should be ready to operate.
LED
LED-1 (GREEN) POWER IS PRESENT ON INPUT TERMINALS
LED-2 (RED) CONTROL SIGNAL IS WRONG OR NOT PRESENT
LED-3 (RED) POTENTIOMETER IS NOT CALIBRATED WITH ACTUATOR
LED-4 (RED) OVERTORQUE CONDITION PRESENT - VALVE BINDING,
OR MANUAL OVERRIDE HAS BEEN USED AND
ACTUATOR IS OUT OF SYNC WITH CONTROLLER
NOTE: THE ACTUATOR WILL NOT OPERATE WHEN MANUAL OVERRIDE PUSH BUTTON IS DEPRESSED
POWER CTRL
- +
LED 1
LED 2
LED 3
LED 4
SC
SA SB
SF-LB CONTROL PACK LED'S
CAUSE DESCRIPTION
OUTPUT
FEED
BACK
- + - +
OPEN
SHUT
SET
FIGURE B
DB
ALL IS NORMAL - NONE NEEDED
CHECK SC SWITCH TO ENSURE PROPER CONTROL
SIGNAL IS SELECTED - CHECK TO ENSURE SIGNAL IS
RE-CALIBRATE POTENTIOMETER PROCEDURE IN IOM
CHECK TO MAKE SURE VALVE IS NOT BINDING. RESET
CONTROL PACK BY ROTATING S-A FROM 1 TO 2 AND
BACK TO 1, or REMOVE POWER TO THE ACTUATOR AND
SF-LB QUICK SETUP GUIDE
FIGURE C
REMEDY
PRESENT
(CALL FOR ASSISTANCE)
REPLACE
