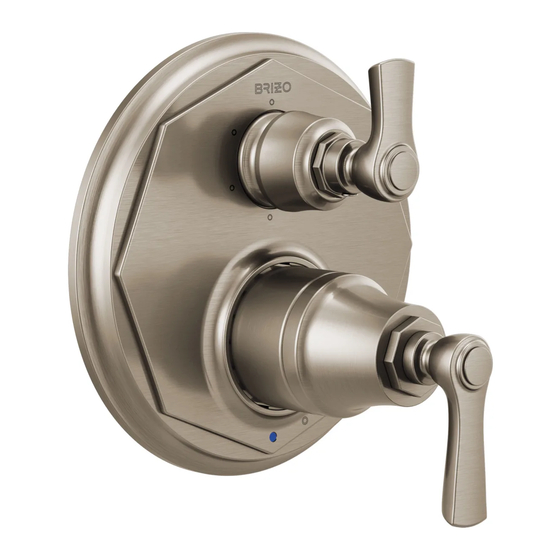

Brizo MultiChoice T75 Series Installation Instructions Manual

T75561
T75661
Write purchased model number here.
For easy installation of your Brizo
will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings,care, and
maintenance information.
Table of Contents:
Warranty ............................................................................. Page 2
Installation Instructions ....................................................... Pages 3 - 6
Maintenance ....................................................................... Page 7
Replacement Parts ............................................................. Pages 9 - 10
CAUTION: This system/device must be set by the
installer to ensure safe, maximum temperature.
Any change in the setting may raise the discharge
temperature above the limit considered safe and
may lead to hot water burns.
NOTICE TO INSTALLER: CAUTION!–As the
installer of this valve, it is your responsibility
to properly INSTALL and ADJUST this valve
per the instructions given. This valve does
not automatically adjust for inlet temperature
changes, therefore, someone must make the
necessary temperature knob adjustments at
the time of installation and further adjustments
may be necessary due to seasonal water
temperature change. YOU MUST inform the
owner/user of this requirement by following the
instructions. If you or the owner/user are unsure
how to properly make these adjustments, please
refer to page 5 and if still uncertain, call us at
1-877-345-BRIZO (2749).
After installation and adjustment, you must affix
your name, company name and the date you
adjusted the temperature knob to the caution label
provided and apply or attach the label to the back
10/19/2016
faucet you
®
You May Need
side of the closest cabinet door and the warning
label to the water heater. Leave this Instruction
Sheet for the owner's/user's reference.
WARNING: This thermostatic bath valve is
designed to minimize the effects of outlet water
temperature changes due to inlet pressure and
temperature changes, commonly caused by
dishwashers, washing machines, toilets and
the like. It may not provide protection from hot
water burns when there is a failure of other
temperature controlling devices elsewhere
in the plumbing system, if the temperature
knob is not properly set or if the hot water
temperature is changed after the settings
are made or if the water inlet changes due to
seasonal changes.
WARNING: Do not install a shut-off device on
either outlet of this valve. When this type of
device shuts off the water flow, it can defeat
the ability of the valve to balance the hot and
cold water pressures.
1
MultiChoice
with Diverter
Installation Instructions
Owners Manual
T75 Series
Valve Trim
®
82666 Rev. D
