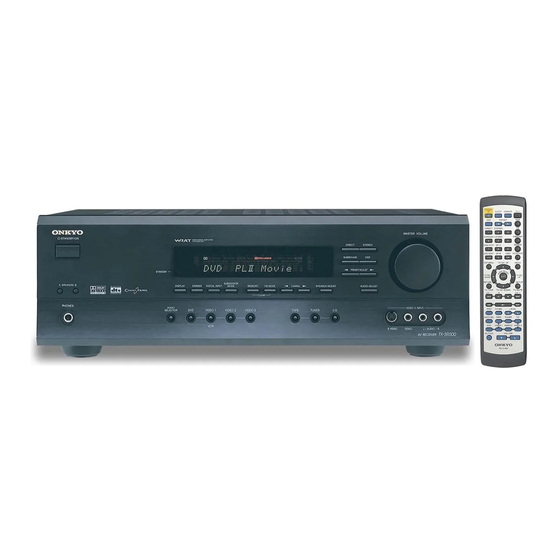

TX-SR500
Introduction
• This Guide describes basic operation of this receiver and connected devices (CD, DVD etc.). For further information about the advanced
functions of this receiver, please refer to the main instruction manual.
• This Guide does not explain connection details for the unit's rear panel. Please refer to pages 10-16 of the main instruction manual for
correct connection information. Otherwise, the entire A/V system may not work properly.
• A remote controller is used in the examples described here. For more information on the remote controller, refer to the main instruction
manual.
Important notes
• If MUTING function is activated, the sound will be muted. Make sure MUTING is set to OFF.
• If the headphones are connected, no sound will be heard from the speakers. Do not connect headphones if you wish to listen
to the sound from the speakers.
ANTENNA
AM
DIGITAL INPUT
VIDEO 2
IN
REMOTE
OPTICAL
COAXIAL
CONTROL
2
1
IN
OUT
IN
IN
L
SUBWOOFER
PRE OUT
R
CD
TAPE
VIDEO 2

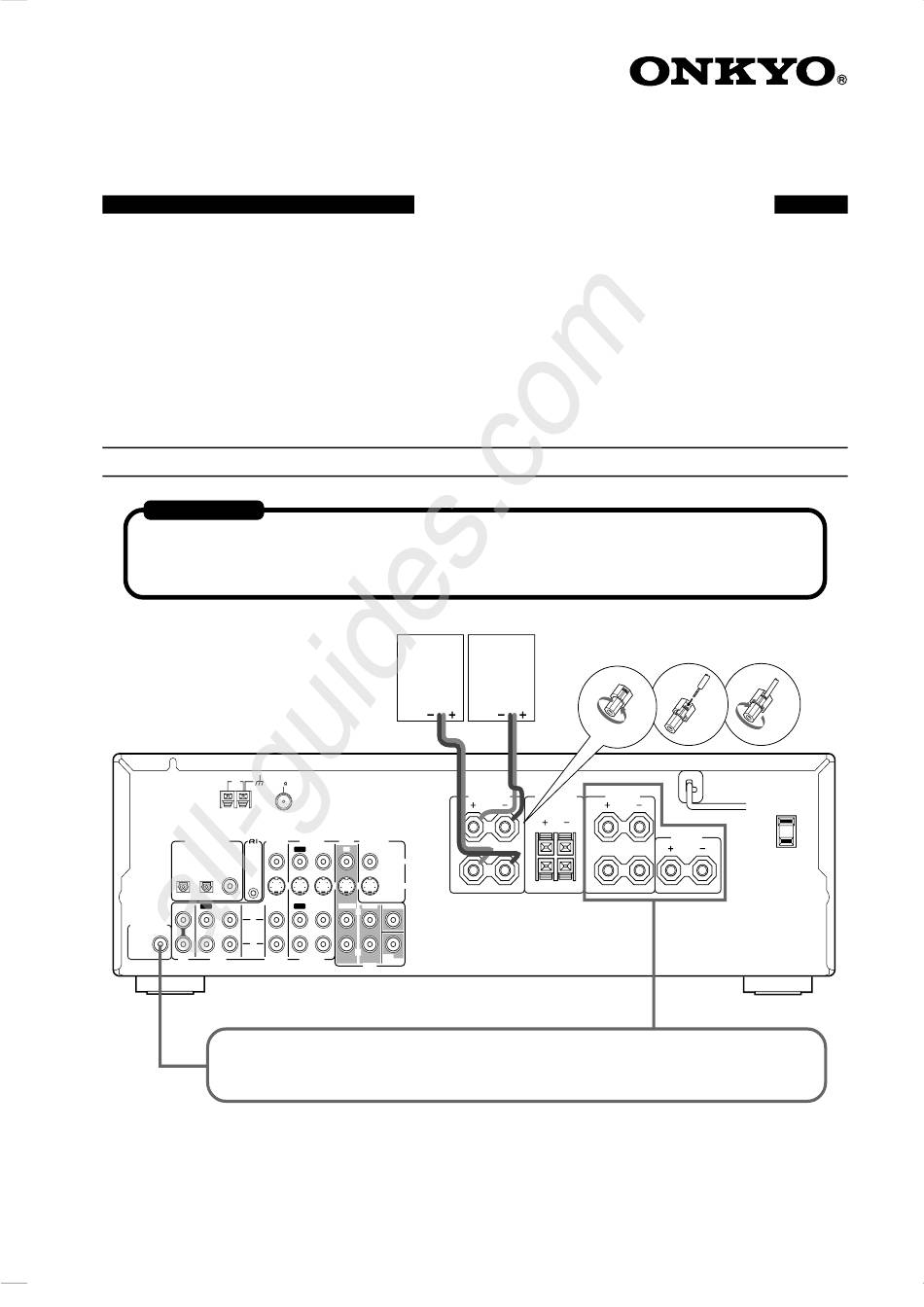

To enjoy surround sound, place the speakers properly as described in "Positioning speakers/
Connecting speakers" on pages 12-13, and make necessary settings as described in "Speaker setup" on
pages 18-20.
All manuals and user guides at all-guides.com
Basic Operation Guide

Enjoying audio and visual sources

Front right
speakers
FM
75
L
VIDEO 1
DVD
MONITOR
OUT
OUT
IN
IN
VIDEO
R
S VIDEO
OUT
IN
FRONT
SURR
CENTER
L
R
SUB
VIDEO 1
WOOFER
DVD
Front left
1.
speakers
FRONT
FRONT
SURROUND
SPEAKERS A
SPEAKERS B
SPEAKERS
L
L
R
R
2.
3.
AC OUTLET
CENTER
SPEAKER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX-SR500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Onkyo TX-SR500

Summary of Contents for Onkyo TX-SR500

  • Page 1 All manuals and user guides at all-guides.com TX-SR500 Basic Operation Guide Introduction • This Guide describes basic operation of this receiver and connected devices (CD, DVD etc.). For further information about the advanced functions of this receiver, please refer to the main instruction manual.
  • Page 2 SP B The video appears on the monitor TV. To control an Onkyo DVD player 1 Make z connection (see page 16 of the main manual). 2 Press DVD, then press the desired operation button (see page 34 of the main manual).
  • Page 3 “Setting the digital inputs” on page 22. Play a CD. 6.-2. To control an Onkyo CD player SP A/ 1 Make z connection (see page 16 of the main manual). 2 Press CD, then press the desired operation button (see page 35 of the main manual).
  • Page 4 All manuals and user guides at all-guides.com Enjoying the FM/AM radio Make sure that the power to the TX-SR500 has been turned on, and the antenna connections have been made correctly. (See pages 14 and 15 of the main manual.) Also, make sure that broadcast stations have been programmed as presets.
