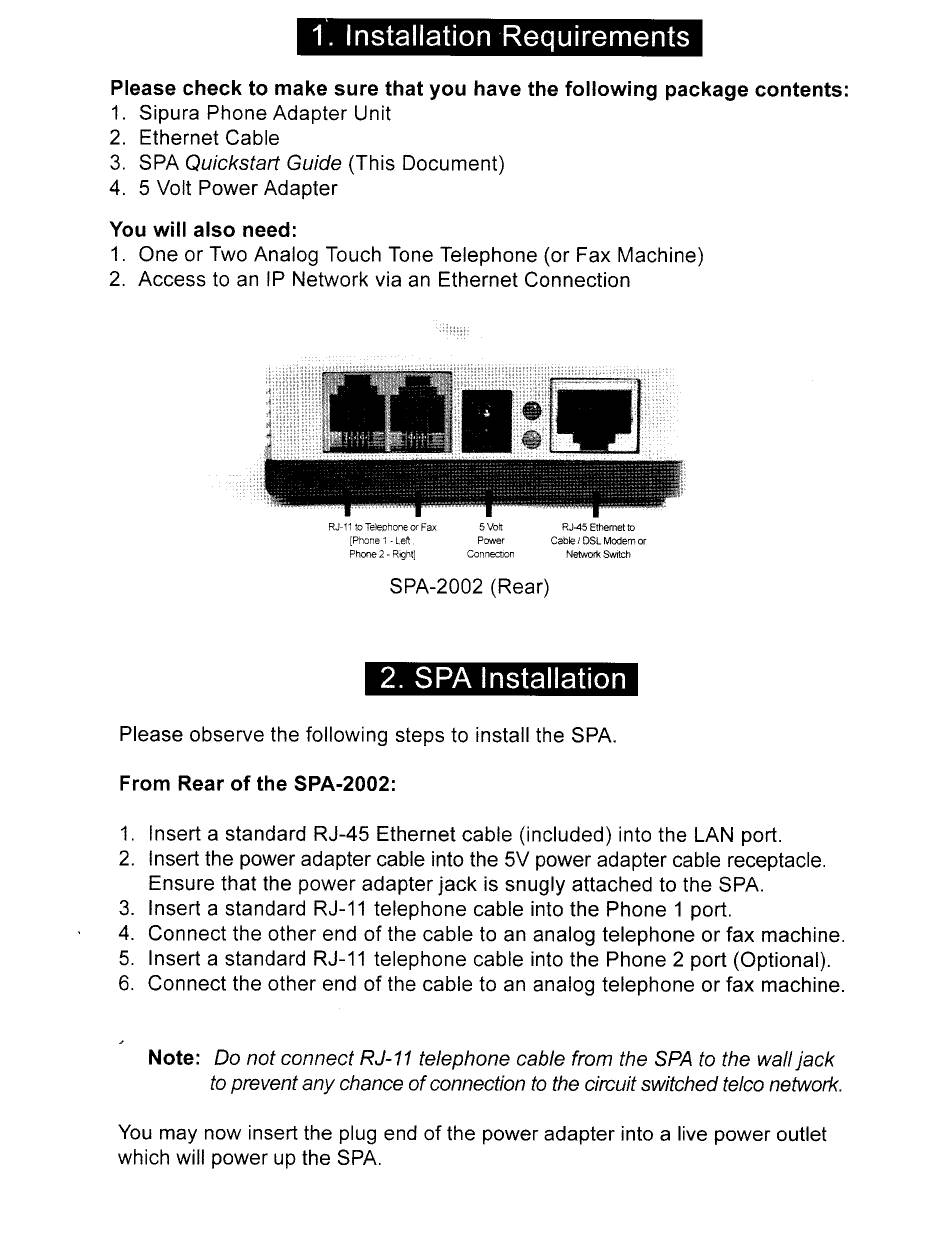

Sipura SPA-2002 Quick Start Manual

Please check to
make sure that
you
have the
following
package contents:
1.
Sipura Phone Adapter Unit
2.
Ethernet Cable
3.
SPA
Quickstarl Guide (This Document)
4.
5
Volt Power Adapter
You
will also
need:
1.
One or Two Analog Touch Tone Telephone (or Fax Machine)
2.
Access to an lP Network via an Ethernet Connection
RJ-1
I
to i=eleohone
o.
Fax
lPhone
1 -
Lelt
Phse
2 -
R€itl
SPA-2002 (Rear)
Please observe the following steps to install the
SPA.
From Rear of the SPA-2002:
1.
Insert
a standard RJ-45 Ethernet cable (included) into the LAN
port.
2.
Insert the power adapter cable into the 5V
powef adapter cable receptacle.
Ensure
that the power adapter jack is snugly attached to the
SPA.
3.
lnsert a standard RJ-11 telephone cable
intothe
Phone
1
port.
4.
Connect the other end of the cable to an analog telephone or fax machine.
5.
Insert a standard RJ-11 telephone cable into the Phone 2 port (Optional).
6.
Connect the other end of the cable to an analog telephone or fax machine.
Note: Do
not
connect RJ-1l tetephone
cable
from the
SPA
fo
the
watljack
to
prevent any chance of connection to the circuit switched telco
netwo*.
You may now insert the plug end
of
the power adapter into a live power outlet
which
will power
up
the
SPA.
svoh
RJ4sEthenetb
PMr
Cable/DslModemor
CFnndon
Ntulk
Ssfth
