Heat Demon 210171 Installation Instructions

Seat Heater Installation Instructions:

1. Remove the motorcycle seat.
2. Remove the staples in the back half of the seat, so the vinyl/leather can be rolled back.
3. Choose the placement of the seat heater. Route the seat heater power wire to the bottom of the seat.
Note: Removing foam and drilling a hole through the bottom of the seat may make installation easier.
4. Remove the paper backing from the adhesive and lay the heater in position.
Make sure to press down on the heater to insure a good adhesion between the seat and the seat heater.
Note: A thin layer of foam may be placed over the top of the heater to reduce the visibility of the heater through the
seat cover.
5. For the dual switch kit, repeat step 1 through 4 for the second seat heater.

Installing the Switch Panel:

Note: Pull the seat cover tight over the seat and proceed with step 1.
1. Unscrew the bolts from the front panel, and separate the switch panel/wire harness from the back panel.
2. Using the back panel, mark the preferred switch placement on the seat. Then use the back panel as a stencil to cut
out the needed holes.
3. Remove enough foam the seat to house the switches, and make a small tunnel from the switch location to the
bottom of the seat to run the wire harnesses through. You will need to make a hole in the plastic bottom of the seat
to thread the wires through.
Note: Use the holes cut in the seat cover in step 1 to locate where to remove the foam from the seat.
Hi/Low Seat Switch
Installation Instructions
Thank you for purchasing your new Heat Demon Product!
Warning: For use on seats that have removable covers only.
210171, 210172

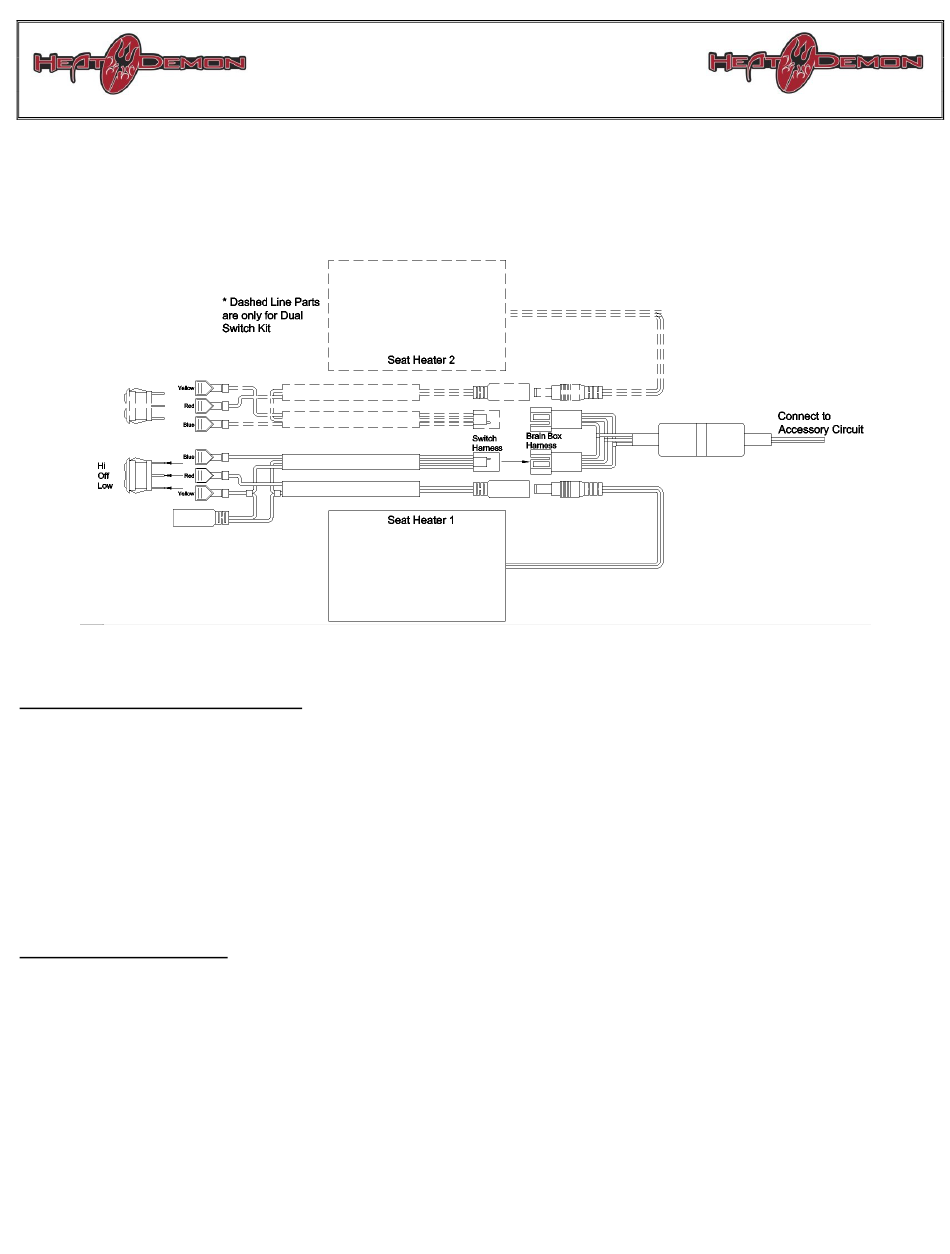

Figure 1
909171 Rev A 4/3/2013
