Page 1: User Manual

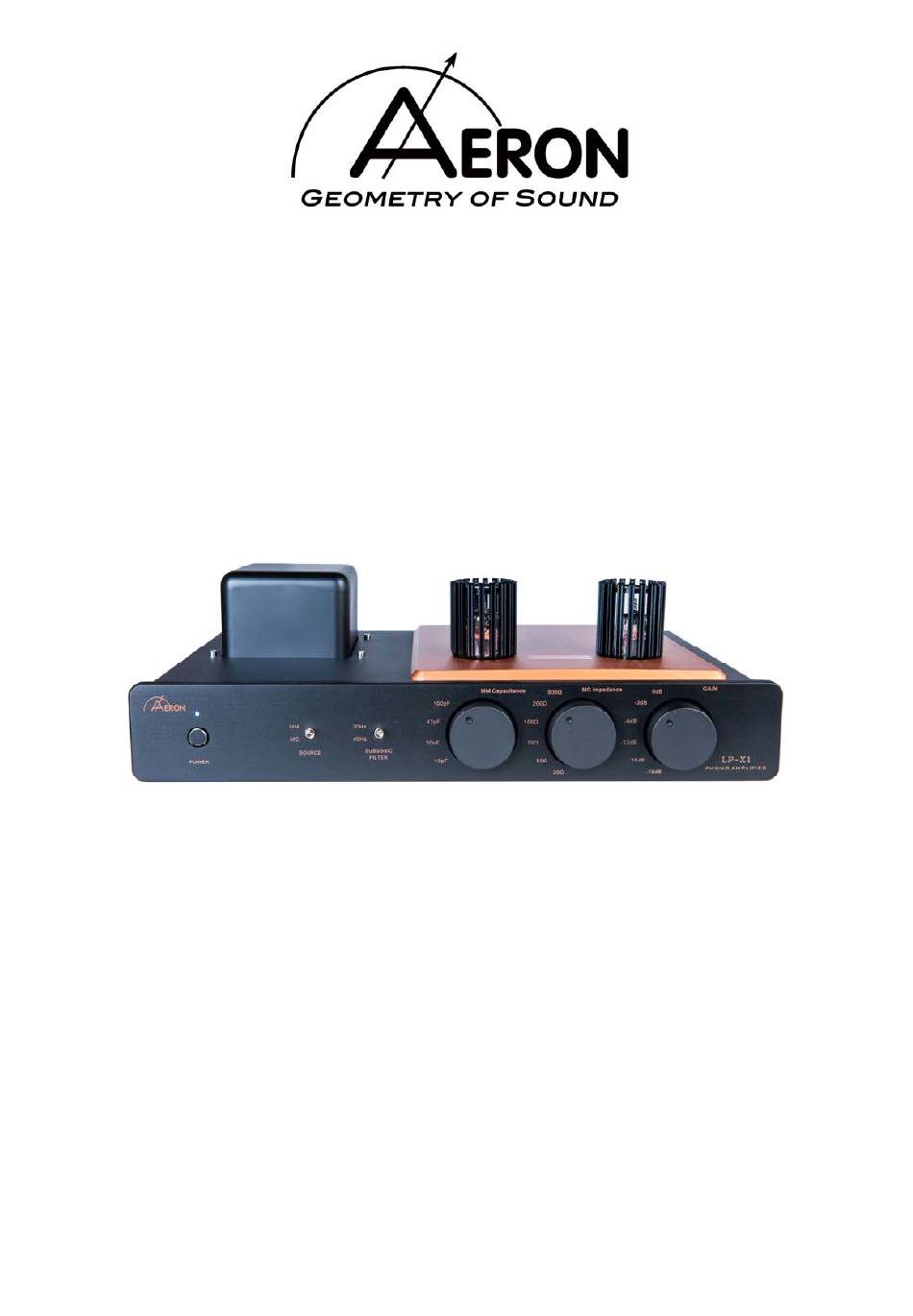

LP-X1 MM/MC Audiophile Grade Tube Phono Preamplifier USER MANUAL Manual Rev 1.1 2016... -
Page 2: Table Of Contents
Contents Preface Illustrations Safety Notice Installation In your System Connections AC Power Connection Rear Panel Connections Operation Power-up Procedure Front Panel Control Function Maintenance Tube Replacement Servicing Cleaning Disposal and Recycling Guidelines Limited Warranty Specifications... -
Page 3: Preface
Before use we encourage you to please read this manual thoroughly to properly acquaint yourself with its features. We hope you enjoy listen- ing to Aeron product as much as we have had the pride that we have taken in manufacturing this fine receiver for your listening pleasure. -
Page 4: Illustrations
Illustrations Front Panel Power On/Off Button MM or MC Input Selector Subsonic Filter Selector MM Capacitance Selector MC Impedance Selector Gain Control ① ④ ② ③ ⑤ ⑥ Rear Panel MC Input MM Input Grounding Terminal RCA Output AC Power Input Voltage Selector ①... -
Page 5: Safety Notice
NEVER use flammable or combustible chemicals for cleaning audio components. NEVER wet the inside of this component with any liquid. If a liquid substance does enter your unit, immediately disconnect it from the AC mains and take it to your Aeron Dealer for inspection. -
Page 6: Installation
If the unit is to be operated in an enclosed equipment cabinet, an exhaust fan is desirable so as not to operate the LP-X1 in overheated ambient air. The “ambient” operating temperature should never exceed 120... -
Page 7: Connections
LP-X1 and the preamplifier will be compromised. For the very best sonic performance, the LP-X1 should be connected to its own AC power circuit branch, protected by a over 5 amp breaker. The other audio equipment should be connected to a different power circuit and breaker. -
Page 8: Operation
Press the “Power” button to turn unit ON / OFF General Notes about Usage Turn off the LP-X1 wait at least five minutes before turning it on again. This brief cool down period will reduce stress on the output tubes and potential damage to them. -
Page 9: Front Panel Control Function
Output level can be adjust on front Panel. Subsonic Subsonic filter can reduce unwanted subsonic signal in order to reserve the am- plifier power. LP-X1 provide two level of subsonic filter 20Hz & 40 Hz. For normal setting, we recommend using 20Hz subsonic filter. -
Page 10: Maintenance
Maintenance Tube Replacement As usual, the audio tubes used in LP-X1 can last for 10,000 hours or above. If the tube does not glow, can change out tube for same model, The models that used in LP-X1of audio tubes: (1) 6N1, (2) 12AX7 CAUTION: If misuse the tube or re-placement the tubes by yourself, the machine have cause any malfunction, will not be eligible for warranty. -
Page 11: Limited Warranty
The authorized importing retailer or distributor has accepted the responsi- bility for warranty of Aeron products sold by them. The specific terms and remedies for fulfillment of the Limited Warranty may vary from country to country. -
Page 12: Specifications
