Aeron A-165 User Manual

Aeron A-165 User Manual

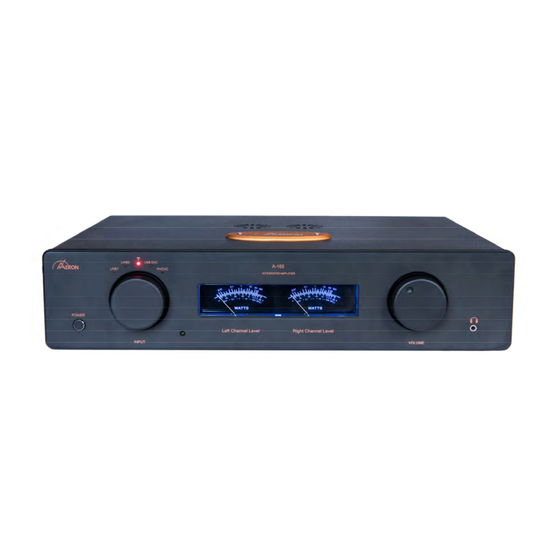

Hybrid integrated amplifier

Advertisement

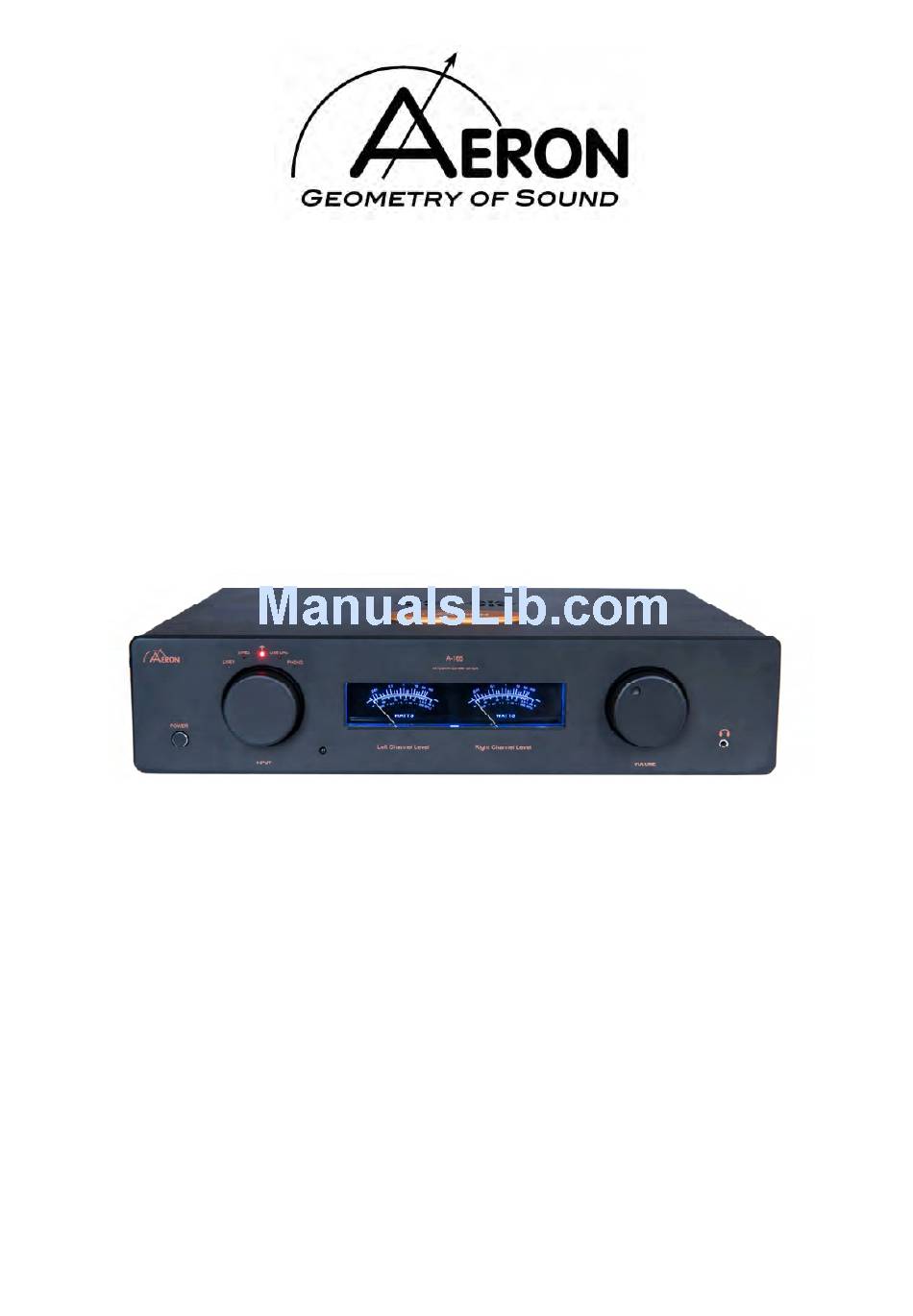

A-165
HYBRID INTEGRATED AMPLIFIER

USER MANUAL

Manual Rev 1. 201
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-165 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Aeron A-165

  • Page 1: User Manual

    A-165 HYBRID INTEGRATED AMPLIFIER USER MANUAL Manual Rev 1. 201...
  • Page 2: Table Of Contents

    Contents Preface Illustrations Safety Notice Installation In your System Connections Rear Panel Connections AC Power Connection Operation Power-up Procedure Front Panel Control Function Headphone Remote Control Function Wireless Audio/USB DAC OPERATION Maintenance Tube Replacement Servicing Cleaning Disposal and Recycling Guidelines Limited Warranty Specifications...
  • Page 3: Preface

    Before use we encourage you to please read this manual thoroughly to properly acquaint yourself with its features. We hope you enjoy listen- ing to Aeron product as much as we have had the pride that we have taken in manufacturing this fine receiver for your listening pleasure.
  • Page 4: Illustrations

    Illustrations Front Panel Power switch/indicator. Press in to turn on the power. Press again to turn off. Input Selector (LINE, Wireless, USB DAC, Phono) VU Meter Volume Control Headphone Output ③ ④ ① IR Receiver ⑥ ② ⑤ Rear Panel Right &...
  • Page 5: Safety Notice

    NEVER use flammable or combustible chemicals for cleaning audio components. NEVER wet the inside of this component with any liquid. If a liquid substance does enter your unit, immediately disconnect it from the AC mains and take it to your Aeron Dealer for inspection.
  • Page 6: Installation

    If the unit is to be operated in an enclosed equipment cabinet, an exhaust fan is desirable so as not to operate the A-165 in overheated ambient air. The “ambient” operating temperature should never exceed 120...
  • Page 7: Connections

    Connect the black or “-” speaker terminal to the wire that connects to the “black (-)” terminal on the A-165. Connect the red or “+” speaker terminal to the wire that connects to the “red(+)” terminal on the A-165, and tighten the speaker terminals securely to ensure best sonic results.
  • Page 8: Ac Power Connection

    A-165 and the preamplifier will be compromised. For the very best sonic performance, the A-165 should be connected to its own AC power circuit branch, protected by a 15 or 20 amp breaker. The other audio equipment should be connected to a different power circuit and breaker.
  • Page 9: Operation

    2. Press the “Power” button shut unit OFF General Notes about Usage Turn off the A-165 wait at least five minutes before turning it on again. This brief cool down period will reduce stress on the output tubes and potential damage to them.
  • Page 10: Front Panel Control Function

    INPUT: Allows selection of any of three single-ended input sources 1, 2, 3. Switch the input selector button through each input as indicated on the panel. POWER: Toggles power on and off from AC wall outlet to A-165. Headphone 3.5mm Headphone output for conventional 32-200ohms stereo headphone.
  • Page 11: Wireless Audio/Usb Dac Operation

    A-165 hybrid integrated amplifier. Your device should search and connect to the AERON A-165. If your device does not see the AERON “wireless device” appear after 30 seconds or so, then you may search for a USB device manually with your unit.
  • Page 12: Maintenance

    Maintenance Tube Replacement As usual, the audio tubes used in A-165 can last for 10,000 hours or above. The audiophile enthusiasts like changing different kind of audio tubes to ambience different sonic characters. Please consult the distributor or your local dealer before changing the tubes.
  • Page 13: Servicing

    Maintenance Servicing CAUTION: Your A-165 contains sufficient levels of voltage and current to be le- thal. Do not tamper with a component or parts inside the unit. Refer any needed service to your authorized Aeron dealer or other qualified technician. Should service be necessary, please contact your Aeron dealer, or Aeron Customer Service Email: info@lhe.com.hk or postmaster@stereoland.info.
  • Page 14: Limited Warranty

    The authorized importing retailer or distributor has accepted the responsi- bility for warranty of Aeron products sold by them. The specific terms and remedies for fulfillment of the Limited Warranty may vary from country to country.
  • Page 15: Specifications

    AERON A-165 Specifications: Power Output: 70Wx2 (8ohms) Frequency Response: 20Hz-50kHz (10W, 8ohms) Distortion: 0.05% LINE Gain: 34dB 74dB Phono Gain: 86dB S/N Ratio (LINE Signal): 80k ohms LINE Input Impedance: 4ohms-8ohms Speaker Output Impedance: 47kohms/68pF Phono Impedance: 32-200ohms Headphone Impedance:...
