Audial WC0883 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

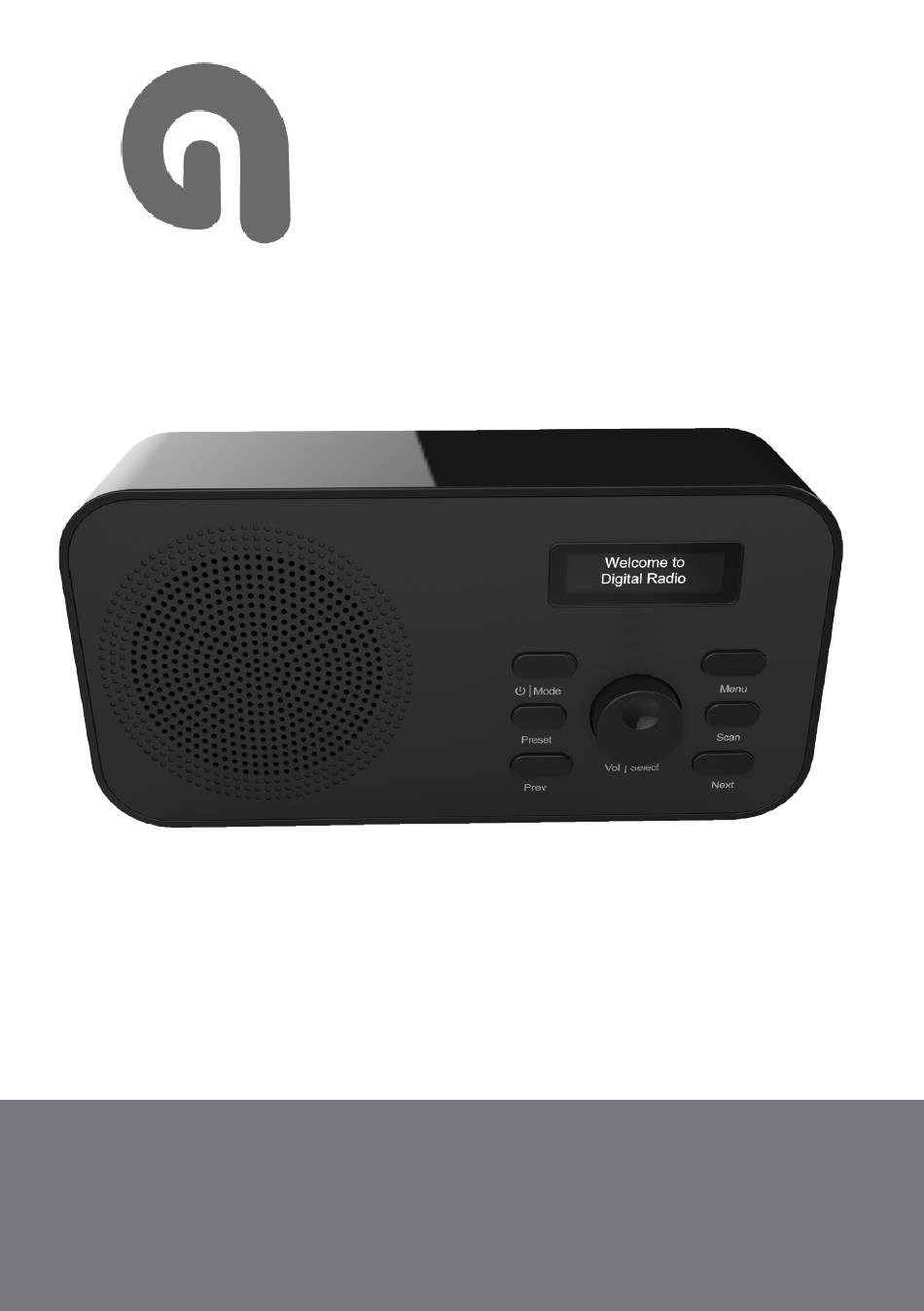

WC0883 09042018
AUDIAL
DAB Radio
Instruction Manual
1
Model Ref: WC0883

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC0883 and is the answer not in the manual?

Questions and answers

Related Manuals for Audial WC0883

Summary of Contents for Audial WC0883

  • Page 1 WC0883 09042018 AUDIAL DAB Radio Instruction Manual Model Ref: WC0883...

  • Page 3: Table Of Contents

    INTRODUCTION Thank you for choosing this DAB Radio. This product is manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your radio. Remove all packaging material. You may wish to keep the packaging for future use or storage of your device.

  • Page 4: Important Safety Information

    12. If the power cord is damaged, it must be replaced by a qualified service agent in order to avoid a hazard. 13. Only use this radio for its intended domestic use. Audial will not accept any liability if the radio is subject to improper use, or failure to comply with these instructions.
  • Page 5 15. Do not disconnect the radio from the mains power supply by pulling the power cord, switch it off and remove the plug by hand. 16. Use of an extension cord with the radio is not recommended. 17. This radio should not be operated by means of an external timer or separate remote control system.

  • Page 6: Product Specifications

    PRODUCT SPECIFICATION Adaptor Output Power DC 5V 1A Output Power 1W 8 ohms (THD 8%) Headphone Jack 3.5mm Power Source 100-240V 60/50Hz Power Consumption 4.5W BAND Ill 174.928-239.200 87.5-108 MHz Batteries 4 x AA Batteries (Not Included) Dimensions 177 x 90 x 46mm 2 x 16 dot matrix high contrast Display display...

  • Page 7: Product Overview

    PRODUCT OVERVIEW 1. POWER/MODE button 8. VOLUME control/SELECT 2. PRESET button button 3. PREVIOUS button 9. DC MAINS input socket 4. LCD display 10. HEADPHONE/EARPHONE port 5. MENU/INFO button 11. ANTENNA 6. SCAN button 12. BATTERY compartment 7. NEXT button...

  • Page 8: Before First Use

    Accessories AC Cord Instruction Manual BEFORE FIRST USE BATTERY INSTALLATION: Follow the below steps to install 4 x AA batteries. 1. Unclip the battery cover in the direction indicated on the cover. 2. Insert 4 x AA batteries in the sequence shown, observing polarity.

  • Page 9: Getting Started

    CAUTION! • Remove batteries if they are flat or not being used for a long period of time. • Batteries contain chemical substances, so they should be disposed of properly. • To run the radio on battery power you will need to switch off and disconnect the mains cable if connected.

  • Page 10: Dab Operation

    VOLUME: 1. Rotate the VOLUME/SELECT control (8) clockwise to increase the volume level. 2. Rotate the VOLUME/SELECT control (8) anticlockwise to decrease the volume level. DAB OPERATION Press the POWER/MODE button (1) (if in FM mode) to switch to DAB mode. The display will show ‘DAB Mode’. 1.
  • Page 11 1. Press and hold the MENU/INFO button (5). 2. When the <Full Scan> option appears press either PREV (3) or NEXT (7) buttons to cycle through the menu options until you locate <Manual Tune>. Press the VOLUME/ SELECT control (8) inwards to select. 3.
  • Page 12 RECALLING DAB STATION PRESETS: 1. You can recall the preset stations list by pressing the PRESET button (2). Then use the PREV (3) or NEXT (7) buttons to select the preset. Once selected press the VOLUME/SELECT control (8) to select the station. NOTE: If you choose a preset that hasn’t been allocated a station, then “Preset Empty”...
  • Page 13 DLS (scrolling text) Signal Error Signal Strength Bit-rate Programme Type Time Ensemble Name Date Channel Frequency DLS (Dynamic Label Segment): Dynamic label segment is a scrolling message that the broadcaster may include with their transmissions. This message usually includes information, such as program detail etc.
  • Page 14 Channel Frequency: Displays the frequency information for the current station. Signal Error: Displays information regarding the error rate in the signal. Bit-rate: Displays the current stations bit-rate details. Time & Date: The time & date is set automatically from the DAB broadcast. DRC (Dynamic Range Control): This causes the radio to reduce the dynamic range of the audio signal.

  • Page 15: Fm Operation

    FM OPERATION Press the POWER/MODE button (1) (if in DAB mode) to switch to FM mode. The display will show ‘FM Mode’. TUNING AN FM STATION: 1. Extend the telescopic antenna. 2. Press and hold either PREV (3) or NEXT (7) button to scan up or down the frequency range.
  • Page 16 2. When the <Scan Setting> option appears press either PREV (3) or NEXT (7) buttons to cycle through the menu options until you locate <Audio Setting>, Press the VOLUME/SELECT control (8) inwards to select. 3. Use the PREV (3) or NEXT (7) buttons to cycle through the two options <Mono only>...
  • Page 17 Display Modes: Press the MENU/INFO button (5), and the bottom section of the display will show a sub text menu with various information about the current station. Every press of the MENU/INFO button (5) changes the information displayed. NOTE: Once you reach the lost info setting the next press will return you to the first setting.

  • Page 18: Factory Reset

    name is broadcast. Audio Mode: Displays stereo or mono depending on the broadcast being received. Time/Date: Displays the current time. Displays the current date. FACTORY RESET To reset the radio to the factory settings follow the next steps. 1. Press and hold the MENU/INFO button (5). 2.
  • Page 19 buttons to cycle through the menu options until you locate <System>. Press the VOLUME/SELECT control (8) inwards to select. 3. When the <Time> option appears press the VOLUME/ SELECT control (8) inwards. 4. Inside the <Time> menu there ore several options. <Set 12/24 Hour>, <Set Time/Date>, <Set Date Formal>...

  • Page 20: Set Language

    SET LANGUAGE Follow the instructions below to select a different UI language. 1. Press and hold the MENU/INFO button (5). 2. When the <Full Scan> (DAB) or <Scan Setting> (FM) option appears press either PREV (3) or NEXT (7) buttons to cycle through the menu options until you locate <System>.
  • Page 21 (8) inwards. 2. Use the PREV (3) or NEXT (7) buttons to cycle through options 10-180 seconds. 3. Press the VOLUME/SELECT control (8) button to store the setting. On Level: 1. Use the PREV (3) or NEXT (7) buttons to locate the <On level> option and press the VOLUME/SELECT control (8) inwards.

  • Page 22: Disposal Information

    DISPOSAL INFORMATION IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, this product must NOT be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
  • Page 23 NOTES...
  • Page 24 AUDIAL Audial Wellington Grove, Stockport, SK2 6RH...
