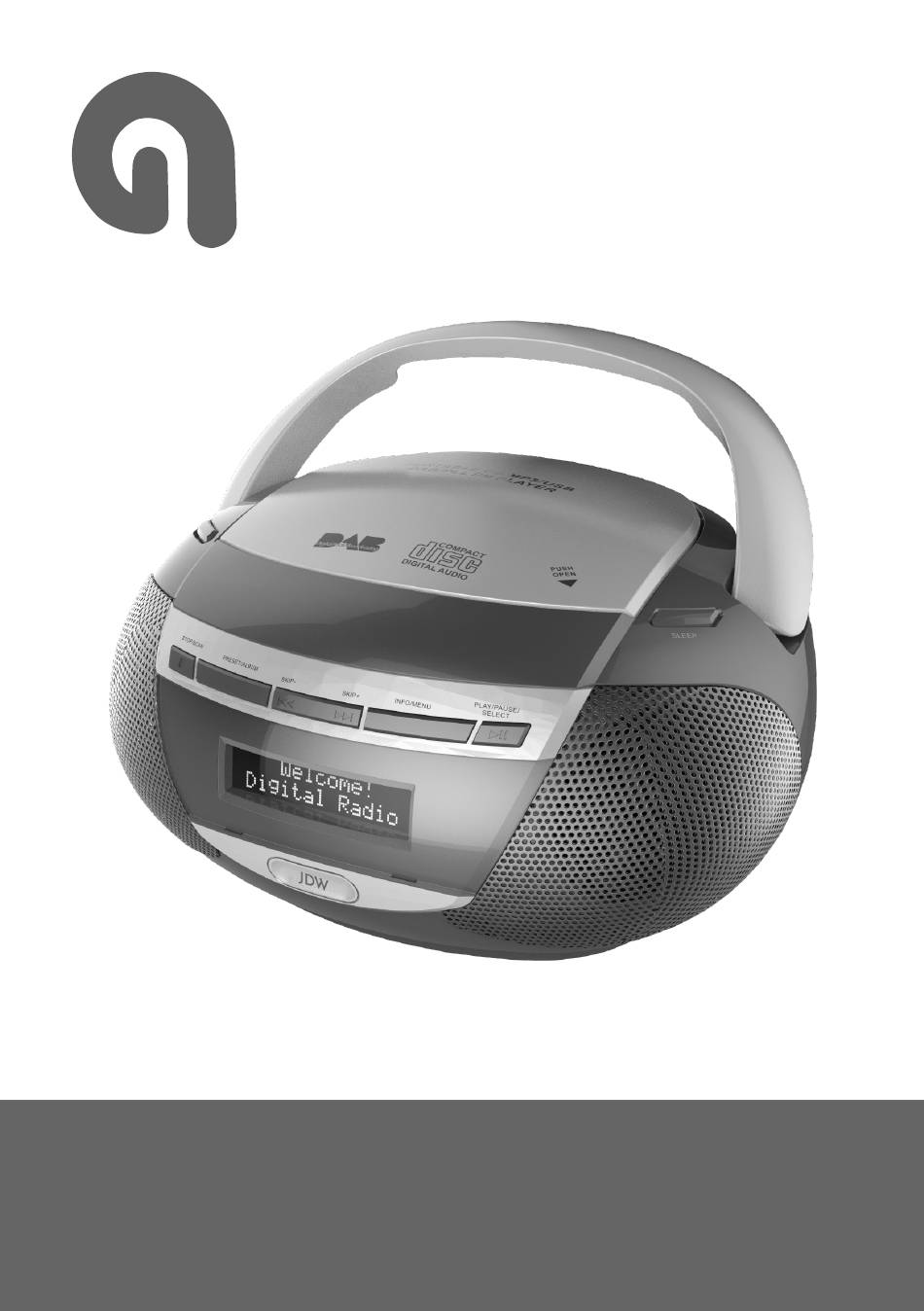

D88 15032018
AUDIAL
DAB Radio Boombox
Instruction Manual
1
Model Ref: D88

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D88 and is the answer not in the manual?

Questions and answers

Related Manuals for Audial D88

Summary of Contents for Audial D88

  • Page 1 D88 15032018 AUDIAL DAB Radio Boombox Instruction Manual Model Ref: D88...

  • Page 2: Table Of Contents

    Introduction Thank you for choosing this DAB Radio Boombox. This product is manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your device. Remove all packaging material.

  • Page 3: Important Safety Information

    13. Only use this boombox for its intended domestic use. Audial will not accept any liability if the boombox is subject to improper use, or failure to comply with these instructions.
  • Page 4 15. Do not disconnect the boombox from the mains power supply by pulling the power cord, switch it off and remove the plug by hand. 16. Do not move the boombox when it is in use. 17. Use of an extension cord with the boombox is not recommended.

  • Page 5: Product Specifications

    PRODUCT SPECIFICATIONS CD Section Channels 2 Channels (Track & Time) Optical Pick-Up 3 Beam Laser Frequency Response 100Hz - 16KHz Compatibility CD/CD-R/CD-RW Radio Section Receiving Band DAB/FM Tuning Range FM 87.5 - 108Mhz Antenna DAB/FM Rod Antenna Channel Block DAB (Band III) General Output Power 1.2W x 2...

  • Page 6: Product Overview

    PRODUCT OVERVIEW 1. Carry Handle 8. Play/Pause/Select Button 2. CD Compartment 9. Sleep Button 3. Mode Button 10. Telescopic Aerial Antenna 4. Stop/Scan Button 11. 3.5mm Headphone Jack 5. Preset/Album Button 12. Function Switch 6. Skip -/+ Button 13. Volume Control Dial 7.

  • Page 7: Before First Use

    Accessories AC Cord Instruction Manual BEFORE FIRST USE Information on laser products Reproduction of labels 1. CLASSIFICATION LABEL, PLACED ON BASE ENCLOSURE. 2. WARNING LABEL, PLACED INSIDE THE UNIT. CAUTION: DO NOT OPEN THE UNIT. THERE ARE NO USER SERVICEABLE PARTS INSIDE THE UNIT; CONSULT ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
  • Page 8 Power Source This unit is designed to be operated on AC/DC. AC Operation Plug the smaller end of AC power cord into AC in socket (14) located on the unit and then plug the end into the socket. Any inserted batteries will be automatically disconnected. DC Operation On the base of the unit, open the BATTERY COMPARTMENT DOOR.

  • Page 9: Using The Radio

    USING THE RADIO During operation, you can enter into the System menu in either DAB or FM mode - first press and hold the INFO/ MENU button (7) to enter into the Menu, then repeatedly press the SKIP- / SKIP+ button (6) followed by pressing the PLAY/PAUSE/SELECT button (8) to select “System”.
  • Page 10 SW Version The SW version will be displayed and you may wish to take a note here. Listening to your Radio HINTS FOR BETTER RECEPTION This radio is fitted with a single DAB/FM telescopic aerial antenna (10), to obtain the best performance, you should fully extend the antenna (10) and adjust its position as well as the direction until you find the best reception.
  • Page 11 Full Scan The full scan will search for the entire DAB Band III channels. After the scan has finished, the first alphanumerically found station will be automatically selected. 1. To activate full scan, press on the STOP/SCAN button (4) once, the display will show “Scanning …” and a progressing slide bar.
  • Page 12 DRC stands for Dynamic Range Control. The dynamic range for each radio programme is set by the broadcaster for each radio station and may be different for the types of programme broadcast, such as pop or classical music or a chat show. The dynamic range control signal is transmitted in parallel with the audio signal for each programme, And with your radio, you can use this control signal to expand or compress...
  • Page 13 Prune You can remove the DAB stations in the station list that cannot be received in your area. These are listed with a ‘?’ prefix. 1. To perform Prune, in DAB mode, press and hold the INFO/MENU button (7) to enter into the Menu, repeatedly press the SKIP- / SKIP+ button (6) followed by pressing the PLAY/PAUSE/SELECT button (8) to select “Prune”.

  • Page 14: Signal Strength

    Signal Strength The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right. Programme Type This describes the style of the programme that is being broadcast.
  • Page 15 FM Mode 1. To switch the selector on FM mode , the display shows “FM”. The display will show the frequency and the RDS info if available. To go through the RDS infos, repeatedly press the INFO/MENU button (7). 2. To perform manual tuning, repeatedly press the SKIP- / SKIP+ button (6), when your desired frequency appears in the display, release the buttons.
  • Page 16 Storing and Recalling Stored Stations In either DAB or FM mode, you can store up to 20 stations to the favourite presets; this will enable you to get direct access to your favourite stations. 1. To store a preset, first tune to your desired station, then press and hold the PRESET/ALBUM button (5), the display will show “Preset Store <1: (Empty) >”.

  • Page 17: Listening To Your Cd's

    LISTENING TO YOUR CD’S NOTE: Although this CD/MP3 player can read CD-R and CD- RW discs in addition to normal CDs, the playability of CD-R and CD-RW discs may be affected by the type of software that was used to create the discs, as well as the quality and condition of the blank media you are using, 100% playability cannot be guaranteed.
  • Page 18 Repeat Play and Random Play During normal playback, you can repeatedly press the PRESET/ALBUM button (5) to select the repeat play or random play function. 1. To repeat the same track, press the PRESET/ALBUM button (5) once, the display will show “Repeat One”. 2.

  • Page 19: Program Play

    Program play You can use the program play feature to play up to 20 tracks on a disc in any desired order. You may also program a particular track to play several times within a programmed sequence. 1. Load your disc as usual and then press the STOP/SCAN button (4) to select CD stop mode, the display will show the total number of tracks in the disc.
  • Page 20 Repeat Program play You may use the program play and the repeat play features together to continuously repeat a programmed sequence. First program the desired playback sequence, when program play begins, press the PRESET/ALBUM button (5) to select repeating the current track or the entire programmed sequence.

  • Page 21: Compact Disc Maintenance

    COMPACT DISC MAINTENANCE 1. Always use a compact disc bearing the mark as shown. 2. Notes on handling discs • Take care when removing the disc from its storage case and loading it. • Do not touch the reflective recorded surface. •...

  • Page 22: Disposal Information

    DISPOSAL INFORMATION IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC At the end of its working life, this product must NOT be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.
  • Page 23 AUDIAL Wellington Grove, Stockport, SK2 6RH...
