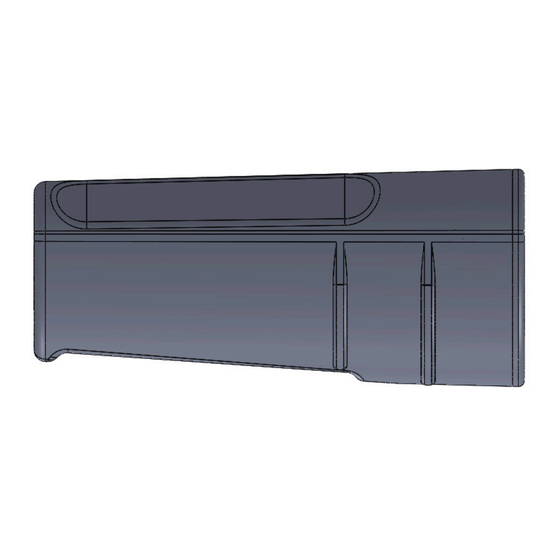

Cooper Atkins Blue2 20100-K Functional Overview

20100-K Blue2
The Blue2 has an ABS plastic housing with antimicrobial additive that is IPX7 waterproof rated. The unit has
an ambient operating environment range of 32º to 122ºF (0º to 50ºC). The Blue2 has a temperature range of
-40º to 999ºF (-40º to 537ºC) with a resolution of 0.1º. The accuracy of the unit is ±0.5ºF (±0.3ºC) and is
traceable to NIST standards.
Battery Installation & Usage
Install the replaceable 3V Lithium Cell Battery (CR123A) included with the Blue2 instrument prior to using the unit.
Remove the battery door by twisting counter clockwise, moving the door into the unlocked position. Insert the
battery into the chamber positive end first (+). Replace the battery door, aligning the center piece with the unlock
icon and twist clockwise to place the door back into the locked position.
Battery life status may be displayed on your smart device if the 3rd party application features this service.
When the battery gets below 1% it will stop transmitting temperatures and will need to be replaced.
Typical battery life is 500 hours.
Connecting a Type K Probe
Any Type K thermocouple temperature probe can be used with the
Blue2 instrument. Be sure you insert the probe connectors positive (+)
and negative (-) polarity correctly into the Type K connector.
Connecting a Type K Probe with Secure Lock
1. Remove the screw from the instrument
2. Insert Type K connector into socket on Blue2 unit.
3. Use a small Phillips (#1) screwdriver to tighten the screw snug. It is important
not to overtighten.
4. When loosening the screw, back off approximately 0.16" until the thread is no
longer engaged and then pull out the connector from socket.
Note: The screw is self-retained in the connector and is not intended to come
loose from the connector.
Accuracy to the Highest Degree
Cooper-Atkins Corporation • 800-835-5011 • 860-347-2256 • www.cooper-atkins.com
Instrument
™
Functional Overview
To Unlock
®
The Blue2 has an ABS plastic housing with antimicrobial additive that is IPX7 waterproof rated. The unit has
an ambient operating environment range of 32º to 122ºF (0º to 50ºC). The Blue2 has a temperature range of
-40º to 999ºF (-40º to 537ºC) with a resolution of 0.1º. The accuracy of the unit is ±0.5ºF (±0.3ºC) and is
traceable to NIST standards.
Battery Installation & Usage
Install the replaceable 3V Lithium Cell Battery (CR123A) included with the Blue2 instrument prior to using the unit.
Remove the battery door by twisting counter clockwise, moving the door into the unlocked position. Insert the
battery into the chamber positive end first (+). Replace the battery door, aligning the center piece with the unlock
icon and twist clockwise to place the door back into the locked position.
To Lock
®
Battery life status may be displayed on your smart device if the 3rd party application features this service.
When the battery gets below 1% it will stop transmitting temperatures and will need to be replaced.
Typical battery life is 500 hours.
Connecting a Type K Probe
Any Type K thermocouple temperature probe can be used with the
Blue2 instrument. Be sure you insert the probe connectors positive (+)
and negative (-) polarity correctly into the Type K connector.
Connecting a Type K Probe with Secure Lock
1. Remove the screw from the instrument
2. Insert Type K connector into socket on Blue2 unit.
3. Use a small Phillips (#1) screwdriver to tighten the screw snug. It is important
not to overtighten.
4. When loosening the screw, back off approximately 0.16" until the thread is no
longer engaged and then pull out the connector from socket.
Note: The screw is self-retained in the connector and is not intended to come
loose from the connector.
20100-K Blue2
™
Functional Overview
To Unlock
Accuracy to the Highest Degree
Cooper-Atkins Corporation • 800-835-5011 • 860-347-2256 • www.cooper-atkins.com
Instrument
To Lock
® ®
