Display
Backup time information
Warning & fault information
Setting operation
Input/Output & battery information
Load information
UPS status
Battery information
INFOSEC UPS SYSTEM - 15, rue du Moulin - 44880 Sautron - FRANCE - www.infosec-ups.com
40
Hot Line – Tel + 33 (0)2 40 76 15 82 - Fax + 33 (0)240 94 29 51 - hotline@infosec.fr – 06 17 AA 59 205 05

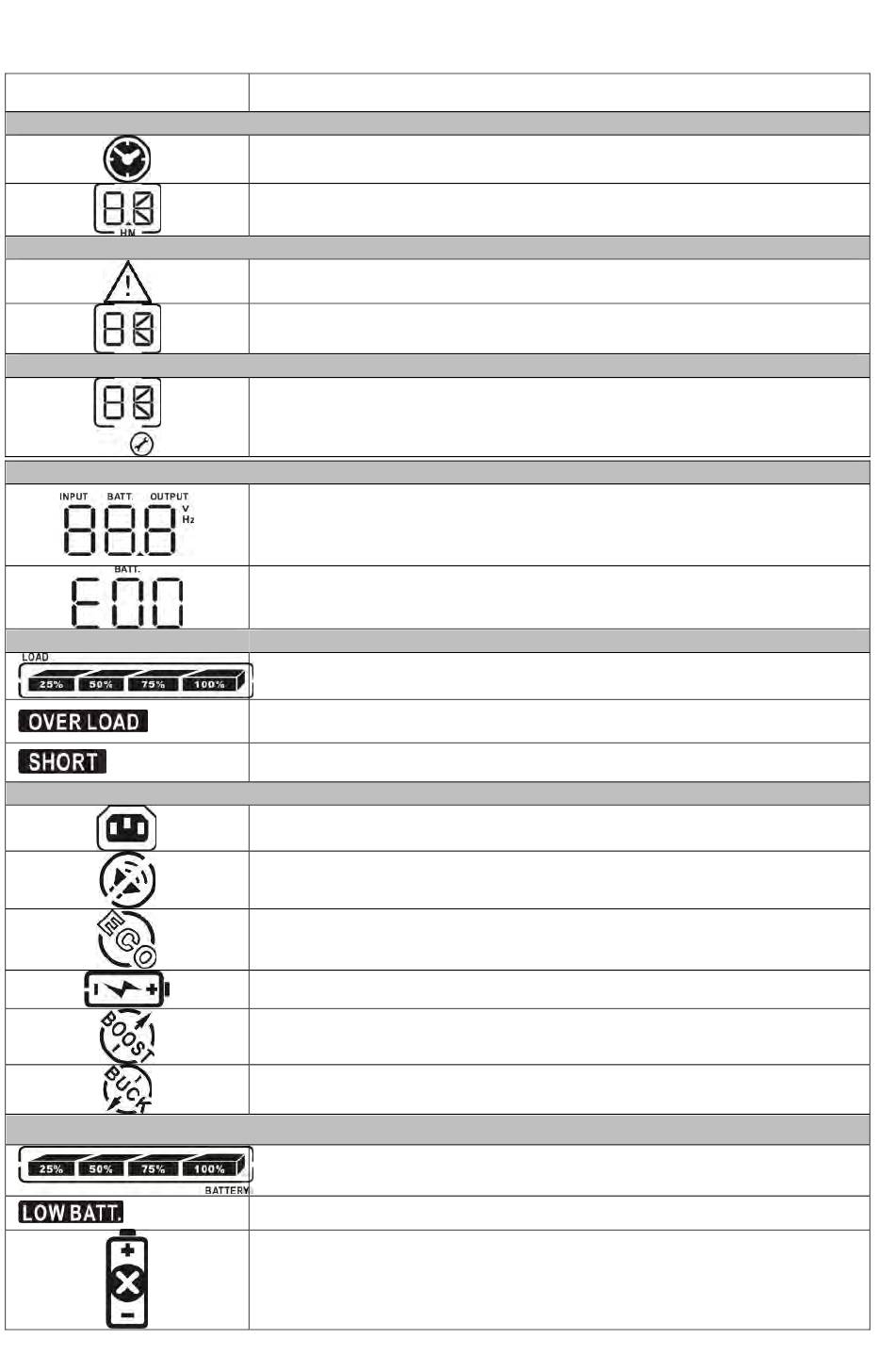

Indicates the backup time in pie chart.
Indicates the backup time in numbers.
H: hours; M: minute.
Indicates that warning and fault occur.
Indicates the warning and fault codes
(codes are listed in details chapters 3.7 and 3.8).
Indicates the setting operation.
Indicates the input/output voltage, input/output frequency or battery
voltage.
BATT = battery; V = voltage; Hz = frequency.
Indicates the external battery pack number.
Indicates the load level by 0-24%, 25-49%, 50-74%, and 75-100%.
Indicates overload.
Indicates that the load or the UPS output is short circuited.
Indicates that programmable management outlets are working.
Indicates that the UPS alarm is disabled.
Indicates the UPS powers the output directly from the mains (see
details page 13).
Indicates that the battery charger is working (see details page 15).
Indicates that the UPS is working in boost mode
(see details page 15).
Indicates that the UPS is working in buck mode (see details page 15).
Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%.
Indicates low battery.
Indicates a problem with the battery.
Functions
