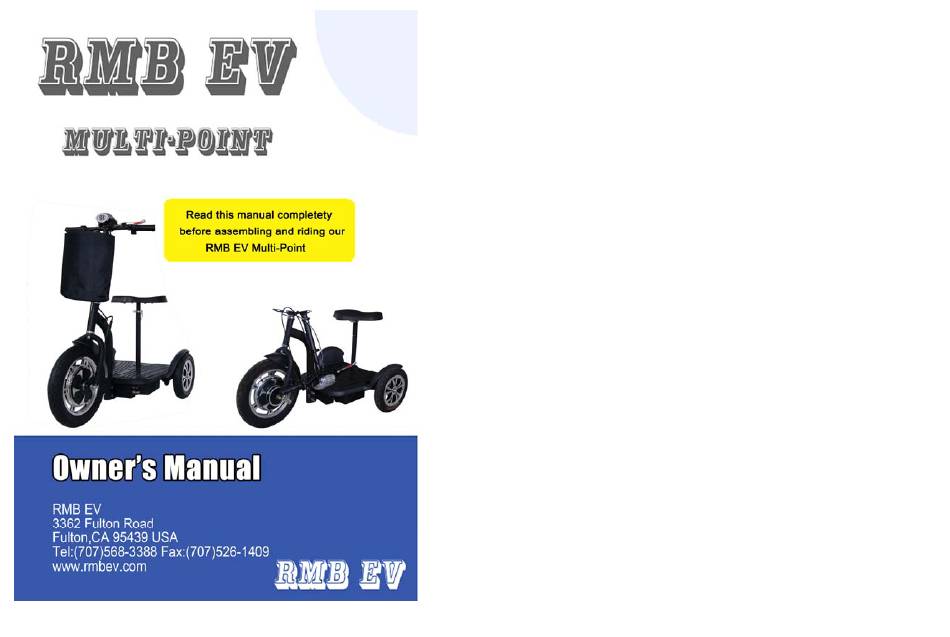

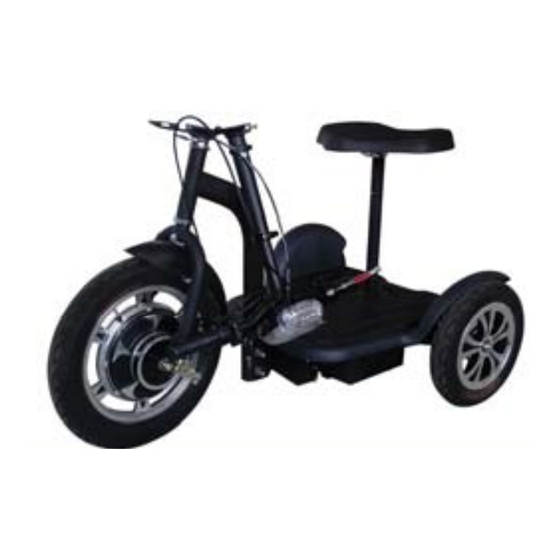

RMB EV MULTI-POINT Owner's Manual

Hide thumbs Also See for MULTI-POINT:

Owner's manual (51 pages)

Table of Contents

Quick Links

Need help?

Do you have a question about the MULTI-POINT and is the answer not in the manual?

Questions and answers

Summary of Contents for RMB EV MULTI-POINT

Page 1: Table Of Contents
Table of Contents Technical Information-----------------------------------1 Warning Statement--------------------------------------2 Read Before Riding-------------------------------------3 List of Parts-----------------------------------------------4 Front Bar---------------------------------------------------6 Tool Kits In The Tool Bag------------------------------7 Assembling The Multi-Point---------------------------8 Charging The Batteries-------------------------------12 Charging The Batteries Outside Scooter---------13 Riding The Multi-Point--------------------------------15 Folding The Multi-Point-------------------------------19 Maintenance---------------------------------------------21 Wiring Diagram-----------------------------------------22...
Page 2: Technical Information
Multi-Point Model No. RMB Multi-Point Warranty-------------------------------------------------26 45 L x 27 W x 44 H inch Instructions for optional attachments-------------31 Product size (115 x 68 W x 113 cm) Permanent-magnet Type of motor brushless DC wheel motor Motor power 500 w Wheel motor, 48 V...
Page 3: Warning Statement
Multi-Point Multi-Point WARNING THE RMB MULTI-POINT IS NOT A TOY AND SHOULD NOT BE OPERATED BY ANYONE UNDER 12 YEARS OLD. Safety Instructions: (Please take note of the following before each ride)  The maximum weight capacity is 310 lbs.
Page 4: List Of Parts
Multi-Point Multi-Point Throttle Multi-function Instrument Brake lever Alloy handlebar tub Quick release Connecting tube Seat Charger port Footboard Rear wheel Battery Power connecting plugs Allen set screw Front fender compartment Controller Motor Front wheel Basket...
Page 5: Front Bar
Multi-Point Multi-Point 1 Brake lever 2 Lock mechanism switch Screwdriver Allen wrench （2.5mm） 3 Horn switch Allen wrench （3mm） 4 Multi-function Instrument Allen wrench （5mm） 5 Key switch Allen wrench （6mm） 6 USB port Wrench (8 x 10mm) Wrench (16 x 18mm)
Page 6 2. Place the Multi-Point on a flat, level surface. Block the front up 3.5''. This will make the next step easier...
Page 7: Assembling The Multi-Point
Multi-Point Multi-Point align release button to pivot on brake handle side 9. Connect the connecting box well. 6. Ensure that the handlebar is facing front, the brake on the left side and the throttle on the right, then tighten the handlebar tube collar clamp using the enclosed 5mm wrench.
Page 8: Charging The Batteries
Multi-Point Multi-Point Before you ride the Multi-Point for the first time ● 1. Turn off the key switch you must charge the batteries for 4-6 hours or Lift the floor mat. Unscrew two bolts that until the charger light turns green using only the secure the battery cover and remove it.
Page 9: Riding The Multi-Point
Once you have completed the initial charge you ● are ready to ride. Remember, this is not a toy. The Multi-Point can reach speeds up to 16 mph depending on the terrain and the weight of the rider. You must wear a helmet and protective pads.
Page 10 NOTE 4: Depending on skills of the driver, the Multi-Point comes equipped with an adjustable speed button located on the controller which allows you to limit speed to 8mph or switch to max speed of 16 mph.
Page 11 Multi-Point Multi-Point 1. Turn off the key switch NOTE 6: The Maximum output of dual ports USB part is 5V 2A which will charge all phones and tablets. 2. Put the clamp ring to turn to one side. 3. Press the quick release to bottom.
Page 12: Folding The Multi-Point
To prolong battery life, recharge the battery after each use. You must also charge your Multi-Point if it has not 5. Carefully place the handlebar tube on the been used for 30 days or more. If you need to...
Page 13: Wiring Diagram
Multi-Point Multi-Point...
Page 14: Trouble Shooting Guide
Scooter is 1. Low battery 1. Recharge your the Multi-Point Multi-Point. cover and raise the losing speed. 2. Battery is battery for 4~6 hours. is on. 3. Fuse is blown.
Page 15 Batteries and tires are warranted for three warranty is limited to thirty (30) days from the (3) months. This warranty extends to the original date of purchase for any RMB EV product that is retail purchaser only and commences on the date used...
Page 16 Some states do tear. RMB EV reserves the right to improve the not allow the exclusion or limitation of incidental design of the product without assuming any...
Page 17 HOW TO GET WARRANTY SERVICE: 1. Turn off the key switch 2. Remove seat post from seat To obtain warranty service, please call or fax to the following telephone numbers for RMB EV Customer Service - warranty repair Tel. 1-707-568-3388 or Fax.1-707-526-1409, Email: info@rmbev.com 3.
Page 18 Instructions for optional attachments Instructions for optional attachments Multi-Point Multi-Point 5. Put floor mat through tube, and align nipples to corresponding holes in floor deck 8. When using the inverter, turn on the power switch. 6. Install quick release and seat.
Page 19 Instructions for optional attachments Instructions for optional attachments Multi-Point Multi-Point ac outlet or vent openings. How to install the trailer ● Do not under any circumstances. connect the 1. Turn off the key switch 2. Put the trailer tongue into the slot, after inverter to power utility AC distribution wiring.
Page 20 Instructions for optional attachments Instructions for optional attachments Multi-Point Multi-Point How to install the solar panel 1. Turn off the key switch 2. Put the front support(A) onto the riser(B), aligning the holes, place the two bolts through the holes, then twist the bolts, and tighten them with the nuts provided.
Page 21 Instructions for optional attachments Instructions for optional attachments Multi-Point Multi-Point 7. Fix the solar panel onto the front frames(A) 5. Install the rear support (A) onto rear frame(B) with the two bolts, and tighten them with the nuts with support pipe(B), fix the solar panel onto the rear frames(C) with support board(D).
Page 22 Instructions for optional attachments Instructions for optional attachments Multi-Point Multi-Point NOTE 1: When not using the solar panel for more than one week, please close the switch of solar panel. NOTE 2: When disassembling the solar panel, please close the switch of solar panel.
Page 23 Instructions for optional attachments Instructions for optional attachments Multi-Point Multi-Point Instructions on the use of the alarm then the alert is removed. 1. Take out the alarm. 2. Connect the battery well, and install the alarm well. 3. The “1” button is the alarm button. When pressing it gently, the horn will ring one loud, after three seconds, the scooter will be on alert.
Page 24 Instructions for optional attachments Multi-Point Instructions on the use of the LED rope When you use the led rope, the head light must be turned on, and then push the led rope switch to “1”, the led rope will be illuminate. Push switch...
