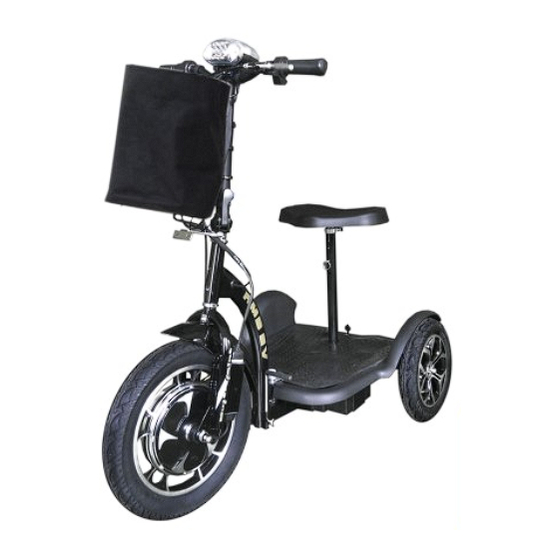

RMB EV Multi-Point Owner's Manual

Hide thumbs Also See for Multi-Point:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multi-Point and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RMB EV Multi-Point

Summary of Contents for RMB EV Multi-Point

  • Page 2: Table Of Contents

    Table of Contents Technical Information-----------------------------------1 Warning Statement--------------------------------------2 Read Before Riding-------------------------------------3 List of Parts-----------------------------------------------4 Front Bar---------------------------------------------------6 Tool Kits In The Tool Bag------------------------------7 Assembling The Multi-Point---------------------------8 Charging The Batteries-------------------------------17 Charging The Batteries Outside Scooter---------18 Riding The Multi-Point--------------------------------20 Folding The Multi-Point-------------------------------24 Maintenance---------------------------------------------26 Wiring Diagram-----------------------------------------27...
  • Page 3 Warranty-------------------------------------------------31 Instructions for optional attachments-------------36...

  • Page 4: Technical Information

    Multi-Point Model No. RMB Multi-Point 45 L x 27 W x 44 H inch Product size (115 x 68 W x 113 cm) Permanent-magnet Type of motor brushless DC wheel motor Motor power 500 w Wheel motor, 48 V Battery type...

  • Page 5: Warning Statement

    Multi-Point...

  • Page 6: Read Before Riding

    Multi-Point WARNING THE RMB MULTI-POINT IS NOT A TOY AND SHOULD NOT BE OPERATED BY ANYONE UNDER 12 YEARS OLD. Safety Instructions: (Please take note of the following before each ride) • The maximum weight capacity is 350 lbs. •...

  • Page 7: List Of Parts

    Multi-Point...
  • Page 8 Multi-Point Multi-function Instrument Foldable structure Basket Lamp bracelet Connecting tube Seat Ring-pull steel pin Seat post Plastic base Rear wheel Battery Dual-purpose lock bolt Tri pod stands Front fender Controller Motor Front wheel...

  • Page 9: Front Bar

    Multi-Point 1 Brake lever 2 Lock mechanism switch 3 Horn switch 4 Multi-function Instrument 5 Key switch 6 USB port 7 Forward/reverse switch 8 Throttle...

  • Page 10: Tool Kits In The Tool Bag

    Multi-Point Screwdriver Allen wrench （2.5mm） Allen wrench （3mm） Allen wrench （5mm） Allen wrench （6mm） Wrench (8 x 10mm) Wrench (16 x 18mm) Wrench (16 x 18mm) charger...

  • Page 11: Assembling The Multi-Point

    1. Unpack the Multi-Point carefully so that you do not misplace any of the parts. 2. Place the Multi-Point on a flat, level surface. 3. Insert the two support stands into the corresponding tubes at the base of the front half of the scooter to form a tri pod.
  • Page 12 Multi-Point 4. Extend the handle bar tube to full upright position, and slide it in to connect with the front fork. *Note: The tube shaft is intentionally off center to allow handlebars to fold to the side. Be sure to...
  • Page 13 5. Ensure that the handlebar is facing front, the brake on the left side and the throttle on the right, then tighten the handlebar tube collar Multi-Point clamp using the enclosed 5mm wrench. 6. Firmly connect wire harness to junction box...
  • Page 14 Multi-Point 8. Prior to assembling or disassembling the Multi-Point, extend stands to the ground on a flat...
  • Page 15 (A) Multi-Point (2) From position (B) loosen wing nuts and slide stands up the support tube, turn 90 degrees so the stand footings face the rear of the scooter. Figure (C)
  • Page 16 Multi-Point Assembling and disassembling the Multi-Point using the Quick release system:...
  • Page 17 1. With power turned off, stand the front of the scooter upright using the footing stands. Multi-Point 2. With seat attached to floor deck, grab seat with both hands and place foot on tow hitch. Pull...
  • Page 18 3. Place female end of floor deck onto male end of front half. Secure with special bolt. (once secure, rock back and forth to ensure full insertion and re-tighten.) Multi-Point 4. The two power connector wires are fitted with...
  • Page 19 5. Plug the two power connecting wires into the corresponding sockets on the battery box respectively. Then zip tie the wire to the frame to keep from getting caught on any debris when riding. Multi-Point To disassemble: 1. Turn off power.

  • Page 20: Charging The Batteries

    This will apply pressure to release the mechanism. Multi-Point Before you ride the Multi-Point for the first time ● you must charge the batteries for 4-6 hours or...

  • Page 21: Charging The Batteries Outside Scooter

    Warning: Never charge scooter longer than 10 hours. If the charger does not turn green by 10 hours or you smell a Sulphur odor after a long charge there is a problem and contact the dealer for instructions. Multi-Point 1. Turn off the key switch...
  • Page 22 Lift the floor mat. Unscrew two bolts that secure the battery cover and remove it. Take out the battery, then charge it. Multi-Point...

  • Page 23: Riding The Multi-Point

    Multi-Point...
  • Page 24 Once you have completed the initial charge you ● are ready to ride. Remember, this is not a toy. The Multi-Point can reach speeds up to 16 mph depending on the terrain and the weight of the rider. You must wear a helmet and protective pads.
  • Page 25 NOTE 4: Depending on skills of the driver, the Multi-Point comes equipped with an adjustable speed button located on the controller which allows you to limit speed to 8mph or switch to max speed of 16 mph.
  • Page 26 “R”, the horn will send out a noise, then GENTLY turn the throttle to back up. Warning, do not twist throttle to full power when in reverse. When finishing reverse, push the reverse switch back to “F”. Multi-Point...

  • Page 27: Folding The Multi-Point

    NOTE 6: The Maximum output of dual ports USB part is 5V 2A which will charge all phones and tablets. Multi-Point...
  • Page 28 1. Turn off the key switch 2. Unlock the clamp safety ring by twisting to the left. 3. Pull clamp lever down to release. Multi-Point...

  • Page 29: Maintenance

    4. Tilt the handlebar in the direction of its hinge. (which is also attached to the handlebar tube). 5. Carefully lower the handlebar tube. Multi-Point...

  • Page 30: Wiring Diagram

    To prolong battery life, recharge the battery after each use. You must also charge your Multi-Point if it has not been used for 30 days or more. If you need to replace the battery pack, it is located inside the battery compartment on the footboard.
  • Page 31 Multi-Point...

  • Page 33: Trouble Shooting Guide

    2. Loose 2. Remove the does not connection screws that hold the illuminate when inside battery compartment the Multi-Point Multi-Point. cover and raise the is on. 3. Fuse is blown. cover. Visually 4. The inspect all wire instrument is connections making defective.
  • Page 34 Multi-Point When the brake 1. The brakes 1. Adjust the brake lever is are not adjusted by loosening the bolt squeezed the properly. on the rear brake Multi-Point wheel, pull the cable does not stop. and retighten the bolt. Scooter is 1.
  • Page 35 RMB EV warrants the Multi-Point for six (6) months according following terms. Batteries and tires are warranted for three (3) months.
  • Page 36 An authorized RMB EV service dealer must perform all warranty work. The warranty is limited to thirty (30) days from the date of purchase for any RMB EV product that is used rental demonstration,...
  • Page 37 RMB EV products. In addition this warranty does not cover items that experience normal wear and tear. RMB EV reserves the right to improve the design of the product without assuming any obligations to modify any product previously manufactured.
  • Page 38 WHAT RMB EV WILL DO: RMB EV will, at its sole option, either repair, replace or refund the purchase price of any unit that does not conform to this limited warranty.
  • Page 39 Multi-Point HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call or fax to the following telephone numbers for RMB EV Customer Service - warranty repair Tel. 1-707-568-3388 or Fax.1-707-526-1409, Email: info@rmbev.com DO NOT RETURN YOUR PRODUCT TO ANY ADDRESS.
  • Page 40 Instructions for optional attachments Multi-Point Installing the optional dc to ac inverter 1. Turn off the key switch. 2. Remove seat post from seat. 3. Install special seat post on seat. 4. Insert inverter into special seat post and secure with small allen screws.
  • Page 41 Instructions for optional attachments Multi-Point 5. Install seat. 6. Plug provided wire into inverter, zip tie to seat post and plug into the charge port on floor deck.
  • Page 42 Instructions for optional attachments Multi-Point 7. When using the inverter, turn on the power switch. Inverter specification: Input voltage is DC 48V ● Output voltage is AC 110V 60Hz ● NOTE 1: Do not expose to water drip or spray.
  • Page 43 Instructions for optional attachments Multi-Point How to install the trailer 1. Turn off the key switch 2. Put the trailer tongue into the slot, after aligning the holes, place the two bolts through the holes. Twist the bolts, and tighten them with the nuts provided.
  • Page 44 Instructions for optional attachments Multi-Point How to install the solar panel 1. Turn off the key switch 2. Put the front support(A) onto the riser(B), aligning the holes, place the two bolts through the holes, then twist the bolts, and tighten them with the nuts provided.
  • Page 45 Instructions for optional attachments Multi-Point 4. Install the rear frame onto the scooter with the two bolts, and tighten them with the nuts provided.
  • Page 46 Instructions for optional attachments Multi-Point 5. Install the rear support (A) onto rear frame(B) with the two bolts, and tighten them with the nuts provided. 6. Fix the rear support and seat post with one bolt, and tighten them with the nuts provided.
  • Page 47 Instructions for optional attachments Multi-Point 7. Fix the solar panel onto the front frames(A) with support pipe(B), fix the solar panel onto the rear frames(C) with support board(D). the front frame the rear frame 7. Connect the wiring harness well.
  • Page 48 Instructions for optional attachments Multi-Point the upper rear frame the lower rear frame...
  • Page 49 Instructions for optional attachments Multi-Point NOTE 1: When not using the solar panel for more than one week, please turn off the switch of solar panel. NOTE 2: When disassembling the solar panel, please turn off the switch of solar panel.
  • Page 50 Instructions for optional attachments Multi-Point pressing it gently, the horn will ring one loud, after three seconds, the scooter will be on alert. Touching or moving the scooter, activates alarm and horn will ring continuously. 4. The “2” button is the disarm button. Pressing this button gently, the horn will ring one loud, then the alert is removed.
  • Page 51 Instructions for optional attachments Multi-Point Instructions on the use of the LED lights To use undercarriage LED lights, the head light must be turned on, then click the switch to “1”, the LED lights will be illuminate. Push switch “0”...
