Rayline R20C Operation Manual page 8

R/C Rayline R20C Heli Cam 2.4 GHz 3-Kanal Helikopter mit Kamera

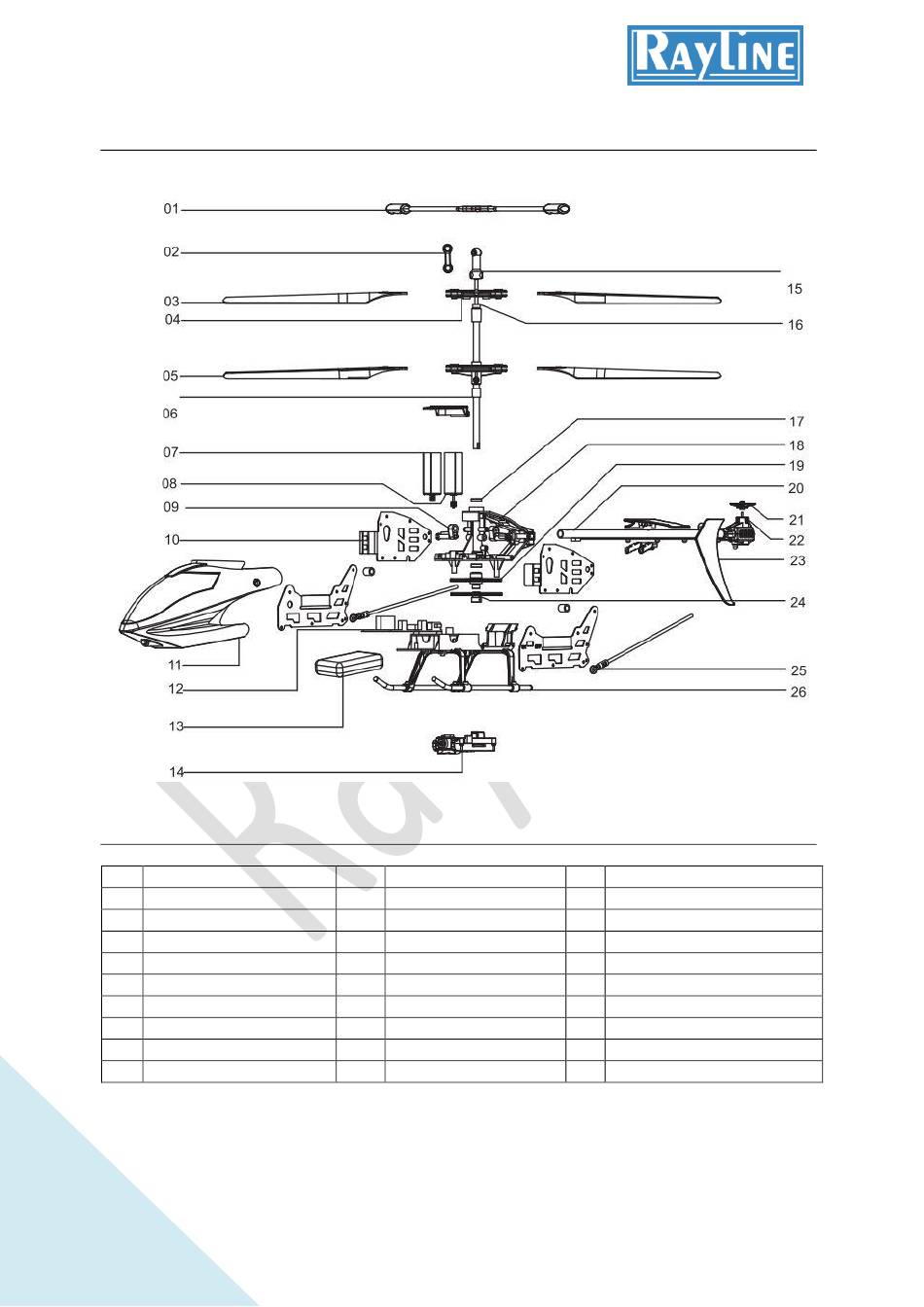

Exploded view
Beschreibung und Nummerierung der einzelnen Bauteile
No Part name
1 Balance bar
2 Connect buckle
3 Main blade A
4 Blade grip set
5 Main blade B
6 Inner shaft
7 Main motor A
8 Main motor B
9 Buckle
8
Bedienungsanleitung
No Beschreibung
10 Metal frame set
11 Head cover
12 Receiver board
13 Li-Po battery
14 Camera
15 Inner shaft tube
16 Small axle bearing
17 Big axle bearing
18 Body frame
No Part name
19 Gear B
20 Tail pipe
21 Tail blade
22 Tail motor
23 Decoration parts
24 Gear A
25 Tail supporting pipe
26 Landing skid
