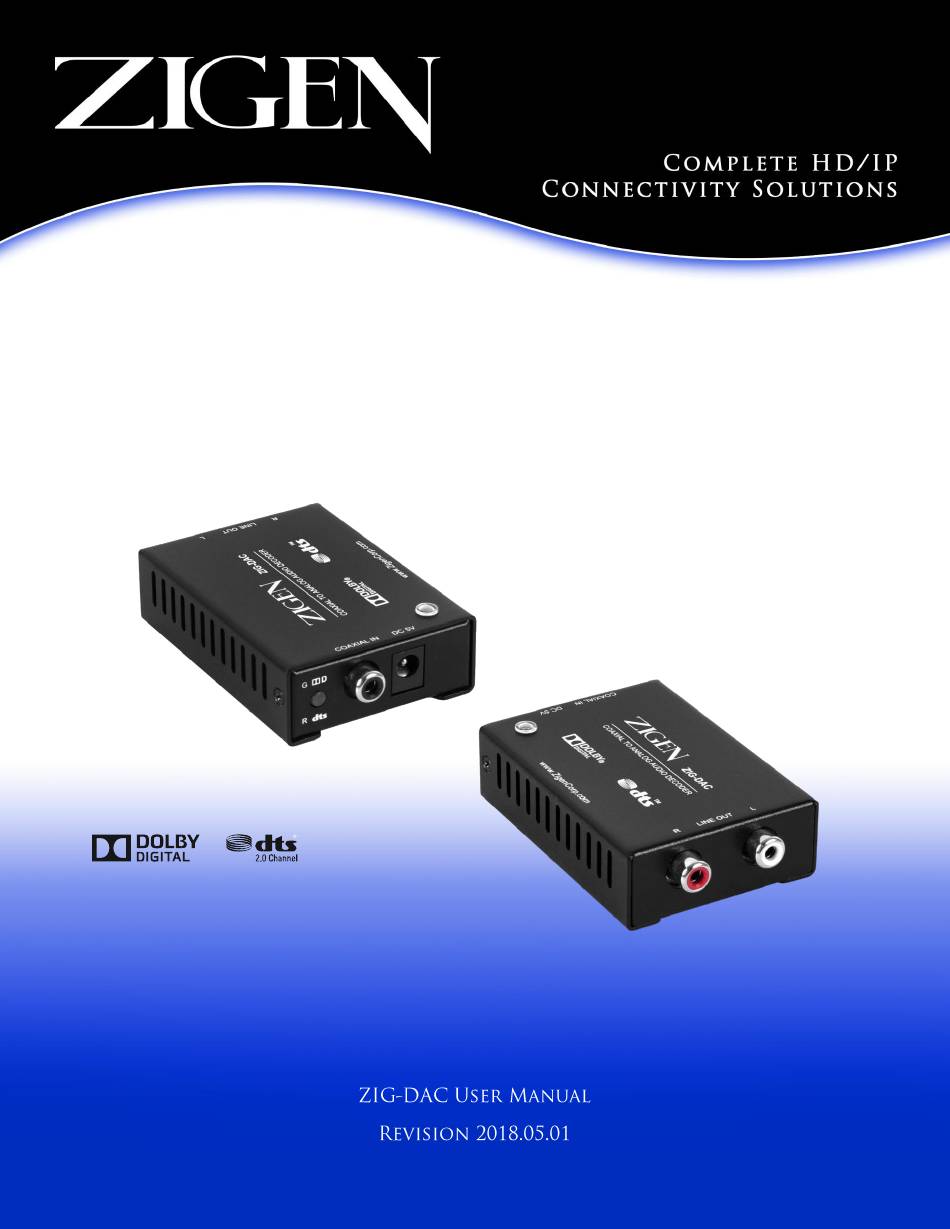

- Page 1 ZIG-DAC COAXIAL TO ANALOG AUDIO DECODER...
- Page 2 Important Safety Instructions 1. Do not use this product near water. 2. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 3. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 Return Policy If you would like to return a Zigen product, it can be done within 30 days of purchase for a full refund, less shipping and handling. Zigen will not be responsible for shipping and handling of product returns. Returns will only be accepted of products with proof of purchase, products in the original packaging with zero to minimal use and a Return Merchandise Authorization RMA number provided by Zigen.
- Page 4 Contacting Zigen Technical Support Tel: (818) 654-5252 Fax: (818) 654-5355 9:00AM - 5:00PM (PST) Email info@zigencorp.com www.zigencorp.com Mailing Address Zigen Corp. c/o Customer Service 6934 Canby Avenue Suite 107 Reseda CA 91335...
- Page 5 Features The ZIG-DAC takes a coaxial digital audio signal input in S/PDIF format and converts it into analog audio signal L/R output Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz) ...
- Page 6 Zigen or your reseller. © 2018 Zigen, Corp. All Rights Reserved. All trademarks are the property of their respective owners. Zigen, Corp. reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice.
-
Page 7: Table Of Contents
Table of Contents ZIG-DAC Introduction ……………………………………………………………………. 8 Front Panel ....................... 9 Back Panel ......................10 Connection Diagram ....................11 Specifications ......................12... -
Page 8: Zig-Dac Introduction
ZIG-DAC Introduction ® The ZIG-DAC with Dolby Digital & DTS 2.0 Decoder provides the ideal solution for converting a coaxial digital audio signal to analog stereo audio. It provides high quality sound conversion. The Dolby Digital & DTS 2.0 function guarantees that Dolby digital/DTS2.0 audio signals are down-mixed to analog stereo without loss of quality. -
Page 9: Front Panel
Front Panel Dolby/DTS LED Indicator When the source audio is encoded with Dolby Digital the LED will illuminate in green and when with DTS 2.0 the LED will illuminate in red other types of audio the LED will not illuminate. Coaxial IN Connect the Coaxial input to a coaxial digital audio source, such as a Game Console, HDTV or Set-top Box. -
Page 10: Back Panel
Back Panel R/L Line Out Connect the R/L analog audio output to the input of your AV Receiver or audio AMP. -
Page 11: Connection Diagram
Connection Diagram... -
Page 12: Specifications
Specifications Input Port 1 Digital RCA Input Output Port 1 pair of L/R Analog Outputs (2 RCA Individual Outputs) Power Supply 5V/1A DC (US/EU Standards, CE/FCC/UL certified) Output Level 2 Vrms ± 10% THD+N < 0.007% Frequency Response ±1 dB >...
