IMPORTANT!!!

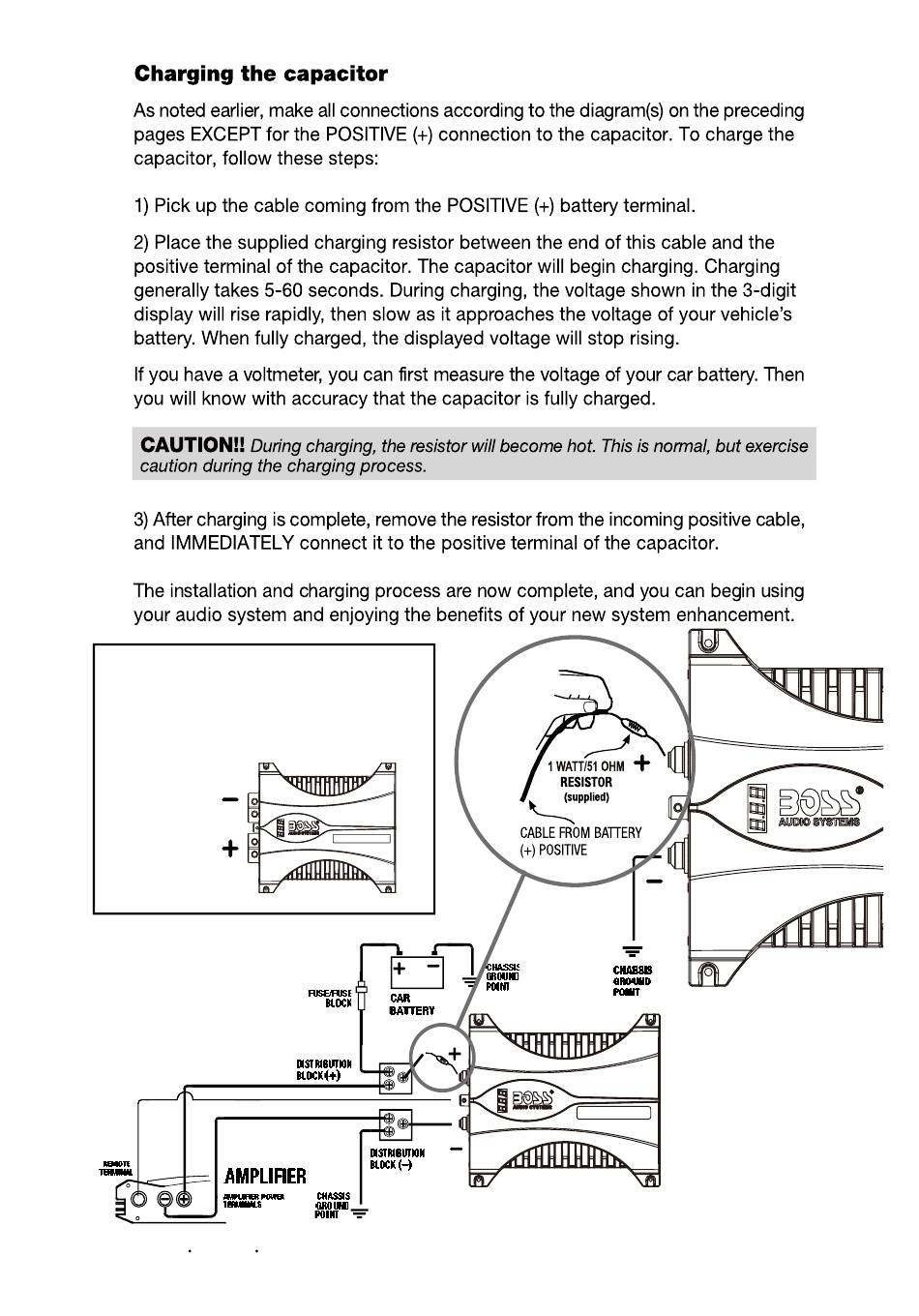

The diagram at right shows a
CAP100CR. On the CAP200CR and
CAP350CR, the polarity of the capacitor
terminals is reversed!
CAP200CR
CAP350CR
terminals
CAP100CR
CAP200CR
CAP350CR User's Manual - page 8
