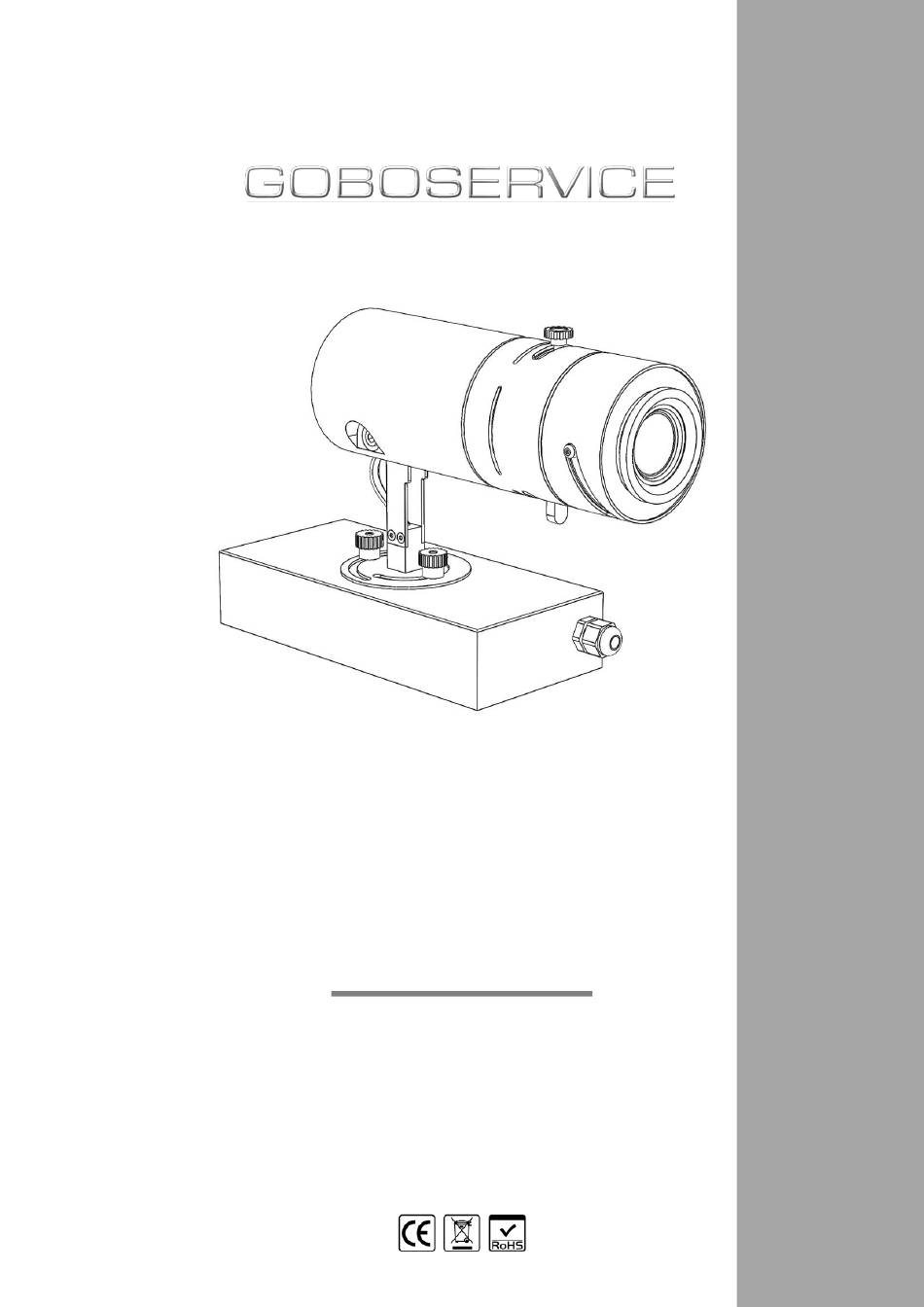

- Page 1 ENGLISH INSTRUCTION MANUAL GOLED Goboservice by Sunland Optics SRL Via Vecchia Provinciale 167 – Archi – 89121 Reggio Calabria (RC) +39 0965 813264 Via 2 Giugno19/10 – Bonate – 24040 (BG) +39 0350176860 www.goboservice.com info@goboservice.com...
- Page 2 - 2 - WWW.GOBOSERVICE.COM...
- Page 3 The knowledge and observance of manual contents are essential to guarantee the correct and safe installation, use and maintenance of the product. The Goboservice by Sunland Optics SRL company disclaims all liability for damage to the projector or to other property or persons deriving from installation, use and maintenance that is not carried out in accordance with this instruction manual, which must always accompany the unit.
-
Page 4: Table Of Contents
GOLED INDEX 1. SAFETY INFORMATION ..............................5 2. PACKAGE CONTENT ................................ 7 3. PROJECTOR INSTALLATION ............................8 3.1. FRONT VIEW OF THE PROJECTOR ........................8 3.2. INSTALLATION AND CONNECTION ........................8 3.3. GOBO INSTALLATION.............................. 9 4. USE OF THE PROJECTOR ............................... 10 4.1. -
Page 5: Safety Information
7. TEMPERATURE OF EXTERNAL SURFACE –The maximum temperature that can be reached on the external surface of the fixture, in a thermally steady state, is 60°C. 8. PROTECTION RATING - Direct exposure of the projector to rain, snow, hail GOLED - 5 -... - Page 6 GOLED or other liquids may damage the product. The projector must be kept away from wet surfaces. ATTENTION: water must not touch the projector when it is connected to the mains supply. 9. MAINTENANCE - Before starting any maintenance work or cleaning of the projector, cut off power from the mains supply.
-
Page 7: Package Content
Take out goods from the package and check if they have any damage caused by transport. The package should be disposed following your country’s regulations regarding the differentiated waste collection and disposal. N°1 Projector GOLED N°1 Instructions Manual and Warranty. 3. PROJECTOR INSTALLATION 3.1. -
Page 8: Installation And Connection
OD (Outer Diameter), which is the physical gobo diameter the ID (Inner Diameter), the circle diameter within which the image has to be contained. For GOLED gobos must have the following features: OD = 37,5mm Fig.3 ID = 30mm. -
Page 9: Gobo Installation
The gobo mounting/substitution must be done when the projector is switched off and not connected to the mains supply. If the gobo must be substituted after the projector usage, wait (about 5 minutes) so that all internal components of projector are cool. GOLED - 9 -... -
Page 10: Use Of The Projector
GOLED 4. USE OF THE PROJECTOR 4.1. CONNECTION OF THE PROJECTOR TO THE MAINS SUPPLY When connecting to the mains supply, standard safety and operating procedures applicable to any low voltage device must be followed. WARNING: it is essential that supply voltage and frequency are 230V-50/60Hz and that the power... -
Page 11: Sizing And Focus Of The Projected Image
(Fig.10); rotate it until the projected image is sharp. For certain distances it is necessary to unscrew the two screws placed on the side part of the Goled, close to the projector lens (Fig.11), slide the whole optical unit until the right focal length is set, then adjust the focus from the adjustment ring of the projector lens. -
Page 12: Technical Data
GOLED 5. TECHNICAL DATA SIZE & WEIGHT Length 30 cm Width 8,3 cm Height 20 cm Weight 1,2 kg BODY Material Steel Finshing Matt Color Black ELECTRICAL PARAMETERS Voltage 220/240 Vac - 50/60 Hz Wattage 27 W Wattage 27 W Brightness 3.200 lm... -
Page 13: Possible Problems-Causes And Solutions
The product may not be treated as a simple urban waste and must be disposed of properly according to the regulations concerning the differentiated waste disposal. GOLED - 13 -... -
Page 14: Warranty
GOLED 9. WARRANTY The product is warranted under the terms of the law. In case of malfunction during the warranty period, the product will be repaired or replaced according to manufacturer evaluation. For further information, refer to the terms of warranty on the CD-ROM. -
Page 15: Maintenance History
10. MAINTENANCE HISTORY Projector Mod.: Date of purchase: Serial Number: Date on which it was first turned on: NOTES GOLED - 15 -... - Page 16 GOLED - 16 - WWW.GOBOSERVICE.COM...
- Page 17 Goboservice by Sunland Optics SRL Via Vecchia Provinciale 167 – Archi – 89121 Reggio Calabria (RC) +39 0965 813264 Via 2 Giugno19/10 – Bonate – 24040 (BG) +39 0350176860 www.goboservice.com info@goboservice.com GOLED - 17 -...
