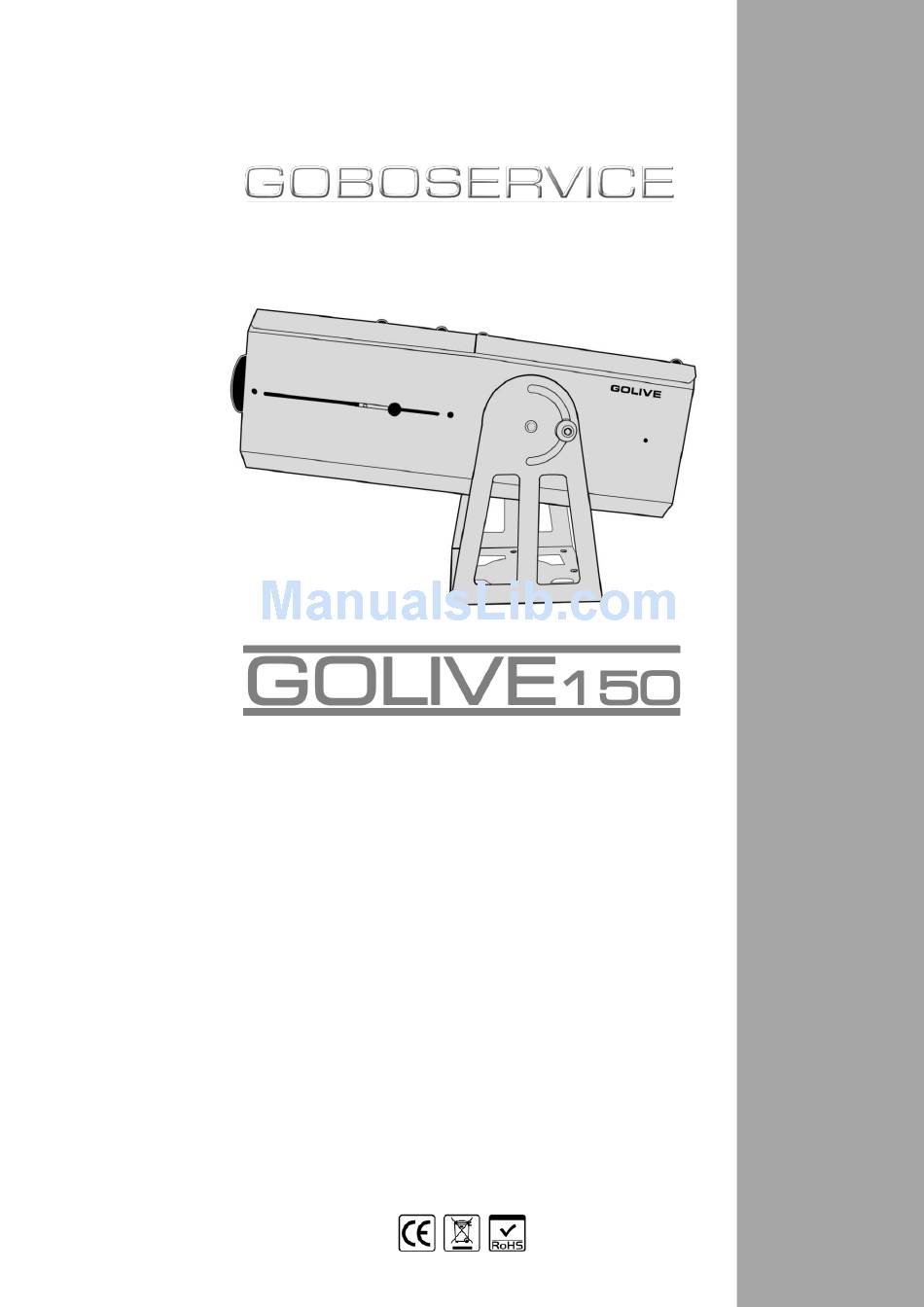

- Page 1 ENGLISH INSTRUCTION MANUAL Goboservice Lighting by Sunland Optics SRL Via Don Minzoni 14 , 89125 Reggio Calabria +39 0965 813264 Via Lombardia 269, 20861 Brugherio (MB) +39 02 23166538 www.goboservice.com info@goboservice.com...
- Page 3 The Goboservice by Sunland Optics SRL company disclaims all liability for damage to the projector or to other property or persons deriving from installation, use and maintenance that is not carried out in accordance with that reported in this instruction manual, which must always accompany the unit.
- Page 4 4.3. PROJECTED IMAGE FOCUS ..........................12 5. THECNICAL DATA ................................13 6. POSSIBLE PROBLEMS - CAUSES AND SOLUTIONS ....................14 7. DIRECTIVES ..................................14 8. DISPOSAL ................................... 14 9. WARRANTY ..................................15 10. MAINTENANCE HISTORY ............................16 - 4 - WWW.GOBOSERVICE.COM...
-
Page 5: Safety Information
Evaluate if the mains supply can withstand the power consuption of projector and, if it is, verify the maximum number of devices that it is possible connect to the electricity line in order to avoid overloading. GOLIVE150 - 5 -... - Page 6 In case of abnormalities in the coating or breakage of the housing that contains bright spare parts, do not turn on the projector and stop the use of the product. Do not install in areas available to minors or persons - 6 - WWW.GOBOSERVICE.COM...
-
Page 7: Package Content
The package should be disposed following your country’s regulations regarding the differentiated waste collection and disposal. N°1 Projector GOLIVE150. N°1 CD-ROM that contains Instructions Manual and Warranty. N°1 Lamp 150W (OSRAM POWERBALL HCI-T 150W/942 NDL PB). -
Page 8: Projector Installation
So for the lens mounting/substitution will be needed fix the support with the four supplied screws as shown in Fig.3 and mount the lens screwing it into the support. Fig.3 - 8 - WWW.GOBOSERVICE.COM... -
Page 9: Lamp Mounting Or Substitution
The lamp mounting/substitution must be done when the projector is switched off and not connected to the mains supply. If the lamp must be substituted after the projector usage, wait (about 15 minutes) so that all internal components of projector are cool. GOLIVE150 - 9 -... -
Page 10: Istruzioni Di Montaggio Dei Gobo
Once the gobo was located, install again the GOBO HOLDER into the projector and close the panel of projector with the special threaded knob; for this operation it is enough refer to the steps 5 and 6 of section 3.4. LAMP MOUNTING or SUBSTITUTION. - 10 - WWW.GOBOSERVICE.COM... -
Page 11: Accessories Power Supply
(the one in the below side) the functioning of accessory can be switched on/off using the switch placed on the rear part of projector (Element 3 of Fig. 2 - see the section 3.2. BACK SIDE VIEW OF PROJECTOR). Fig.10 GOLIVE150 - 11 -... -
Page 12: Use Of Projector
4.2. PROJECTOR ORIENTATION The GOLIVE150 projector can be moved both upward than downward; in order to direct the projector it is enough loosen, on both side, the two special bots (see Fig.11), place the projector in the desidered positions ans fix again the bots. -
Page 13: Thecnical Data
Gobo size OD: 52,8 mm ID: 48,0 mm Standard lens 100 mm Photometric diagram OPTIONAL ACCESSORIES Dynamic Effect Extendable stand Kit ZOOM Mounting Bracket Pole/Wall Prism Rain Cover Rotation Effect Shielding kit Light Wide Lens 56 mm GOLIVE150 - 13 -... -
Page 14: Possible Problems - Causes And Solutions
The product may not be treated as a simple urban waste and must be disposed of properly according to the regulations in force concerning the differentiated waste disposal. - 14 - WWW.GOBOSERVICE.COM... -
Page 15: Warranty
Dismantling (including partial) of projector that is not made by the manufacturer will void the warranty. Consumables (such as lamp and fuse) are not covered by the warranty. Manufacturer reserves the right to modify the content of this manual at any time and without notice. GOLIVE150 - 15 -... -
Page 16: Maintenance History
10. MAINTENANCE HISTORY Projector Mod.: Date of purchase: Serial Number: First date on which it was turned on: LAMP SUBSTITUTION DATE BRAND MODEL LIFE SUPPLIED ACCESSORIES - 16 - WWW.GOBOSERVICE.COM... - Page 17 NOTE GOLIVE150 - 17 -...
