Velleman KA08 Assembly Manual

Velleman KA08 Assembly Manual

I/o shield for arduino yun
Hide thumbs

Advertisement

Quick Links

Download this manual
KA08

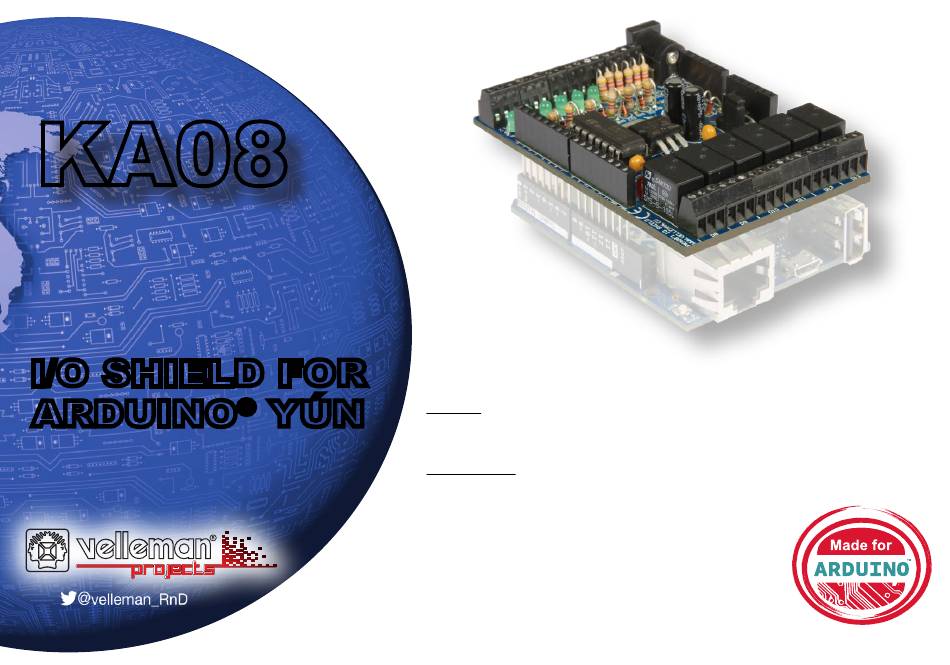

ILLUSTRATED ASSEMBLY MANUAL HKA08P'1
I/O SHIELD FOR
ARDUINO
YÚN
®
General purpose INPUT - OUTPUT shield for Arduino Yún
Features
• suited for Arduino Yún
• requires 1 Arduino Yún (not included)
Specifications
• inputs:
» 6 analogue
» 6 digital
• outputs: 6 NO/NC relay outputs (1A/30VDC)
• LED status indicators
• power supply: 7-15VDC
• dimensions: 80x54mm / 3.15 x 2.12"

Advertisement

loading
Need help?

Need help?

Do you have a question about the KA08 and is the answer not in the manual?

Questions and answers

Related Manuals for Velleman KA08

Summary of Contents for Velleman KA08

  • Page 1 KA08 ILLUSTRATED ASSEMBLY MANUAL HKA08P’1 I/O SHIELD FOR General purpose INPUT - OUTPUT shield for Arduino Yún ARDUINO YÚN ® Features • suited for Arduino Yún • requires 1 Arduino Yún (not included) Specifications • inputs: » 6 analogue » 6 digital • outputs: 6 NO/NC relay outputs (1A/30VDC) • LED status indicators • power supply: 7-15VDC • dimensions: 80x54mm / 3.15 x 2.12”...
  • Page 3 Velleman N.V. Legen Heirweg 33 9890 Gavere (België)
  • Page 4 Subscribing our newsletter?, visit www.vellemanprojects.eu Forum Forum Participate our Velleman Projects Forum...
  • Page 5 assembly 1. Assembly (Skipping this can lead to troubles ! ) hints Ok, so we have your attention. These hints will help you to make this project successful. Read them carefully. 1.1 Make sure you have the right tools: • A good quality soldering iron (25-40W) with a small tip. • Wipe it often on a wet sponge or cloth, to keep it clean;...
  • Page 6 DO NOT BLINDLY FOLLOW THE ORDER OF THE COMPONENTS ONTO THE TAPE. ALWAYS CHECK THEIR VALUE ON THE PARTS LIST! - 6 -...
  • Page 7 Construction CONSTRUCTION Diodes LED’s ‰ LD1 : Red Watch the polarity! Ceramic capacitors ‰ LD2 : Red ‰ D1 : 1N4148 ‰ LD3 : Red ‰ D2 : 1N4148 ‰ LD4 : Red ‰ D3 : 1N4148 ‰ LD5 : Red C (-) ‰...

  • Page 8: Electrolytic Capacitors

    Construction ‰ R12 : 470 (4 - 7 - 1 - B) Relays DC-jack ‰ R13 : 4K7 (4 - 7 - 2 - B) ‰ R14 : 4K7 (4 - 7 - 2 - B) ‰ RY1 ‰ R15 : 4K7 (4 - 7 - 2 - B) ‰...

  • Page 9: Connection Diagram

    Connection diagram CONNECTION DIAGRAM OUTPUT MAX. 1A / 30VDC DIGITAL INPUTS 101011101011001... VOLTAGE OUT ANALOG ANALOG INPUTS 0 ... 5V POWER SUPPLY 7 - 15VDC Contrary to the Arduino Uno, the use of the Arduino YUN requires an external power supply. (Attention: the relays only switch when a 12 VDC power supply is connected) - 9 -...

  • Page 10: General Information

    100µ 100nf General information SK20 AREF SK18 GENERAL INFORMATION The I/O shield makes it easy to switch loads and handle digital/analogue signals. The digital inputs and outputs feature an LED that show the status of the port. SK10 SK11 SK12 SK13 DIGITAL OUTPUT SECTION (FIG.1): DIGITAL INPUT SECTION (FIG.2):...
  • Page 11 General information ANALOGUE OUTPUTS (PWM): SK10 SK11 SK12 SK13 SK14 Lines 3, 5 and 6 can be configured as analogue output (PWM, +5 V). With a value between 0 and 255, the duty cycle can vary between 0 and 100 %. Attention: The LED will have an inverse logic in this mode: 0 % duty cycle = LED on, 100 % duty cycle = LED off. All digital inputs have a common ground (GND).
  • Page 12 Connection diagram 1N5819 RELAY TSC112D3H SK17 SK19 OUT1 SK15 UA7805 OUT2 OUT3 OUT4 LED3RL OUT5 OUT6 100µ/16-25V DC JACK 100nf 100nf SK16 OUT7 ARDUINO UNO 3PIN HEADER COMD RELAY TSC112D3H ULN2003A 100µ/16-25V 100nf SK20 LED3RL AREF SK18 RELAY TSC112D3H LED3RL SK10 SK11 SK12...
  • Page 13 - 13 -...

  • Page 14: Open Collector Outputs

    Leds and how to use them Leds feature a specific voltage Never connect leds in parallel drop, depending on type and colour. Check the datasheet for exact voltage drop and rated current ! How to Calculate the series resistor: Example: operate a red led (1.7V) on a 9Vdc source. Required led current for full brightness: 5mA (this can be found in the datasheet of the led) Supply voltage (V) - led voltage (V) = series resistance (ohms)
  • Page 16 The new Velleman Projects catalogue is now available. Download your copy here: www.vellemanprojects.eu Modifications and typographical errors reserved - © Velleman nv. HKA08’IP Velleman NV, Legen Heirweg 33 - 9890 Gavere.
