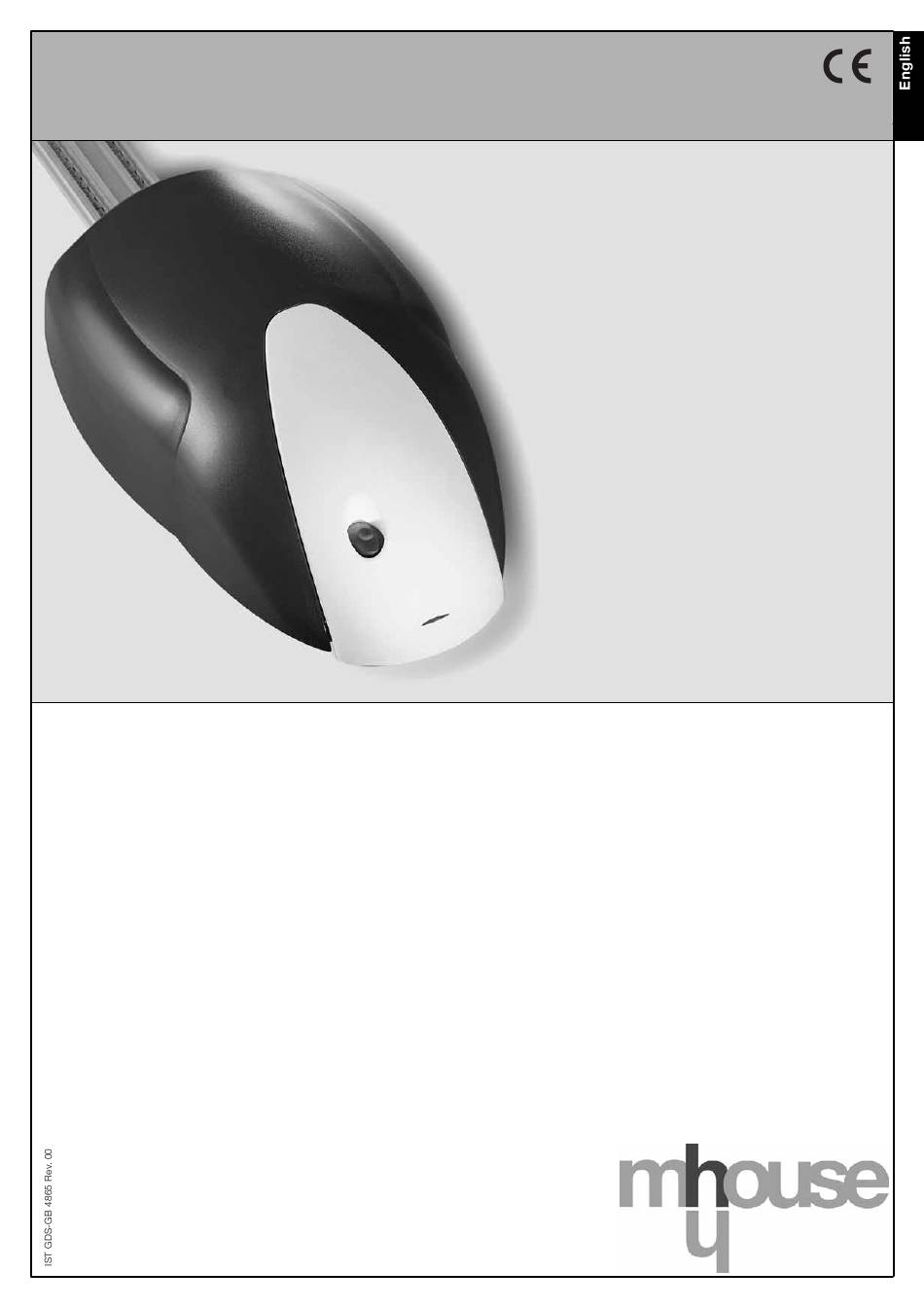

- Page 1 MhouseKit GDS For the automation of a sectional or overhead door. Installation instructions and warnings...
-
Page 2: Table Of Contents
MHOUSE S.r.l. improper use of the products; via Pezza Alta, 13, ZI 31046 Oderzo MHOUSE, in order to improve its products, reserves the right to modify Tel: 0422 202109 their technical characteristics at any time without prior notice. In any... -
Page 3: Warnings
1 Warnings • If this is the first time that you install a GDS sectional or overhead door • The GDS automation system must not be used until the automation system we recommend that you dedicate some of your time automation has been commissioned. -
Page 4: Product Description

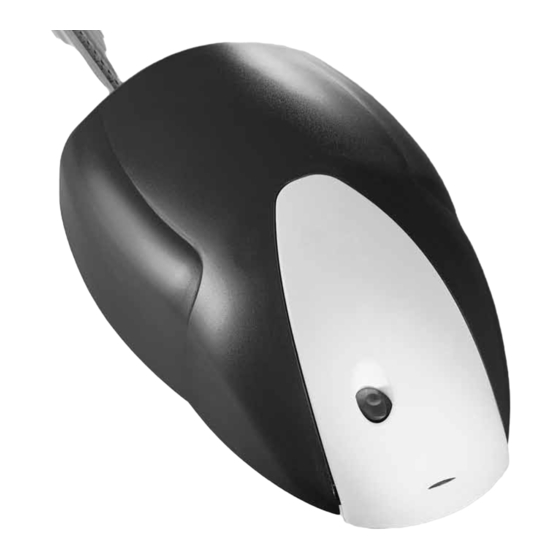

2 Product description 2.1 Applications GDS is a set of components designed for the automation of sectional or GDS operates with electric power. In the event of a power failure, the overhead doors in residential applications. gearmotor can be released using a suitable cord in order to move the door manually. -
Page 5: Installation
1 “WARNINGS”. 3.1 Preliminary checks GDS must not be used to power a door that is not efficient and If the door to be automated is an overhead type with springs or safe. It cannot solve defects resulting from incorrect installation counterweights, it will be necessary to install an OSCILLATING or poor maintenance of the door. -
Page 6: Operating Limits
Chapter 15 “Technical Characteristics” provides the fundamental data needed to determine whether all the GDS components are suitable for the intended application. In general GDS is suitable for the automation of sectional and overhead doors for residential applications having the following maximum dimen- sions:... -
Page 7: Connection To The Electrical Mains
1 Place the screws in the slit as shown (Fig. 14). Fig. 17 5 Fix GDS to the door frame or to the wall with rivets and anchors (Fig. 18) maintaining a distance of 30 mm from the door‘s maximum travel Check the drilling measurements. -
Page 8: Electrical Connections
Input with “Stop” function (emergency, shutdown or extreme safety). It is normally closed. Photo Input for safety devices (photocell, pneumatic edges). It is normally closed. STEP-BY-STEP Input for cycle function control (“Open-Stop-Close-Stop”), the “Step-by-Step” button activates this input (Fig. 24) 9-10 Aerial Input for the optional radio receiver aerial. 8 Instructions GDS... -
Page 9: Notes On Connections
3.4.5 Power Supply Connection The connection of the GDS to the mains must be made by a qual- To carry out tests, insert the plug of GDS in a power outlet; if necessary, ified electrician. use an extension cord. -
Page 10: Programmable Functions
(by setting the pause time) after which the closing manoeuvre is matic gates and doors are moved. carried out. 4.1 Pre-set functions The control unit GDS features some programmable functions (see chap- ter 5) that are initially pre-set in a typical configuration which satisfies most automatic systems: • Function : “Semiautomatic”... -
Page 11: Programming Current Sensitivity
To test the control unit carry out the following procedure (the sequence will invert movement during the closing manoeuvre. The devices con- refers to the GDS control unit with pre-set functions). nected to the “Stop” input work during both the opening and closing •... -
Page 12: Maintenance
24Vac during the manoeuvre. If the voltage corre- lowing the relative instructions. sponds, the problem is caused by the flashing light that must be checked by following the relative instructions. 12 Instructions GDS... -
Page 13: Radio Receiver Description
One memory section is occupied for each button. The GDS control unit only uses the first of the 4 receiver channels, in particular, output No. 1 is connected to the “Step-by-step” output; outputs 2-3-4 are not used. -
Page 14: Memorising A Remote Control
Memorisation mode II Example (each button can be associated with a particular output) GDS can only use output no. 1. Do not use the other outputs, therefore Press and release the button on the receiver Make sure that the LED flashes once. -
Page 15: Deleting All The Devices
14 Technical characteristics GDS is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the Nice S.p.a group. Nice S.p.a., in order to improve its products, reserves the right to modify their technical characteristics at any time without prior notice. In any case, the manufacturer guarantees their functionality and fitness for the intended purposes. -
Page 16: Annexes
The following annexes are designed to help you prepare the technical documentation. 15.1 Annex 1: CE Declaration of Conformity of GDS Components CE Declaration of Conformity of GDS components; this statement must be attached to the technical documentation. 15.2 Annex 2: CE Declaration of Conformity of automated sectional or overhead door CE Declaration of Conformity to be filled in and delivered to the owner of the power operated sectional or overhead door. - Page 17 Declaration of Conformity according to Directive 98/37/CE, Annexe II, part B (CE declaration of conformity by manufacturer) GDS is produced by NICE S.p.a. (TV) I, MHOUSE S.r.l. is an affiliate of the Nice S.p.a group. Number: 185/GDS/GB Date: 13/02/2004 Revision: 00 The undersigned: Lauro Buoro declares that the following products Manufacturer’s name:...
- Page 19 Declaration of Conformity According to Directive 98/37/EEC, ANNEXE II, part A (CE declaration of conformity for machines) The undersigned / Company: (name or business name of person who has put the power operated sectional or overhead door into service) (address) Declares under his/her sole responsibility that: Automation : power operated sectional or overhead door...
-
Page 21: Annex 3: Operating Guide
If the safety devices are out of order the automation must be repaired as soon as possible. Fig. 26 Function(*) T1 button T2 button T3 button T4 button With pushbutton (incorporated) The movement of the door can be controlled by operating the button [A] Fig. 27 Instructions GDS 21... -
Page 22: Maintenance Operations To Be Performed By The User
Gearmotor release The gearmotor is equipped with a mechanical system which allows the door to be opened and closed manually (i.e. as if GDS were not pres- ent). The manual operation must be resorted to in case of power failures or system malfunctions. - Page 24 Mhouse Via Pezza Alta, 13 - Z.I. Rustignè 31046 Oderzo TV Italia Tel. +39 0422 20 21 09 Fax +39 0422 85 25 82 info@mhouse.biz www.mhouse.biz...
