CE-P 2.5 30/48
Battery charger / Power Supply
Installation and User Guide
The CE-P is dual-voltage, and is designed to charge 30 volt or 48 volt batteries having a maximum capacity of
40 Ah or to maintain the charge of batteries having greater capacity. With numerous protections and advanced
functions, it guarantees reliable operation and extended life for your batteries.
It can also be configured in a power supply mode, with an adjustable output voltage.
1
INSTALLATION AND CONNECTION

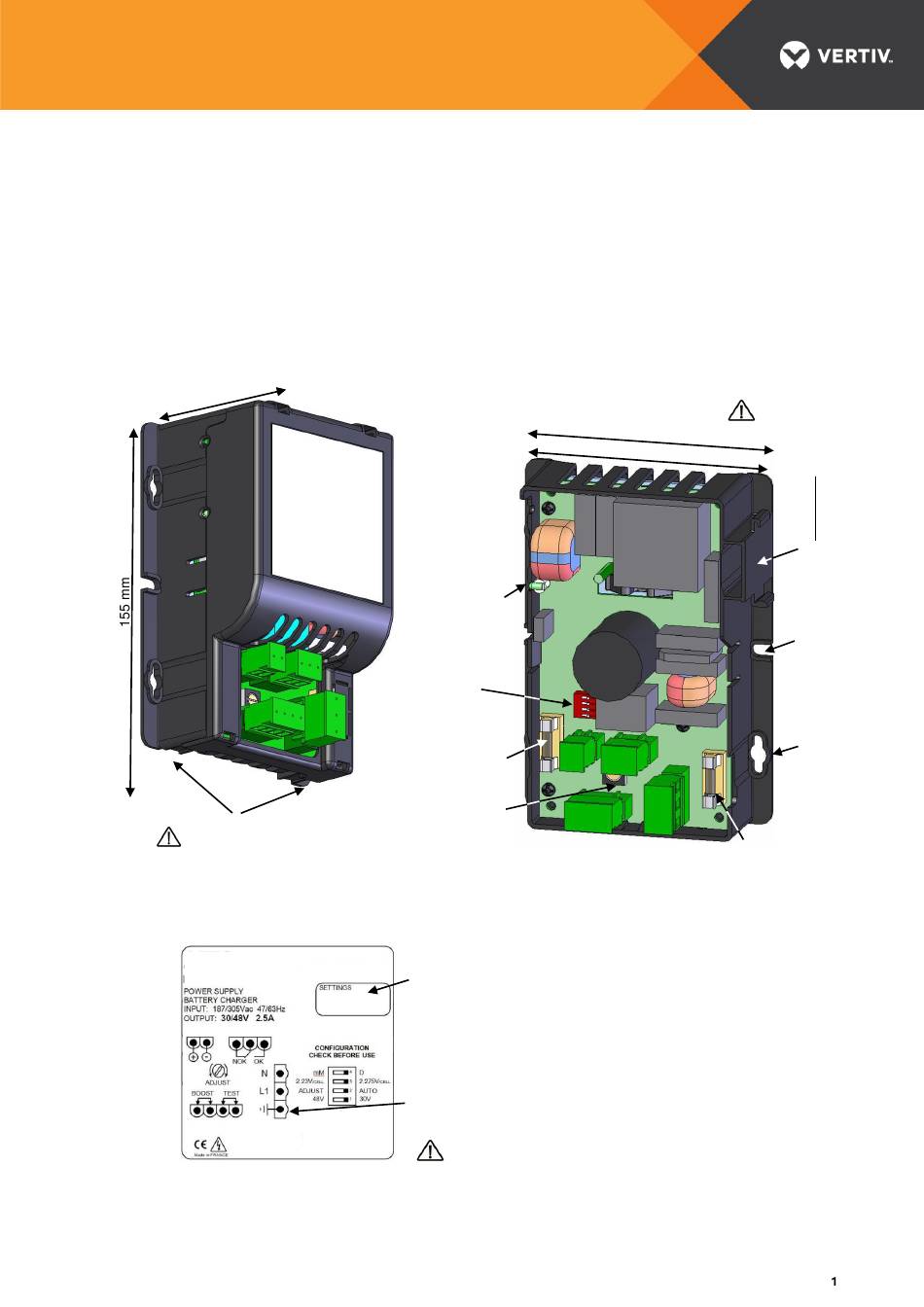

65 mm
Unclip to open
Do not open with open on!
©2017 Vertiv Co. All rights reserved
CE-P
EC2
EC3
EC4
EC1
For the specific output voltage settings, indicate the value
in the "SETTINGS" box

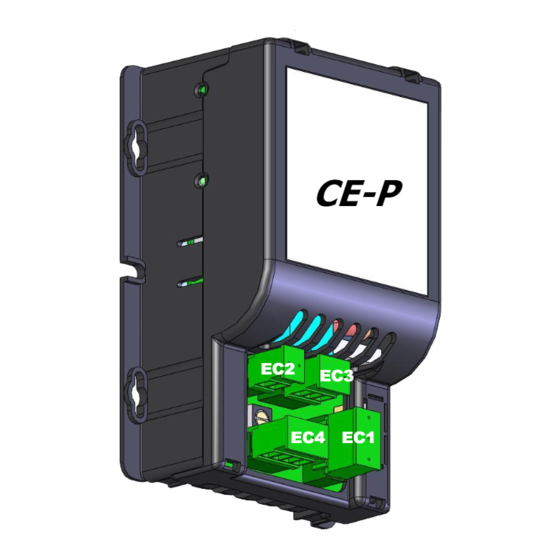

Connectors EC1 to EC4 are unpluggable
Capacity of connection terminals: 2.5 mm²
Minimum connection wire size of N-L-PE and+/- terminals: 1.5 mm²
Other terminals: min 0.8 mm²
|
CE-P 2.5 30/48
|
6011154
LED
SWITCH
1,2,3,4
F2
ADJUST
Check the configuration before turning on power!
|
Notice utilisation
|
installation direction!
112 mm
106 mm
Omega rail
Center-to-center
Center-to-
distance
95 x 90 mm
FS
v06
|
05.17
Respect the
Mounting
possibilities
or
2 x M5
distance
95 mm
or
4 x M4
center
