ALPHA 900 - 1800
Battery charger / DC Power Supply
1
INSTALLATION
Side
Front layout
layout

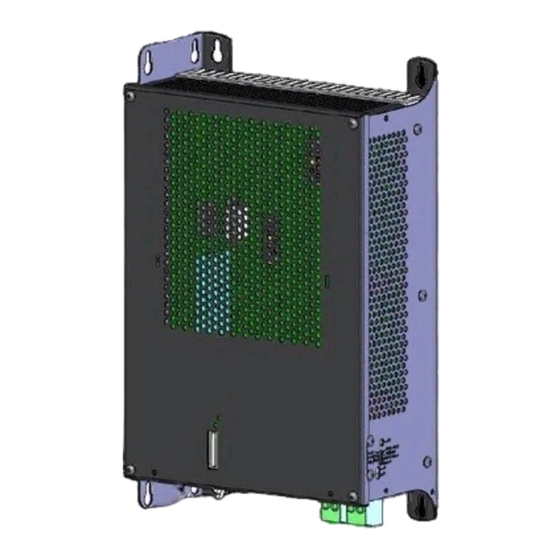

ALPHA 900
Option Kit 6 007 983
Side mounting
2

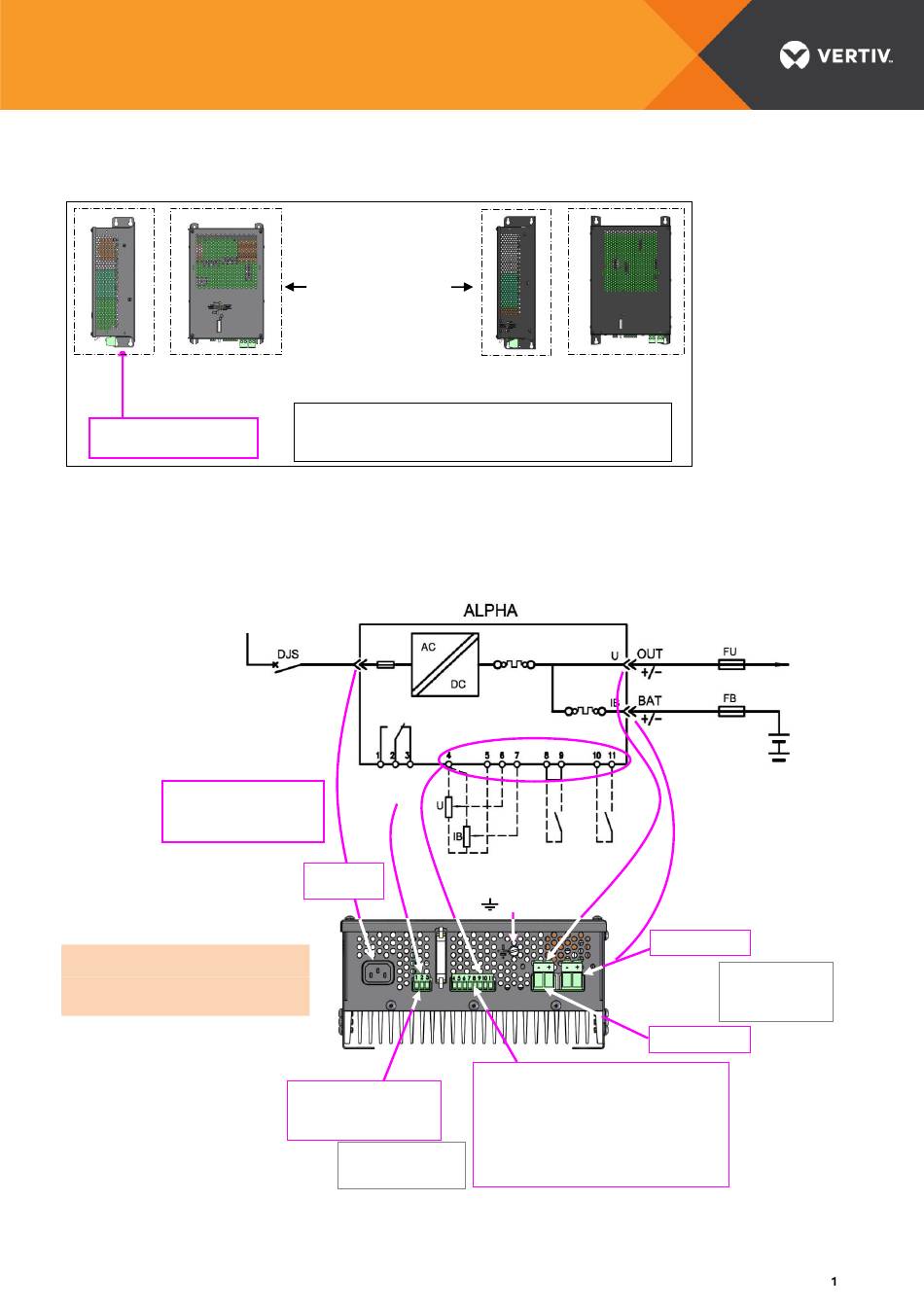

CONNECTION
220/240Vac
50/60Hz
*
U & IB = option Kit
External Potentiometer
Réf. : 6 002 928
To
more
information,
"6007539 Alpha 900 user's manual"
or "6008595 Alpha 1800 user's
manual
©2017 Vertiv Co. All rights reserved
Ventilation : 50mm free
space around
ALPHA UNIT
IMPERATIVE VERTICAL INSTALLATION
Connectors in bottom
DJS curve C :
6A Alpha 900
16A Alpha 1800
Fault
fault
Mains
(male IEC type)
to
see
Fault report
1-2 : NO
2-3 : NC (closed at fault)
Terminal 1 to 11
0,8mm² mini
2,5mm² maxi
|
ALPHA 900 - 1800
Front layout
Side layout
ALPHA 1800
*
Boost
Stop
:
Earth (
)
External controls
4 : +Vcc
5 : 0V
6 : U setting (switch 2 set to external setting)
7 : IB setting (switch 3 set to external setting)
8 - 9 : ON / OFF static stop
10-11 : boost
|
6012559
|
User Manual
Bat : Battery
Terminal +/- wire
Mini
0.75mm²
900 MAXI 10mm²
1800 MAXI 16mm²
Out : Load
(open = stop)
|
v03
|
05.17
