Revision date: 2017-08-31
R
GAS VERSION I-GUM
USER MANUAL
CHEWING GUM REMOVAL , GAS PROVIDE ENERGY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-gum and is the answer not in the manual?

Questions and answers

Summary of Contents for i-team i-gum

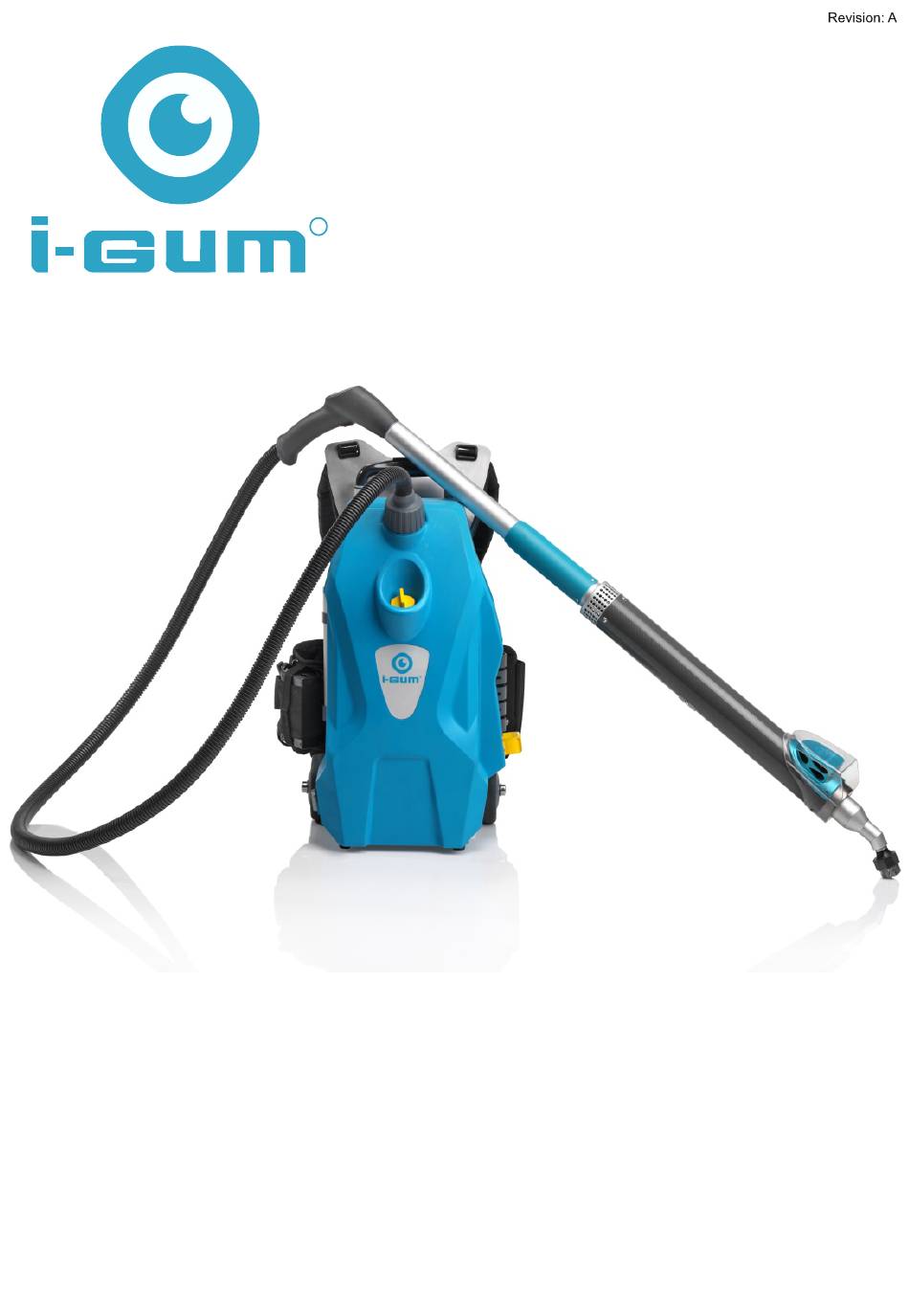

  • Page 1 Revision date: 2017-08-31 GAS VERSION I-GUM USER MANUAL CHEWING GUM REMOVAL , GAS PROVIDE ENERGY...
  • Page 2: Table Of Contents

    CONTENTS Important Safety Instructions 01~03 Package Check List Machine Parts Preparation For Use 06~09 Installation 1 06~07 Installation 2 Instruction for control panel 10~11 Using the machine Turning OFF the machine Maintenance Trouble shooting Accessory Product Specification Exploded drawing and spare parts list 15~22 23~26 Safety Data Sheet...
  • Page 3: Important Safety Instructions

    READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE LITHIUM-ION BATTERY Nominal Voltage:14.8V Energy/Capacity: 6.6Ah Maintenance/servicepeople SAFETY ADVICE (not i-gum operators) Do not crush, pierce need to keep a distance to or damage in any way. READ ALL INSTRUCTIONS the integrated magnets in igum Do not heat or incinerate.
  • Page 4: Installation

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE DO NOT OPERATE THE MACHINE WITHOUT READING AND UNDERSTANDING THE OPERATING INSTRUCTIONS. IF THE MACHINE IS OPERATED INCORRECTLY IT CAN POSE DANGER TO THE OPERATOR AND OTHERS AND WILL INVALIDATE THE MANUFACTURERS WARRANTY.
  • Page 5 IMPORTANT NOTICE: Always complete a test patch on the above surfaces to make sure no damage occurs to the flooring of surface Service Pack: When a machine is purchased, it require a service pack. Each service pack provides a continuous 8 hours operation and consists of: 4x Chemical Bottles Nylon wire Brush 3x Steel wire Brush...
  • Page 6: Package Check List

    Package Check list: When you open the color box and you can find the parts as below showing: Machine: MAIN BODY 1x LANCE 1x Accessory: Broom with telescopic handle 1x Chemical bottles 4x LPG Gas Cartridges 2x Battery Charger 1x Nylon Wire Brush 2x Steel Wire Brush 3x Cable For Charger 1x...
  • Page 7: Machine Parts

    Machine parts: Control panel Hose Broom Lance Trolley handle Shoulder harness & Waistband Fluid inlet hole Water level Exhaust Wheel Brush Water drop disk Self-lock switch for gas valve Drawer Handle Brushes Storage Tube Gas Cartridges Drawer Battery Power Display Fuse Charger Plug Timer...
  • Page 8: Preparation For Use

    Preparation For Use Installation1. 1. Install the water drop disk to body. 2. Screw a steel wire or nylon wire brush onto the end of the nozzle of the lance. open close 3. Place the lance in the lance holder of body. There are 2 magnets can attract the lance. (When you are in cleaning working or carry the machine on back, the lance should be taken on hand.)
  • Page 9 4. Open the brushes storage tube cap and you can place the other 4x brushes in the tube. insert the brushes storage tube to the holder of body. 5. Assembly the brush to telescopic wand for BROOM. 6. Insert the broom to broom holder of body. (When you are in cleaning working or carry the machine on back, the broom should be taken on hand.)
  • Page 10: Installation 2

    Preparation For Use Installation2. Before operating the machine: 1. Ensure that the battery has been fully charged before each operation. DO NOT PLACE THE CHARGER IN PACKAGE, WHEN IT IS IN CHARGING. BECAUSE CHARGER NEED COOLING. 2. Pour Chemical into fluid tank. Take off the fluid inlet cap and then pour chemical into the fluid tank.
  • Page 11: Instruction For Control Panel

    Preparation For Use INSTRUCTION FOR CONTROL PANEL ON/OFF Button: Power supply for handle control. IGNITION Button: Ignite the gas in lance (Spacing 5 seconds, press once) H/M/L Button, Adjust the fluid flowing in low speed/middel speed/high speed. (Flowing speed indicator light will be bright and pump will work) Flowing speed indicator light Cooling fan indicator light INSTRUCTION FOR BODY CONTROL PANEL...
  • Page 12: Using The Machine

    Using the machine: LOGIC FOR OPERATION Open the gas storage drawer and turn on the gas valve, Then push the drawer back(must be pushed to location). Turn on the Mainswitch on body Turn on ON/OFF button on lance control panel Press H/M/L button on lance control panel INDICATOR LIGHT will be bright, and pump will run in full speed.
  • Page 13: Turning Off The Machine

    Turning OFF the machine: ON/OFF Button Cooling fan light Turn off the gas safety switch first Turn off the on/off button, pump and pump (The button should be high) light will be off, but cooling fan and cooling fan light will be off after delay 3 minutes(Because the lance need to be cooled).
  • Page 14: Maintenance

    Maintenance Machine maintenance The GAS VERSION I-GUM machine requires very little maintenance. Wipe down the machine periodically with a clean cloth. And wipe down the lance, or change the new brush for lance. DO NOT spray water directly over the top of machine or top connector cap.
  • Page 15: Trouble Shooting

    Trouble shooting SOLUTION PROBLEM CAUSE No power to machine Replace a new battery Battery is bad Power switch failure Replace power switch Replace cable or wire for hose cable or wire in hose broken Input the chemical from bottes No steam come out The fluid tank do not have chemical Install Gas cartridges No Gas cartridges be installed...
  • Page 16: Product Specification

    PRODUCT SPECIFICATION Gas version i-gum Product Size (body unit): 347*330*500 mm Lance Size: 60*1100 mm Weight (except accessory): 10.0 kg Lance Weight: 1.8 kg Broom Extended Length: 1.3 M Li-ion Battery: 14.8V, 6.6Ah Tank Capacity: 2.5 L Gas Drawer Capacity:...
  • Page 17: Exploded Drawing And Spare Parts List

    1/8 Exploded drawing and spare part list I-GUM LANCE EXPLODED DRAWING...
  • Page 18 LANCE page 2/8 spare parts list Item Part No. Discription Material Q'ty 106.0002.7 Control panle PCB gas version PCB board 97.2004.3_remark Handle cover right, 431C PA66+20%GF 97.2003.3_remark Handle cover left, 431C PA66+20%GF 106.0002.2 Handle wand 106.1151.0 Soft rubber for lance handle Rubber 106.1111.5 M4*6 Hex-sokect botton head screw...
  • Page 19 page 3/8 BODY UNIT EXPLODED DRAWING1...
  • Page 20 page 4/8 BODY UNIT EXPLODED DRAWING2...
  • Page 21 Rubber 24.0007.0 DC connector 2.5 106.0132.0 Fuse, 3A LED light PCB for battery power 106.2100.0 106.0139.1 Logo sticer with printing"I-GUM" Water drop disk 106.2165.0 106.2183.0 Hank screw for water drop disk SUS 304 Magnet box for lande holder 106.2054.0 POM, UL94-V0 106.1111.1...
  • Page 22 page 6/8 Body spare parts list ---connect with first page--- ITEM PART NO. DISCRIPTION MATERIAL 106.1111.26 M4*12 Hex-sokect botton screw SUS 304 106.1111.15 M4*28 Hex-sokect botton screw SUS 304 106.2006.0 Bottom housing ABS, UL94-V0 72.0261.0 Nut M4 nylon stainless steel SUS 304 Input connector For Gas Regulator 106.2074.0...
  • Page 23 page 7/8 Gas Cartridges storage drawer spare parts list ITEM PART NO. DISCRIPTION MATERIAL 106.1111.25 M4*12 Flat head self-tapping screw SUS 304 106.2004.0 Handle of drawer 106.2003.0 Drawer for gas bottle storage 106.1111.10 M4*8 hex-sokect botton head screw SUS 304 106.2179.0 Silicon rubber for gas bottle cap Silicon rubber...
  • Page 24 page 8/8 ITEM PART NO DISCRIPTION MATERIAL Q'TY 97.0043.0 Breathing valve Rubber 106.2145.0 Rubber for fluid outlet cap Rubber 106.2166.0 Fluid level sensor pin 106.2185.0 LED light PCB for fluid tank LED, PCB board 106.2079.8 Wire for tank LED light PVC, Cu 106.2079.5 Wire for water detecting connector PVC, Cu...
  • Page 25: Safety Data Sheet

    SAFETY DATA SHEET according to 1907/2006/EC, Article 31 Page GUM REMOVER SOLUTION Revision Revision date 2014-07-24 SECTION 1: Identification of the substance/mixture and of the company/undertaking 1.1. Product identifier Product name GUM REMOVER SOLUTION 1.3. Details of the supplier of the safety data sheet Company Merlin Chemicals Ltd Address...
  • Page 26 Page GUM REMOVER SOLUTION Revision Revision date 2014-07-24 5.2. Special hazards arising from the substance or mixture Wear suitable respiratory equipment when necessary. 5.3. Advice for firefighters Wear:. Self-contained breathing apparatus. SECTION 6: Accidental release measures 6.1. Personal precautions, protective equipment and emergency procedures Ensure adequate ventilation of the working area.
  • Page 27 Page GUM REMOVER SOLUTION Revision Revision date 2014-07-24 12.1. Toxicity No data is available on this product. SECTION 13: Disposal considerations General information Dispose of in compliance with all local and national regulations. SECTION 14: Transport information ADR/RID The product is not classified as dangerous for carriage. Not classified as hazardous for transport.
