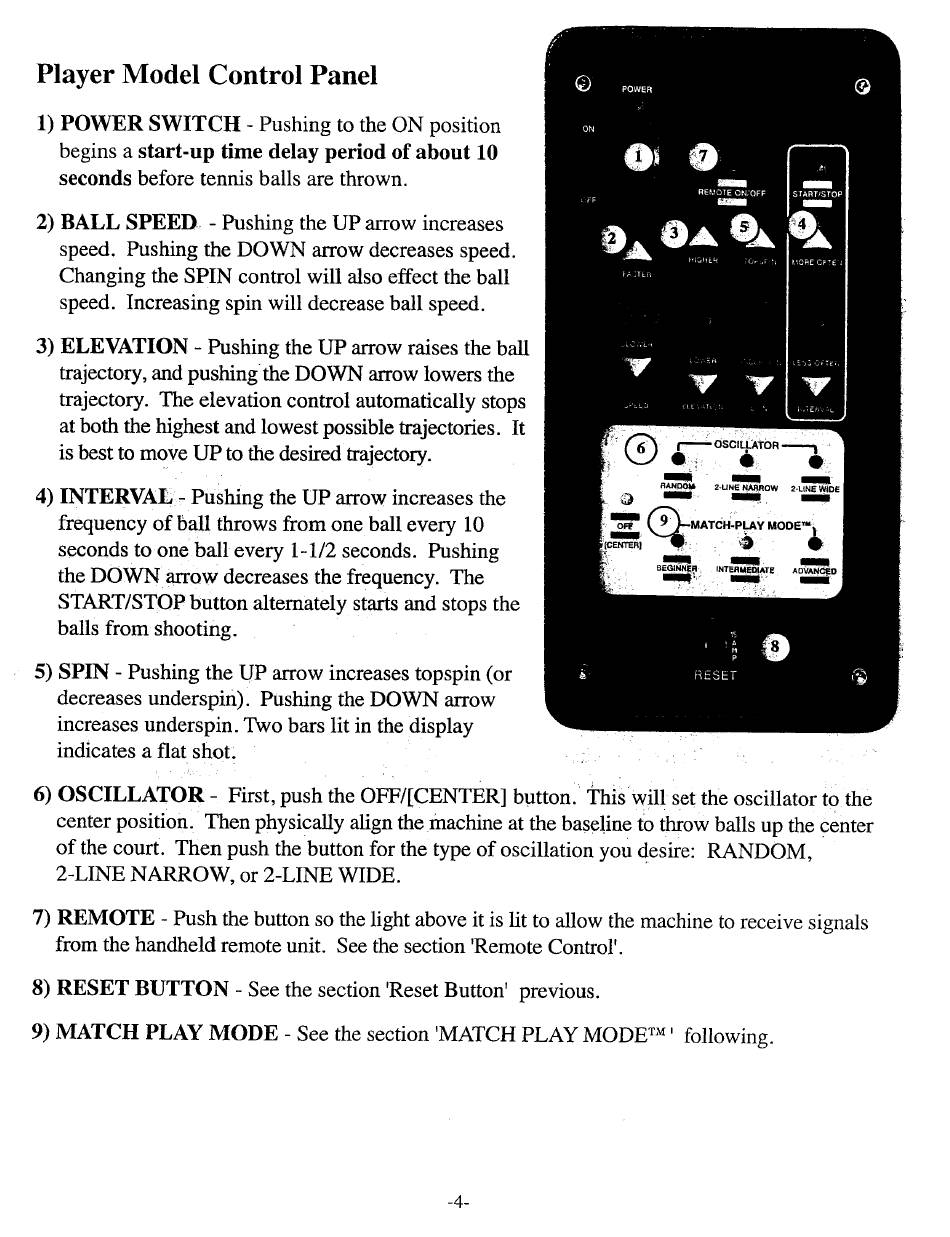

Player Model Control Panel
1) POWER SWITCH - Pushing to the ON position
begins a start-up time delay period of about 10
seconds before tennis balls are thrown.
2) BALL SPEED. - Pushing the UP arow increases
speed. Pushing the DOWN arow decreases speed.
Changing the SPIN control will also effect the ball
speed. Increasing spin will decrease ball speed.
3) ELEVATION - Pushing the UP arow raises the bal
trajectory, and pushing'the DOWN arow lowers the
trajectory. The elevation control automatically stops
at both the highest and lowest possible trajectories. It
is best to move UP to the desired trajectory.
4) INTERVAL.. Pushing the UP arow increases the
frequency of ball throws from one ball every 10
seconds toone ball every 1-1/2 seconds. Pushing
the DOWN arow decreases the frequency. The
START/STOP button alternately star and stops the
balls from shooting.
5) SPIN - Pushing the UP arow increases topspin (or
decreases underspiri). Pushing the DOWN arow
increases underspin. Two bars lit in the display
indicates a flat shot.
6) OSCILLATOR - First, push the OFF/(CENTERJ button. This
will set the oscillator to
the
center position. Then physicaly align the
machine at the baseline to throw balls up the center
of the court. Then push the button for the type of oscillation you ctesire: RANDOM,
2-LINE NARROW, or 2-LINE WIDE.
7) REMOTE - Push the button so the light above it is lit to allow the machine to receive signals
from the handheld remote unit. See the section 'Remote Control'.
8) RESET BUTTON - See the section 'Reset Button' previous.
9) MATCH PLAY MODE - See the section 'MATCH PLAY MODETM i following.
-4-
