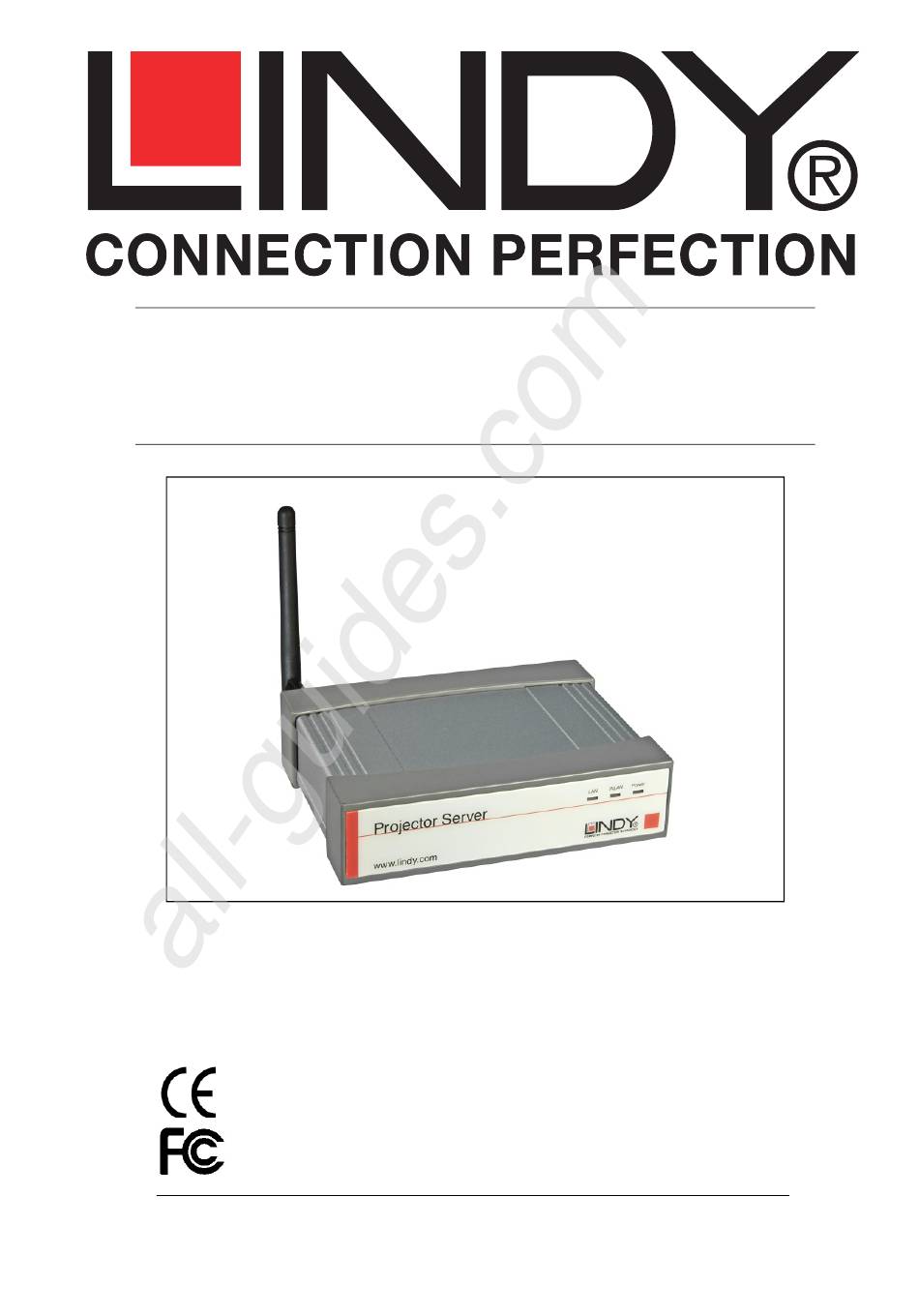

- Page 1 All manuals and user guides at all-guides.com Wireless Projector Server User Manual English LINDY No. 32698 www.LINDY.com For Home and Office Use Tested to Comply with FCC Standards © LINDY ELECTRONICS LIMITED & LINDY-ELEKTRONIK GMBH - FIRST EDITION (FEB 2004)
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Overview ................3 Quick Start ................. 5 Client Utility ..............8 3.1 Starting Program ............. 8 3.2 Login ................... 9 3.3 Buttons Description ............9 3.4 Start/Stop Presentation ..........10 3.5 Open Admin Web Page .......... -
Page 3: Overview
All manuals and user guides at all-guides.com English Manual 1. Overview WPS-ZoomPro is a must-have device for your meeting room! It turns your existing "wired" projector into a "high-end wireless" projector. With the revolutionary Plug-and-Show, 4-to-1 split screen and PDA wireless projection features, WPS makes every of your presentation and meeting efficient and successful. - Page 4 PDA wireless Projection You don't have to bring the laptop for business presentation anymore. Just connect your PDA phone to WPS-ZoomPro through WiFi, and start your professional and stylish presentation right away! Conference control WPS-ZoomPro supports Conference Control function for easily moderating the conference.
-
Page 5: Quick Start
All manuals and user guides at all-guides.com English Manual 2. Quick Start 1) Connect projector VGA cable to WPS-ZoomPro box VGA connector and turn on projector power. 2) Turn on WPS-ZoomPro box. When Projector shows the default menu on the screen as below, it ♦... - Page 6 IP address shown on the left corner of projector screen. 5) Download the client software. Please select the” Windows Vista / XP / 2000” or”Windows Mobile 5.0” and execute the installation program. ♦ After install the program, WPS-ZoomPro shortcut will come out on the PC screen.
- Page 7 All manuals and user guides at all-guides.com English Manual 6) Make sure your personal firewall allows WPS-ZoomPro software to pass through. 7) Enter the LOGIN CODE and You can see the login code on the projector screen ♦ 8) Click the “Play” button to start projection!
-
Page 8: Client Utility
1) Click WPS icon to execute the program. 2) Program start to search for WPS-ZoomPro box automatically, 3) If WPS-ZoomPro box founded then “Login Code” dialog box will be pop up on the PC screen. Searching for WPS-ZoomPro box... -
Page 9: Login
2) You can see the login code shown on the projector screen. 3.3 Buttons Description 1) After login successfully, you will see main UI of WPS-ZoomPro application. 2) Click following buttons to manipulate WPS-ZoomPro Application. Project desktop screen to Full screen or split screen... -
Page 10: Start/Stop Presentation
All manuals and user guides at all-guides.com English Manual Pause projecting Stop projecting Magnifier Server Login Code While projecting in progress, this icon is blinking Function menu Minimize the program Exit the program 3.4 Start/Stop Presentation Click to project desktop (Full screen or split screen) Click to stop presentation. -
Page 11: Open Admin Web Page
All manuals and user guides at all-guides.com English Manual Click to enable the magnifier feature. System will enlarge and playback the image within the red rectangle to full screen in higher frame rate. Ps1. To enable this feature, you need to install Magnifier component first which is stored in the USB token. -
Page 12: Searching Server
All manuals and user guides at all-guides.com English Manual 3.6 Searching Server Click “Search Server” to search for WPS-ZoomPro box. 3.7 Make PnS Token Click “Make WPS Token” to make a USB WPS-ZoomPro Token; please follow the steps with the wizard:... - Page 13 All manuals and user guides at all-guides.com English Manual...
-
Page 14: Magnifier Option
All manuals and user guides at all-guides.com English Manual 3.8 Magnifier Option Click “Magnifier option” to change the aspect ratio of captured video region with magnifier feature. -
Page 15: System Information
Click “Info” to show system information. It includes product model name, IP address and other information. 3.10 WPS for PDA To project your PDA screen with WPS-ZoomPro, please follow the steps: Enable your WiFi and connect to WPS-ZoomPro Open the browser and enter Server IP address to download WPS-ZoomPro client software for PDA version. -
Page 16: Exit Program
English Manual 3.11 Exit Program Click to exit this program. 4. WPS for Mac Client To project your Mac screen with WPS-ZoomPro, please follow the steps: Enable your WiFi and connect to WPS-ZoomPro device Execute WPS-Pro client software for Mac. - Page 17 All manuals and user guides at all-guides.com English Manual Launch WPS-Pro software and enter the login code. Start Projection.
-
Page 18: Web Management
Home Page 1. Make sure your PC connect to WPS-ZoomPro box successfully. 2. Open your browser, it will enter WPS-ZoomPro home page automatically. 3. If not, enter your IP address on the browser, you can see the IP on the projector screen. -
Page 19: Download Software
All manuals and user guides at all-guides.com English Manual Download Software 1. Select “Download software” function. 2. Please select the “Windows Vista / XP / 2000” or”Windows Mobile 5.0” and execute the installation program. 3. Follow Installation Wizard instructions to proceed till the installation process complete. -
Page 20: Conference Control
All manuals and user guides at all-guides.com English Manual Conference Control 1) This function allows you to host a meeting smoothly without projector cable swapping and each participant can show their presentation easily. 2) Select “Conference Control” function. 3) Enter password, the default value is “trainer”, and then press [Login]. - Page 21 All manuals and user guides at all-guides.com English Manual 4) After login, you can see a User List on the screen which indicates all of users connected to WEPRESENT box. 5) There are three columns, “Computer Name”, “Play Control” and “IP Address”.
-
Page 22: Login Web Admin
All manuals and user guides at all-guides.com English Manual Login Web Admin 1. Click [Admin] and then enter password to login web page. 2. The password default value is “admin”. System Status Click [System Status], shows current system status. Model Name: Product model name Versions: 1. -
Page 23: Network Setup
There are many kinds of operating configurations as below. Auto-Configuration Network Setup < > The default setting of the WPS-ZoomPro box is DHCP client. When the WPS-ZoomPro box is connected to a LAN that already has a DHCP server present,... - Page 24 All manuals and user guides at all-guides.com English Manual the WPS-ZoomPro box takes an IP address assigned to it by the server. When the WPS-ZoomPro box is connected to a LAN that does not have a DHCP server, the WPS-ZoomPro box becomes the DHCP server in the network.
-
Page 25: Projection Setup
Projection Setup Click [Projection Setup] button <Resolution>: 1024*768, 1280x768 and 800*600. ♦ <Color Depth>: provide WPS-ZoomPro output with 16bit or 32 bit ♦ color depth. It depends on your PC settings. <Screen Refresh Rate>: This is VGA output refresh rate, provides ♦... -
Page 26: Change Passwords
All manuals and user guides at all-guides.com English Manual Change Passwords Click [Change Password] button, to change password value. <Enter New Password>: enter new password you want to change ♦ for each category. <Confirm New Password>: double confirm new password. ♦... -
Page 27: Firmware Upgrade
2. Click <Browse> to specify file name you want to upgrade. 3. Click <Upgrade> to start. 4. A warning message shown and count down counter on the screen. 5. After a few minutes, a complete message shown on the screen. 6. Restart WPS-ZoomPro box to take effect. -
Page 28: Reboot System
All manuals and user guides at all-guides.com English Manual Warning: Don’t power off WPS-ZoomPro while firmware upgrade in progress, otherwise will cause your Box doesn’t work and have to return device to your vendor for fixing. 5.11 Reboot System Click [Reboot System] button, to restart system <Reboot>: reboot system automatically. -
Page 29: Logout
All manuals and user guides at all-guides.com English Manual 5.12 Logout... - Page 30 Kabeln verwendet werden. LINDY Herstellergarantie LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige Herstellergarantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs. WEEE (Waste of Electrical and Electronic Equipment),...
- Page 31 24.März 2006 an das Entsorgen von Elektro- und Elektronikgeräten über die Hausmülltonne! Diese Geräte müssen den lokalen Sammelsystemen bzw. örtlichen Sammelstellen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernimmt die Gesamtheit der Gerätehersteller. LINDY No 32698 Edition, September 2009 www.lindy.com...
