Advance Tabco NS Series Installation Instructions

TA-90 Drawer Adapter
Contents:
(2) Drawer Angles
(4) Self Tapping Screws
Required Tools:
Drill Motor
1/8" Drill Bit
Open End Wrench or Socket
Step 1:
Turn table upside down.
Step 2:

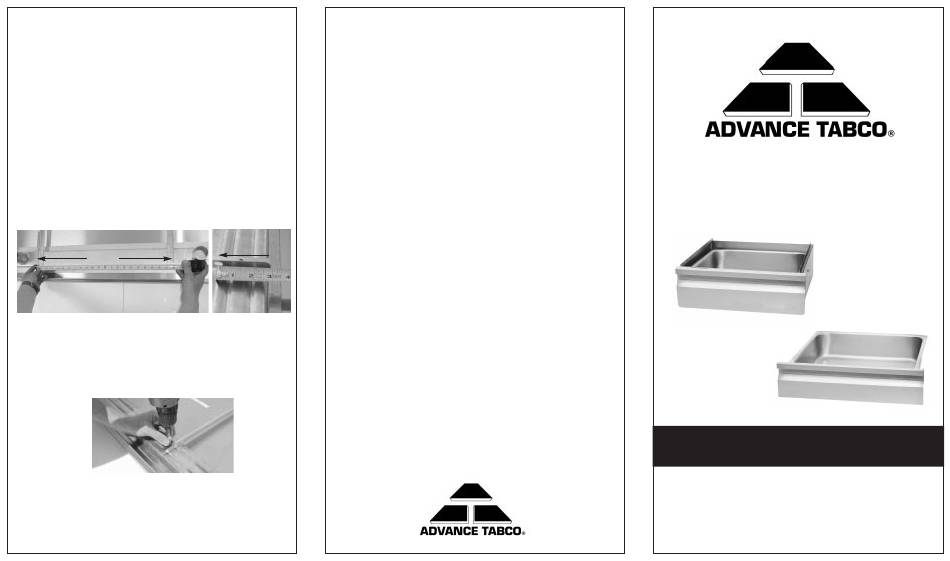

Position drawer angles 21 5/8" O.D. apart, Drawer angle slotted hole
to be located 5" from front edge of table. (Illustration 1) mark holes.
21 5/8"
O.D.
Illustration 1
Step 3:
Drill 1/8" holes at four locations and use self tapping screws
provided to mount angle. (Illustration 2)
Illustration 2
Step 4:
Refer to mounting procedure for the appropriate drawer.
(see inner page)
5"
Edgewood, New York 11717
Installation Instructions
for Drawers
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Drawers manufactured by ADVANCE TABCO are designed and
constructed for storage. Applications may include storage of
flatware, small utensils, etc. ADVANCE TABCO does not
recommend product use for activities employing harsh and active
chemicals. Please consult factory regarding unusual applications.
DRW-3/00
