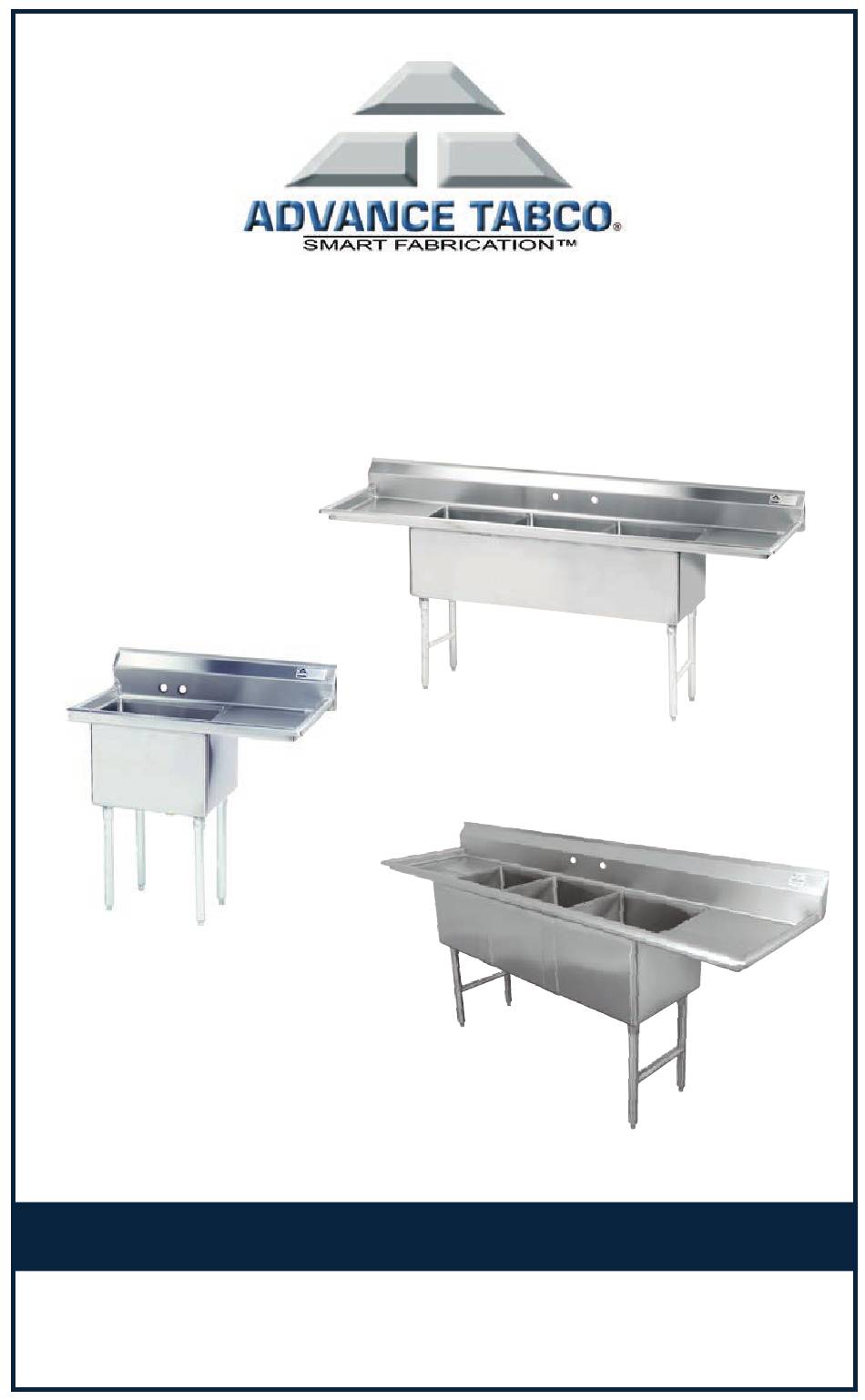

Installation Instructions for
FC, FE & FS SERIES SINKS
FS Series
FE Series
FC Series
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
Sinks manufactured by ADVANCE TABCO
are designed and constructed for the use of
®
liquid containment. Suggested applications include Food Preparation, Manufacturing,
Cooking,
Laboratory and Service and the like. ADVANCE TABCO
does not recommend product use for activities
®
employing harsh and active chemicals. Please consult factory regarding unusual applications.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Advance Tabco FC SERIES
Summary of Contents for Advance Tabco FC SERIES
- Page 1 ® liquid containment. Suggested applications include Food Preparation, Manufacturing, Cooking, Laboratory and Service and the like. ADVANCE TABCO does not recommend product use for activities ® employing harsh and active chemicals. Please consult factory regarding unusual applications.
- Page 2 THIS CARTON CONTAINS: TOOLS NEEDED (Not Included): • Sink Unit • Leg Assembly 5/32” Allen Wrench • Drains (1 For Each Sink Bowl) Step 1 Carefully remove contents of carton/crate. Carefully position sink upside down on a protected surface so you can access the underside of the sink.
- Page 3 Step 3 Carefully turn sink over onto its legs. Check for stability and adjust Bullet Feet as necessary (Figure 3). Figure 3 Drain Installation Details Step 4 Install drain(s) & faucet. Your knowledgeable plumbing contractor is responsible for local code requirements. You can also visit our website at advancetabco.com/support for drain &...
- Page 4 NSF installations require sink unit to be installed to wall or at least 1” of the wall (Figure 5). Figure 5 Silicone Sealer 1” Splash Splash For Additional Assistance, 1-800-645-3166 Please call Customer Service at: EDGEWOOD, NY 11717-8380 © ADVANCE TABCO, MARCH 2016...
