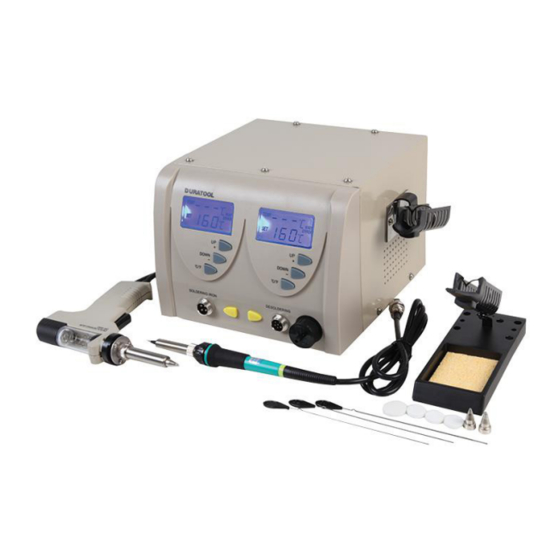

- Page 1 Model: D00674 80W Soldering & Rework Station...
- Page 2 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
- Page 3 OVERVIEW Temperature Indicator Soldering Station Gun/Iron Holder Temperature Controls Power Switches F button Gun/Iron Desolder Gun Holder Gun/Iron Connectors Sponge Soldering Iron APPLICATION & OPERATION Note: The first time you use the soldering irons, they may smoke slightly as the heating element dries out.
- Page 4 SOLDERING Adjusting the temperature • Adjust the temperature for the iron by pressing the UP or DOWN buttons on the left side of the station front panel. • The lower figure is the required temperature, the upper figure shows the actual tip temperature.
- Page 5 • If the difference between the required temperature and that of the iron tip is greater than 10° “WAIT” displays on the LCD. F button • To change from °C to °F press . The display shows °C or °F after the temperature figure.
- Page 6 • Slide a new tip down inside the retainer and refit onto the gun. • Replace and tighten the knurled nut (finger tight only). Caution: Do not over tighten the nut as the element could be damaged. NOTE: The additional tips supplied are sealed with solder when new. When the desoldering iron has reached operating temperature and the solder has melted, pull the trigger on the gun to extract the solder into the waste collector.
- Page 7 TROUBLESHOOTING • “ERROR” is displayed - A loose connection - check connection of the iron to the station. • Tip will not reach set temperature - Defective heating element • Solder will not wet the tip - Tip temperature is too high. Tip is badly oxidized and requires cleaning.
- Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
