Iseo Zero1 Stylos 2 Installation Manual

Stylos 2 All Weather
INSTALLATION GUIDE (UK)
i s e o . c o m
Non contractual document. Subject to change. Cod. 60000STY2CV01.5 - 08/05/2018
Stylos 2 Credential Reader All Weather Inst. guide (GB) - © 2017 Iseo Serrature S.p.a. - www.iseo.com

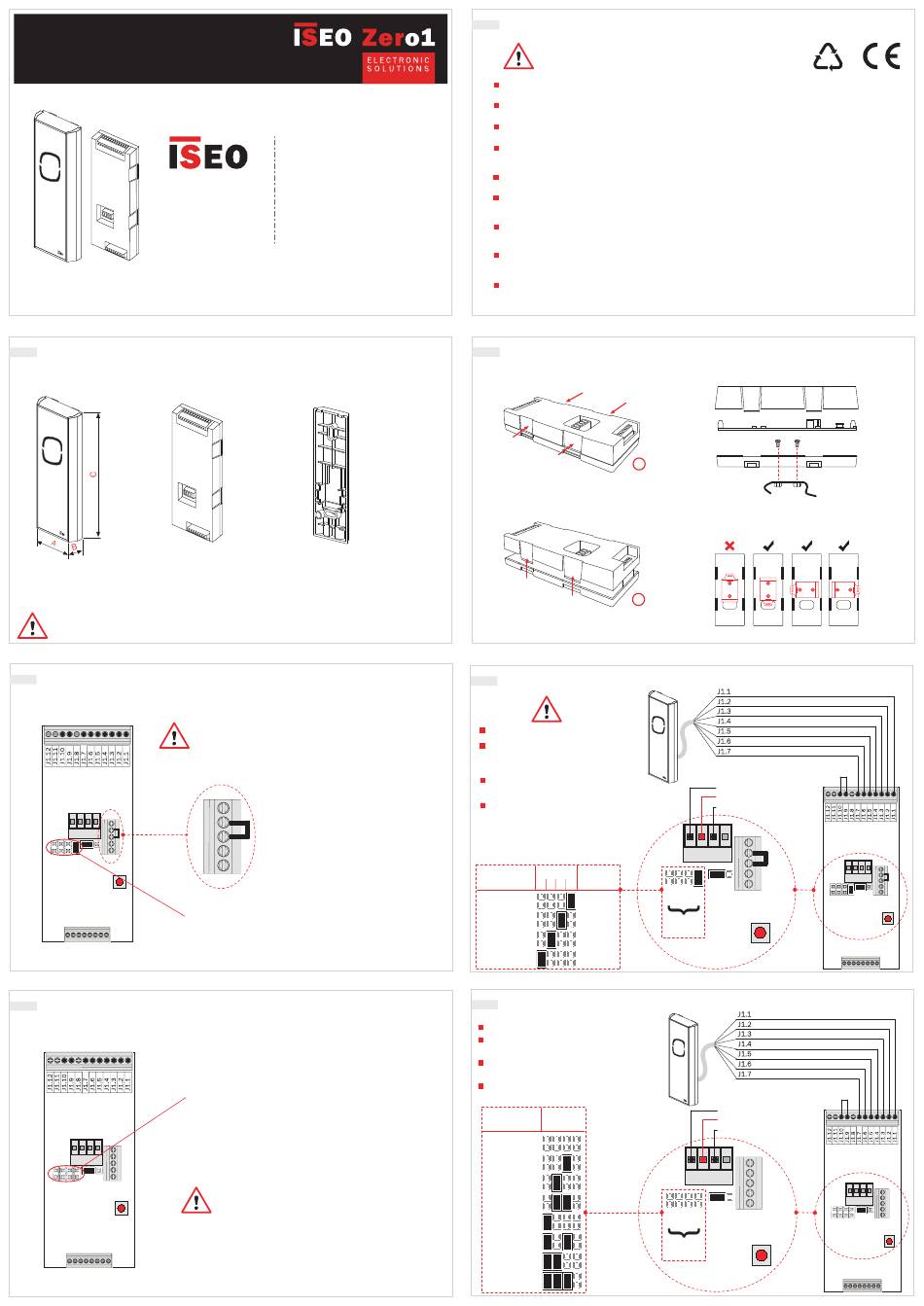

1. VERSIONS AND DIMENSIONS
Credential reader Control unit
(outdoor module) (indoor module)
A = 45mm
A = 47,5mm
B = 19,3mm
B = 17,5mm
C = 113mm
C = 130mm
This guide includes instruction to configure the Stylos as Stand-Alone gate or as
Reader/Validator, connected to Atlas. Refer to the proper section.
3. STAND-ALONE GATE SETTING
Control Unit
Circuit View
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP JP JP
6 4 2 0
S1
Stylos as Stand-Alone gate = Address 0 (Master)
4. READER/VALIDATOR SETTING
Stylos as Reader/Validator = Address 1
Control Unit
Circuit View
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP JP JP
6 4 2 0
S1
For more information about Stylos and Atlas, refer to
the Atlas Installation Manual available at:
http://gamma.iseozero1.com/en/controllo-accessi/
Iseo Serrature s.p.a
®
Via San Girolamo 13
25055 Pisogne (BS)
ITALY
Tel. +39 0364 8821
iseo@iseo.com
ELECTRONIC SUPPORT SERVICE
iseozero1.com
Spacer for wall
installation
A = 40mm
B = 10mm
C = 125mm
Only to set the Stylos 2 All Weather to be used as
Stand-Alone gate, you have to close, by a wire,
holes 2 and 3 of the green connector shown in the
picture.
1
2
Fit the wire when the
3 Stylos is OFF.
4
5
WARNINGS
Read this manual prior to use the device in order to ensure a safe and proper use.
Preserve this manual as future reference.
The installation of the device requires the intervention of qualified staff, adequately trained by ISEO.
The instructions should be carefully followed during installation. These instructions and any maintenance
instructions should be passed on by the installer to the user.
No modifications of any kind are permitted, except for those described in these instructions.
The product must be destined only for the use for which it is expressly designed and therefore as a
credential reader for civil and industrial locations. Any other use is considered improper and dangerous.
The electrical connection must be made according to the constructor's instructions and respecting the
regulations in force.
In the event of a failure and/or poor operation, remove the power supply using the main switch and do not
tamper with it. For all repairs, exclusively contact a technical assistance center authorized by the constructor.
Before performing any cleaning operation on the product, uncouple the appliance from the electrical power
supply network, by opening the system switch.
2. DISASSEMBLING INDOOR MODULE
PUSH
PUSH
1
PULL UP
2
PULL UP
3.1 STAND-ALONE GATE ELECTRICAL CONNECTIONS
Power supply: 8 ÷30 VDC 0.5A
MAX
Minimum/maximum cross-section
of the cables is: 0.20÷1.5 mm²
(24÷15AWG).
Do not extend the cable supplied
with the external device (5 mt).
Install the internal module only in
a protected area.
LEGEND:
S1 = Programming button
JP 0/2/4/6 = Bus Address Jumpers
BUS JP JP JP JP FUNCTION
6 4 2 0
ADDRESS
(Master)
ADDRESS 0 =
(slave)
ADDRESS 2 =
ADDRESS 4 = (slave)
(slave)
ADDRESS 6 =
4.1 READER/VALIDATOR ELECTRICAL CONNECTIONS
Power supply: 8÷30 VDC 0,5A
MAX
Minimum/maximum cross-section of the
cables is: 0,20÷1,5 mm (24÷15 AWG).
Do not extend the cable supplied with the
external device (5 mt.).
Install the internal device only in a protected
area.
BUS
JP 1
ADDRESS
ADDRESS 1 =
ADDRESS 2 =
ADDRESS 3 =
ADDRESS 4 =
ADDRESS 5 =
ADDRESS 6 =
ADDRESS 7 =
ADDRESS 8 =
Side view
Back view
GREEN + GREY + SHIELD (or black)
RED
WHITE
BROWN
YELLOW
PINK
BLUE
LOCKBUS (Communication Channel)
POSITIVE (+) Power Supply
NEGATIVE (-) GND
Control Unit
1
Circuit View
J2. J2. J2. J2.
2
1 2 3 4
3
4
JPS
5
JP JP JP JP
6 4 2 0 JP JP
6 4
S1
BUS
ADDRESS
GREEN + GREY + SHIELD (or black)
RED
WHITE
BROWN
YELLOW
PINK
BLUE
LOCKBUS (Communication Channel)
POSITIVE (+) Power Supply
NEGATIVE (-) GND
Control Unit
1
Circuit View
2
J2. J2. J2. J2.
1 2 3 4
3
4
5
JPS
JP JP JP JP
6 4 2 0 JP JP
6 4
S1
BUS
ADDRESS
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP
2 0
S1
J2. J2. J2. J2.
1 2 3 4
JPS
JP JP
2 0
S1
